Quadro K4000/K5000/K6000 SDI DU-05337-002_v01
|
29
Chapter 03 : Windows–Using the Graphics to SDI Control Panel
Viewing the SDI Connection Status Using the
Topology Viewer
For workstation systems, a topological view of the system is available to let you quickly
check the status of your particular graphics environment.

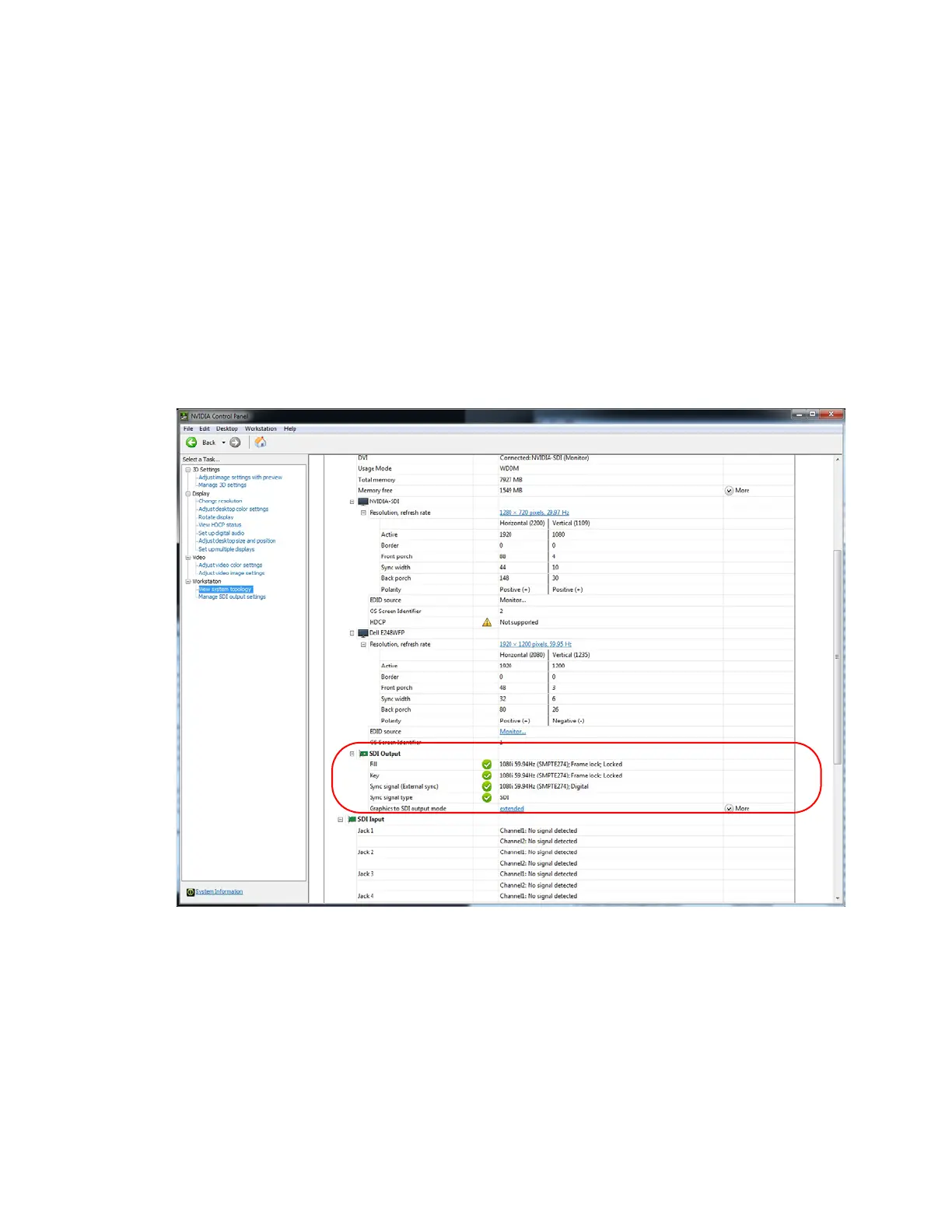

The View System Topology page provides SDI status information for each display, the
graphics card-to-SDI card pairing, and the connection status information for the NVIDIA
Quadro SDI cards. In addition to viewing status information, you can also change
various settings using the View System Topology page.
To view the system topology, go to the NVIDIA Control Panel Select a Task pane, and
under Workstation click View system topology.
The SDI output board appears after the displays connected to the GPU.
