Quadro K4000/K5000/K6000 SDI DU-05337-002_v01
|
39
Chapter 04 : Linux—Using the Graphics to Video Out Control Panel
Understanding the Status Indicators
The Graphics to SDI property page banner indicates the status of the SDI output as well
as the external synchronization signals. Figure 4.1 shows the correlation between the
indicators on the banner and the actual connectors.

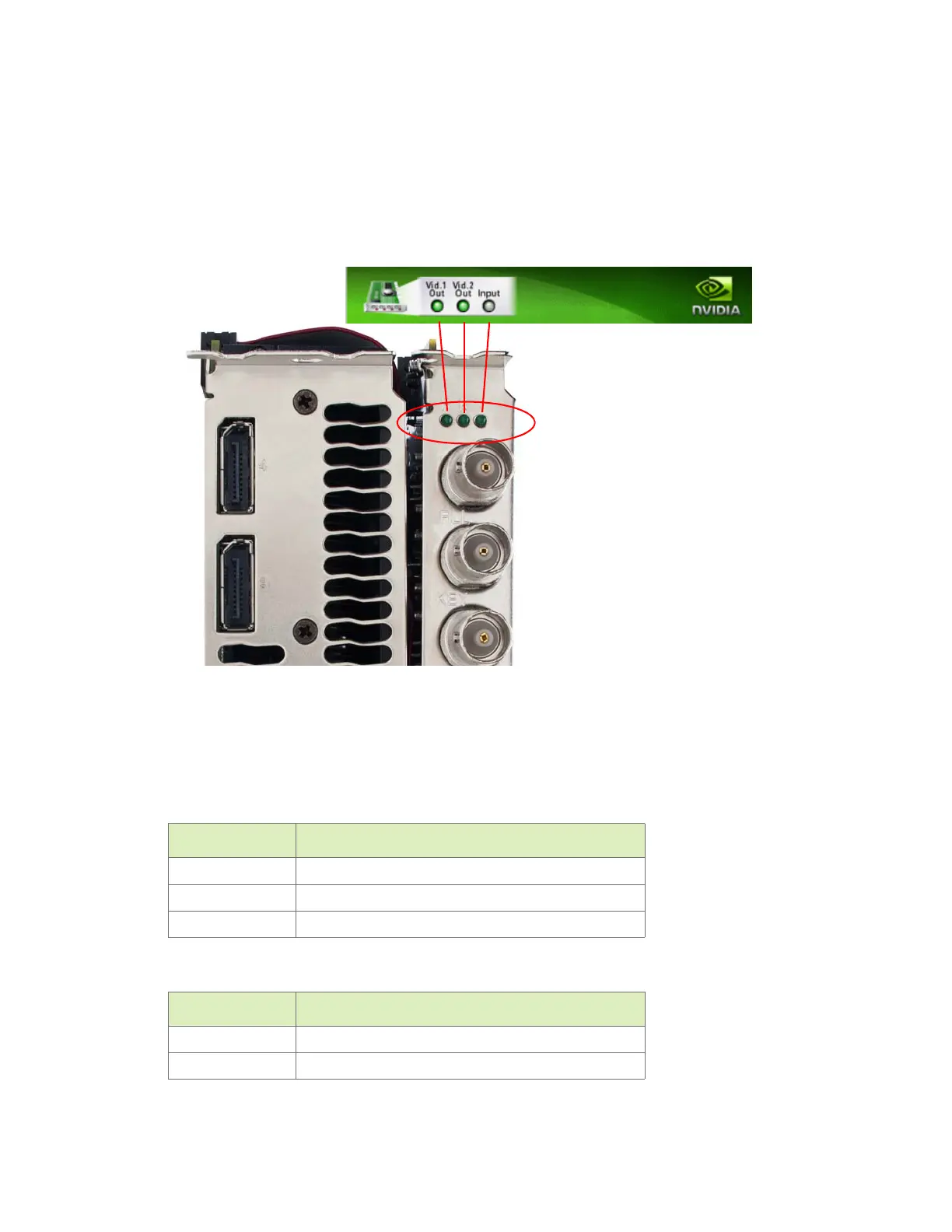

Figure 4.1 Connection Status Indicators
The activity of the LED graphics indicates the signal status as follows:
Vid. 1 Out or Vid. 2 Out
Input
Status Meaning
Off (gray) SDI output is not in use
Steady Green SDI output has power.
Blinking Green SDI output is active.
Status Meaning
Off (gray) SDI input synchronization is disabled.
Blinking Green Valid SDI synchronization signal is detected.
Quadro SDI Connector Bracket LEDs
Graphics to Video Out banner
