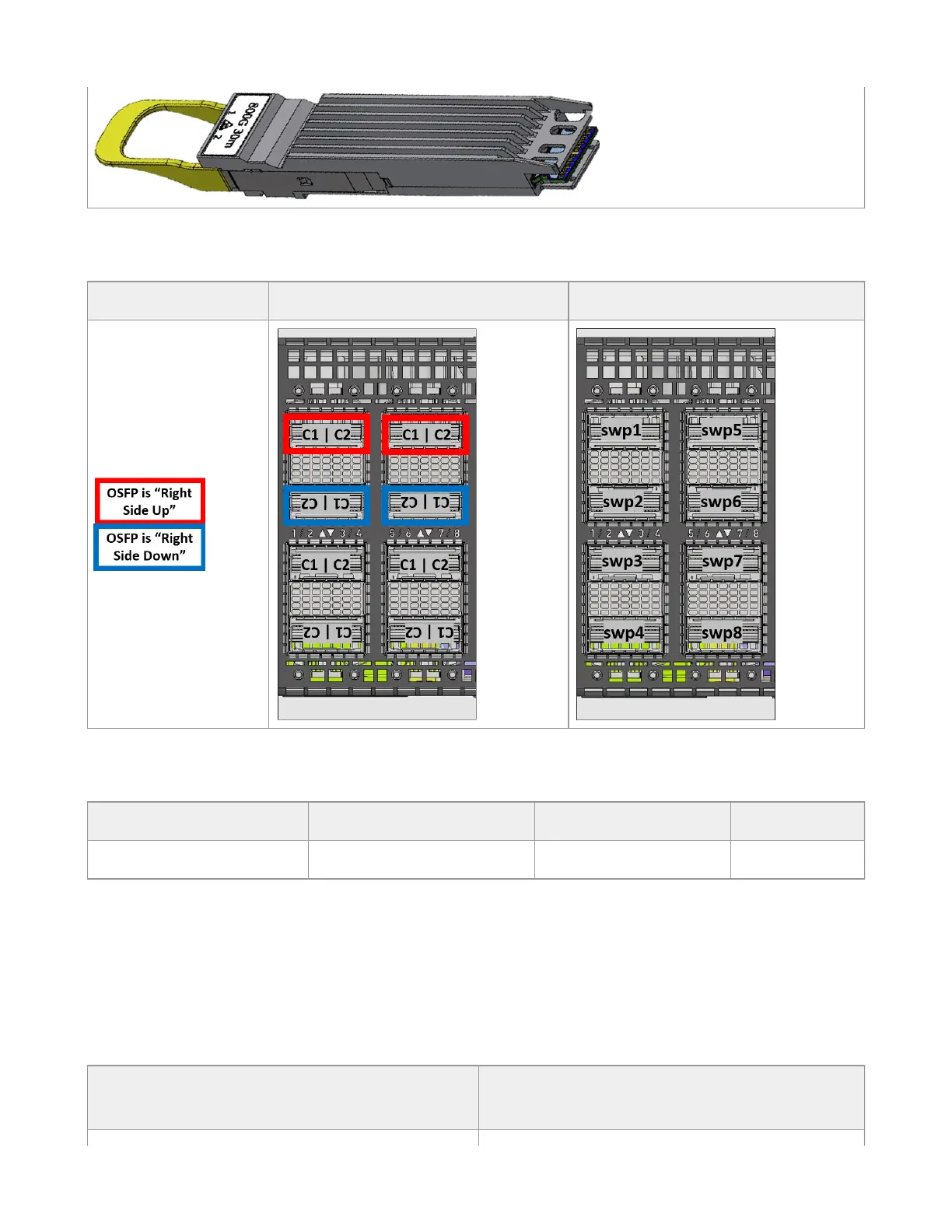

The illustarion below depicts the numbering of the ports in 2x400G and 4x200G modes .
Connector # 800G Port #
Port Configuration Physical Connector NOS Description Examples
800G C1 swp swp1, swp2
Breakout Ports Reflection in NOS
The illustration below shows the first two rows of the system’s OSFP carriers , where the
left part identifies the OSFP cage number , as it is presented by the OS, and the right part
identifies the corresponding subinterafces.
Connector #
2x400G
Connector #
4x200G
