NXP Semiconductors 11
4.5.2.
FRDM-KV11Z board
The FRDM-KV11Z board is a low-cost development tool for the Kinetis V series KV1x MCU family
built upon the Arm Cortex-M0+ processor. The FRDM-KV11Z board hardware is form-factor
compatible with the Arduino R3 pin layout, providing a broad range of expansion board options. The
FRDM-KV11Z platform features OpenSDA, the open-source hardware embedded serial and debug
adapter running an open-source bootloader.
To begin, configure the jumpers on the FRDM-KV11Z Freedom System module properly. Table 10 lists
the specific jumpers and their settings for the FRDM-KV11Z Freedom System module.
Table 8. FRDM-K11Z jumper settings
Jumper Setting
J10
1-2

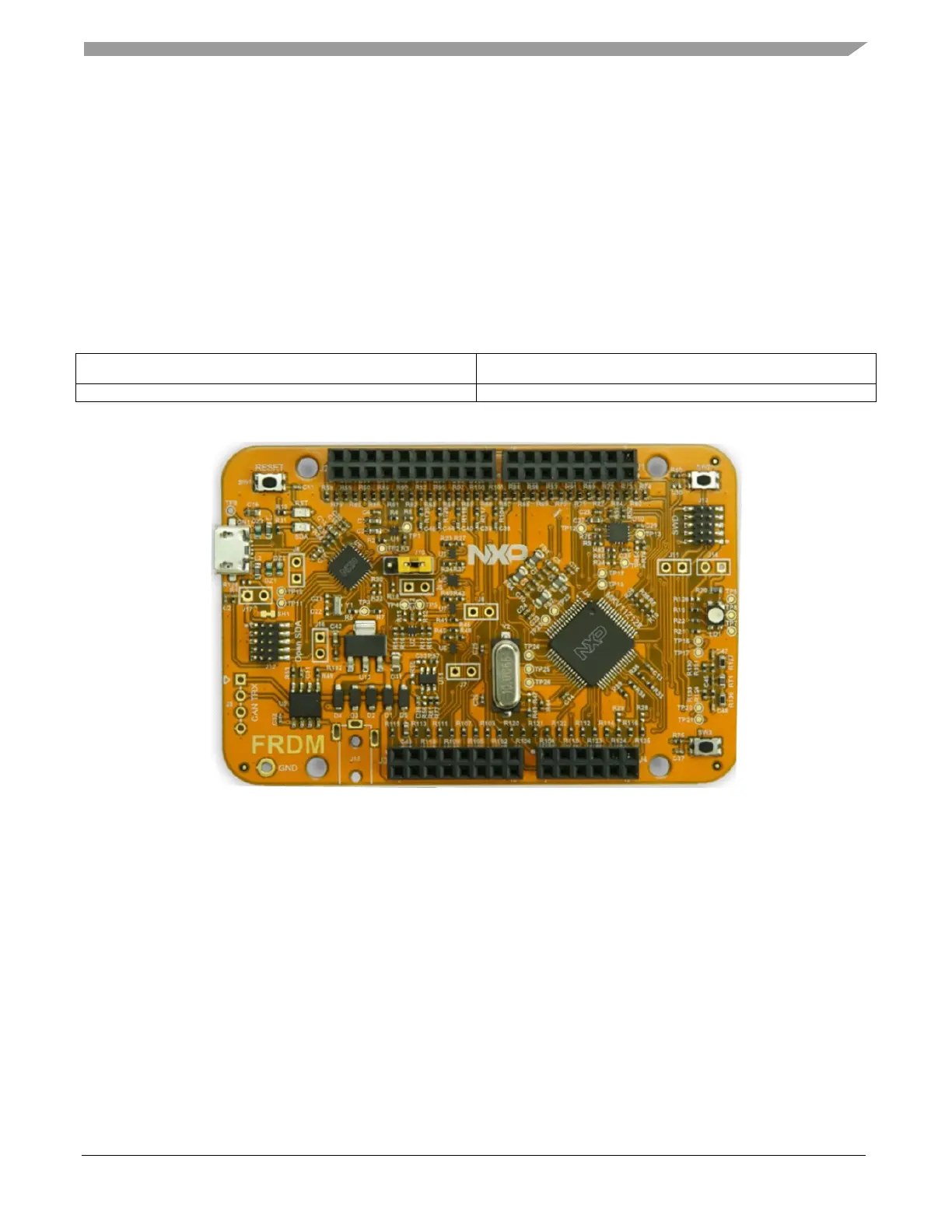

Figure 9. FRDM-KV11Z Freedom development board
