Hardware setup

BLDC Control Demo User's Guide, Rev. 6, 06/2020

4 NXP Semiconductors

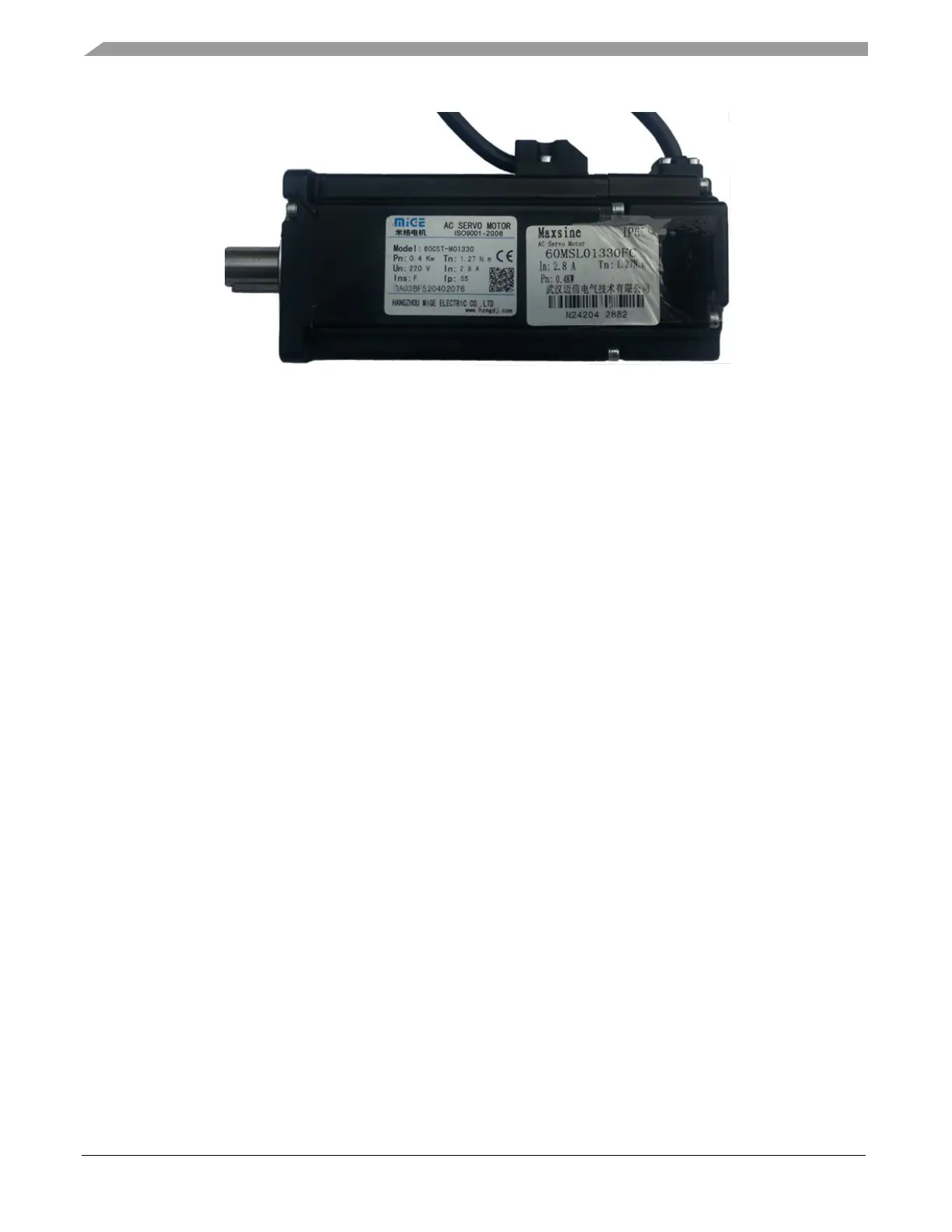

Figure 2. MIGE motor

4.3.

Tower System

To run the BLDC application using the Tower System, these Tower boards are required:

• Tower board with a Kinetis V series MCU (TWR-KV46F150M or TWR-KV58F220M).

• Tower board with Kinetis E series MCU (TWR-KE18F).

• 3-Phase Low-Voltage Motor Control module (see TWR-MC-LV3PH) including the Linix

motor.

• Tower System elevator modules (see TWR-ELEV).
