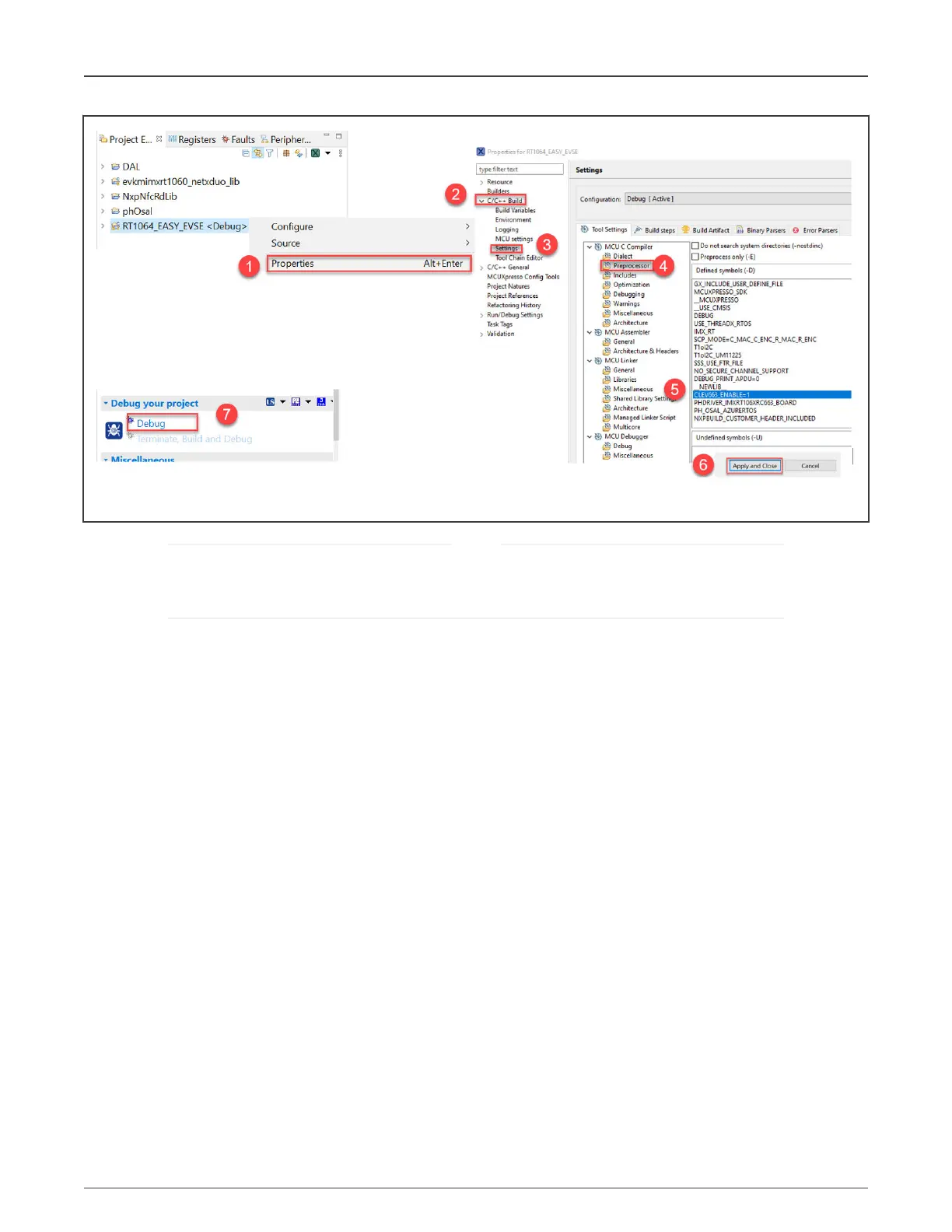

Figure 57. Enabling NFC board macro
If these steps are not followed, the NFC board will not operate. If this macro is set to 1 and the NFC board is
removed, the program may stuck in a loop of initialization routines for NFC, impeding to the main application
to execute.
NOTE
7.7 Assembly and wiring
This section provides instructions on how to assemble and wire the EasyEVSE demo boards.
1. Stack the CLRC6630ARD on top of the OM-SE050. To properly stack the boards together, you can focus on connecting
the CLEV6630ARD J10 pin 2 with the OM-SE050ARD J2 pin 10.
