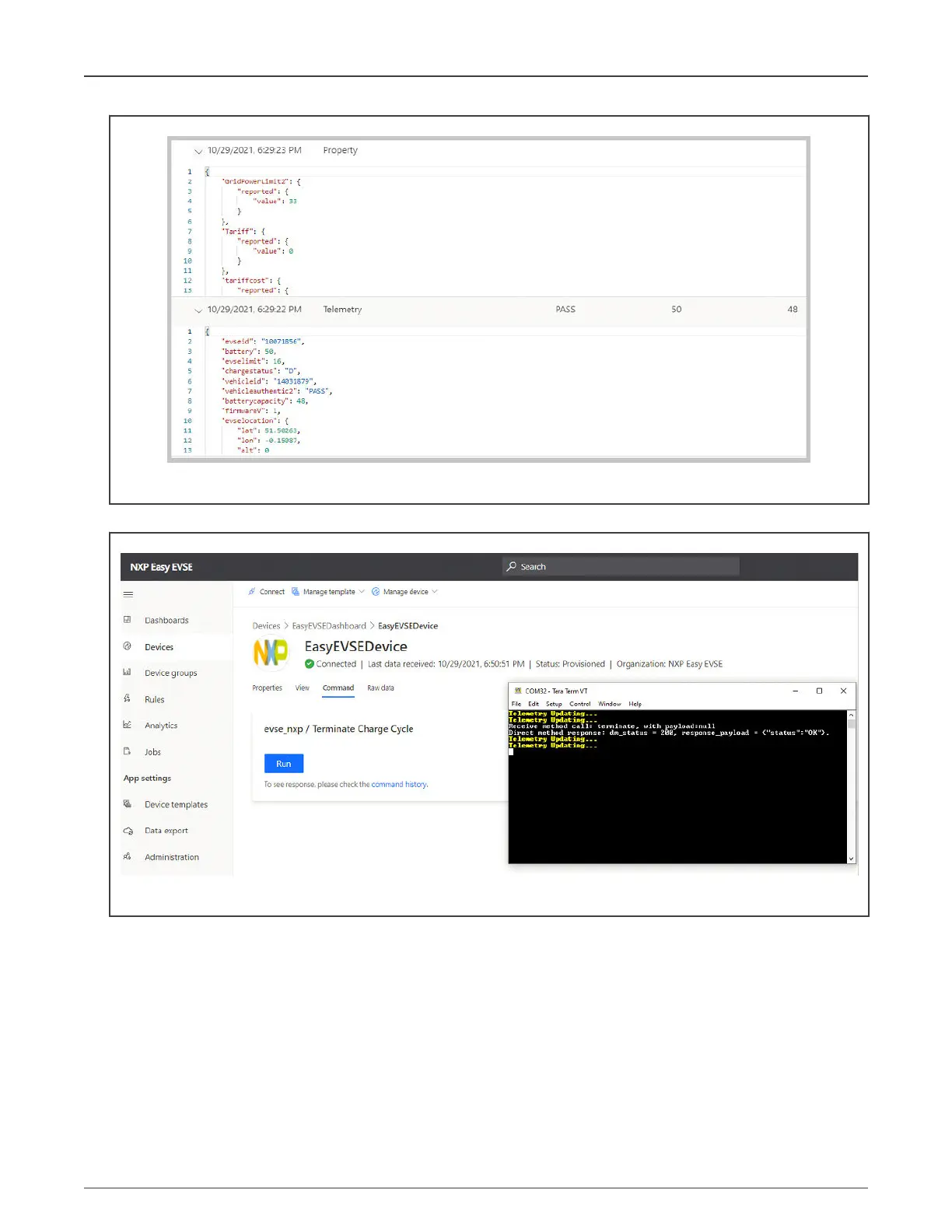

Figure 75. EasyEVSE raw data telemetry
• The "terminate charge" command can be sent to the EasyEVSE.
Figure 76. Terminating charge cycle
After this command is accepted, the charge state is turned off in the GUI "EVSE" Menu and the "Meter" board display shows that
the current charge state is changed to 1.
NXP Semiconductors
System powerup and operation
NXP EasyEVSE EV Charging Station Development Platform User Guide, Rev. 0, 18 March 2022
User Guide 52 / 64
