Invalid setting is when the ventilator reaches its limits mechanically or
physically. In this case users can’t make adjustments from and beyond the
invalid setting adjustment.
Setting confl ict is when the ventilator detects a confl ict in the setting like reaching
the Pmax level. In this case users can make adjustments from and beyond the
confl ict point while the symbol will be displayed during the adjustment.

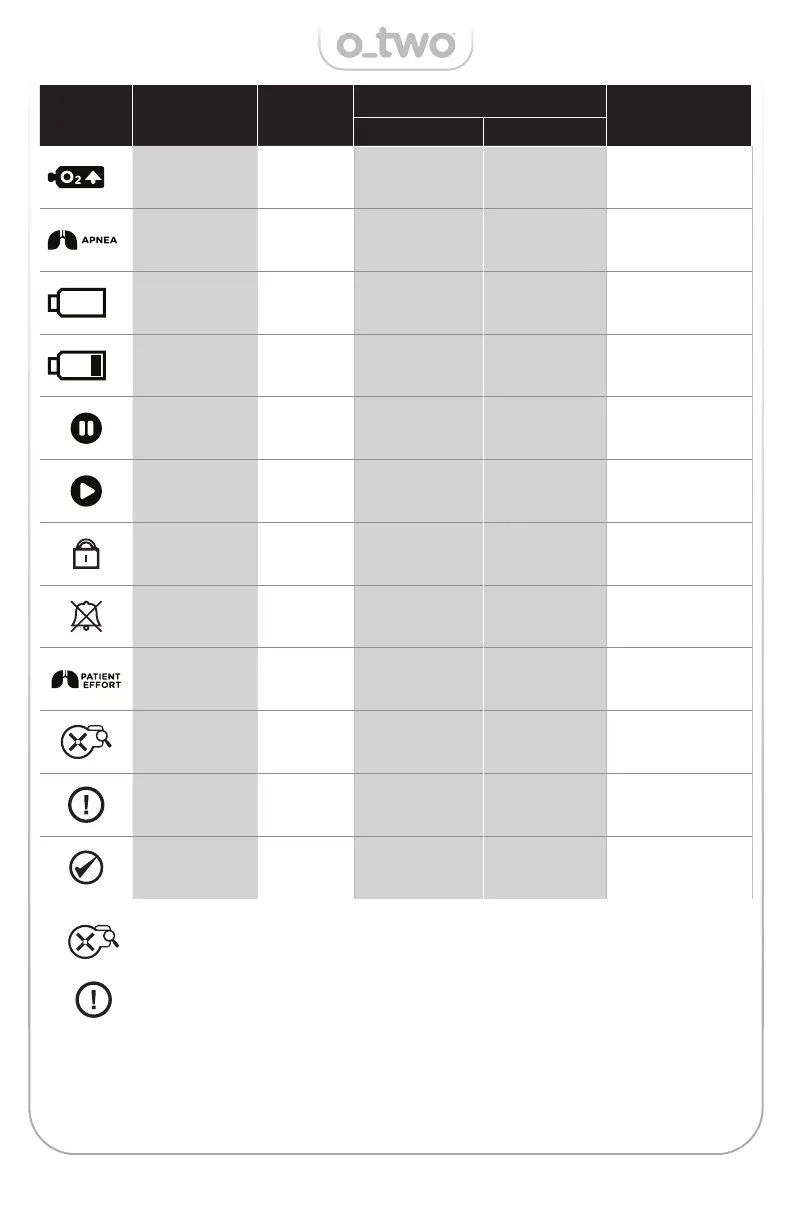

Symbol Name Priority
Visual Alarm
Audible
Alarm
Alarm Symbol Warning LED
High input
pressure ≥ 90
PSI
High Flashing symbol Red
Two bursts with
fi ve pulses
APNEA High Flashing symbol Red
Two bursts with
fi ve pulses
Empty Battery High Flashing symbol Red
Two bursts with
fi ve pulses
Low Battery Low Flashing symbol N /A N/A
Pause N/A Flashing symbol
Yellow every 15
seconds
N/A
Play N/A Flashing symbol N/A N/A
Lock N/A Solid symbol N /A N/A
Alarm Silence N/A Solid symbol N /A N/A
Patient e ort Low
Solid symbol
during
Patient e ort
N/A N /A
Invalid setting -
Refer to manual
N/A
Solid symbol
During invalid
selection
N/A N /A
Setting Confl ict N /A
Solid symbol
During invalid
selection
N/A N /A
Confi rm N /A
Flash symbol
after primary
selection
N/A N /A
