OPERATION
Ballhead Operation (continued)
Note: If a 3/8″-size mounting screw
is needed, use the included 1/4″–3/8″
adapter bushing.
Warning: Some manufacturers’
plates do not meet our
specifications and may not lock
your equipment securely in the
Oben quick-release clamp. Please
test all camera and lens plates
made by manufacturers other
than Oben to ensure compatibility.

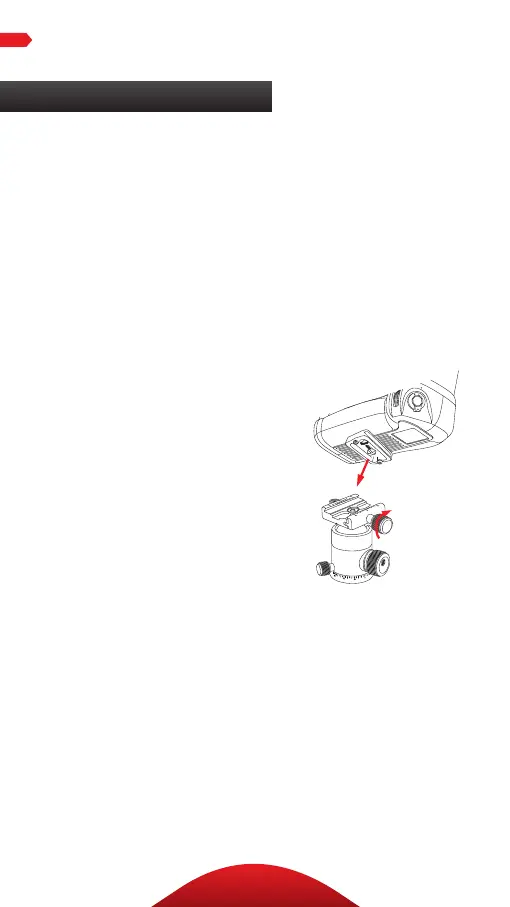

MOUNTING THE CAMERA AND QUICK-
RELEASE PLATE TO THE BALLHEAD
After mounting the quick-release
plate to your camera, make sure
that all knobs on the ballhead are
tightened, except for the quick-
release knob.
1. Turn the quick-release knob
counterclockwise until it stops.
2. Mount the camera to the
ballhead by sliding one edge of
the quick-release plate into the
ballhead. Then lower the other
side until the quick-release
plate is lying flat in the quick-
release clamp.
Note: Make sure the mounting
screw’s D-ring is flush with the
bottom of the plate.
3. Turn the quick-release knob
clockwise to lock the plate.
