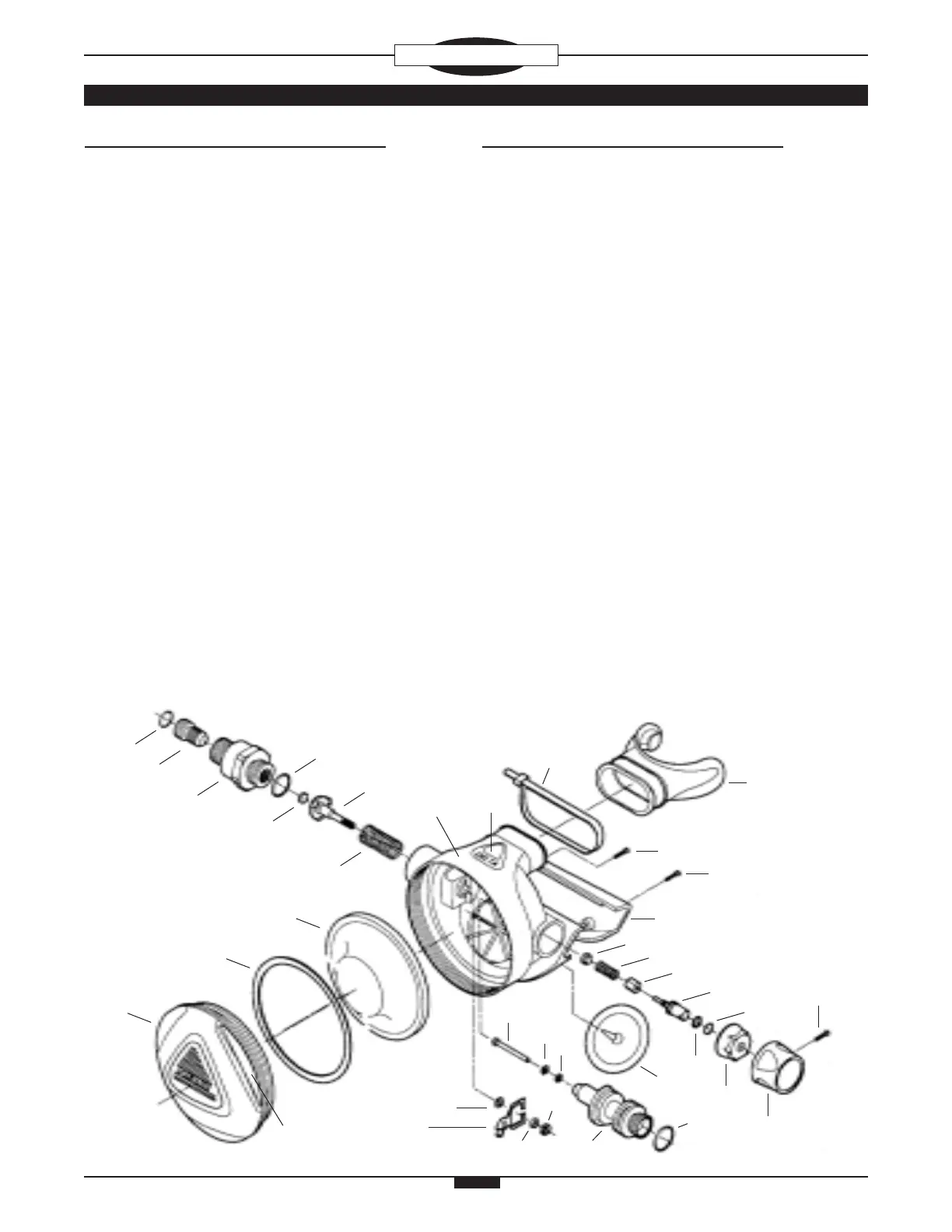

Oceanic DELTA 2 - Parts List and Exploded View Diagram

REGULATORS
DELTA II SECOND STAGE
© 2002 Design 1997
OCEANIC® Product Service Guide
Doc. 12-2223-r03 (10/3/10)
PG-12
R = Revision
1c 6321.01.A Front cover - Blue
6321.07.A Front cover - Black
6321.11.A Front cover - White
6321.13.A Front cover - Yellow (Nitrox)
6321.18.A Front cover - Yellow
6321.19.A Front cover - Green
6321.20.A Front cover - Pink
6321.23.A Front cover - Graphite
6321.30.A Front cover - Purple
2c 4590 Washer - Diaphragm
3b 4575 Diaphragm - Demand
4c 6320.A Housing Assembly
5c 6328 Cover - Exhaust Tee
6b 6326 Valve - Exhaust
7c 4787 (3) Screw - Adj. Knob
8a 1978.10 Tie Wrap
9c 4485.10 Mouthpiece - Orthodontic (Clear)
4485.07 Mouthpiece - Orthodontic (Black)
10a 2.010 O-ring - Orice
11c 4332 Orice
12c 4330 Coupling - Inlet
13b 3.906 O-ring - Coupling
14a 4340 Seat - Poppet
15c 4333 Poppet
16c 4593 Spring - Poppet
17c 4587 Lever Arm
18a 5117 Washer
19b 4335 Spacer
20a 4336 Nut - Lock (Nylon)
21c 4970 Shaft - Balance
22b 4969 Washer - Snap
23a 2.004 O-ring - Balance Shaft
24c 4972 Tube - Adjustment
25b 2.016 O-ring - Adj. Tube
26c 4971 Pad - Spring
27c 4589 Spring - Adjustment
28c 6331 Follower - Piston Spring
29c 6330 Stem - Adjustment)
30b 2.107 O-ring - Stem
31b 5054 Washer - Thrust
32c 6332 Nut - Packing
33c 6324 Knob - Adjustment
34c 6322 Inlet - Top Cover
6322.21 Inlet - Top Cover (Nitrox)
35c 6329.01 Decal - Blue
6329.11 Decal - White
6329.18 Decal - Yellow
6329.19 Decal - Green
6329.20 Decal - Pink
6329.23 Decal - Graphite
6329.30 Decal - Purple
n/s 6325 Protector - Hose
n/s 40.2100.033 Hose - MaxFlo - 33"
n/s 40.2100.036 Hose - MaxFlo - 36"
n/s 40.4690.01 Delta II Color Kit - BL
n/s 40.4690.07 Delta II Color Kit - BK
n/s 40.4690.11 Delta II Color Kit - WH
n/s 40.4690.18 Delta II Color Kit - NY
n/s 40.4690.19 Delta II Color Kit - NG
n/s 40.4690.20 Delta II Color Kit - NP
n/s 40.4690.21 Delta II Color Kit - NITROX
n/s 40.4690.23 Delta II Color Kit - GC
n/s 40.4690.30 Delta II Color Kit - PR
ANNUAL SERVICE PARTS KIT
40.6160 Service Kit (Includes all Bold items)
Dia.
No. Part # Description
Dia.
No. Part # Description
35
10
12
13
14
15
16
34
1
3
6
21
22
23
33
32
26
27
28
29
30
31
7
5
7
7
2
9
8
11
18
17
19
20
24
25
4
