Sauna Heater Manual
5. Sauna Heater Parameters
OSC Series Sauna Heater Parameter
Model Power
(KW)
Voltage
(V)
Phase
(N~)
Current
(A)
Heater
Elements
Sauna
Stone (kg)
Dimensinos
LxWxH (mm)
OCS30 3 230 1 13 2 12-14
410 x 280 x 570
OCS40 4 230/400 1/3 17 2 13-15
OCS45 4.5 230/400 1/3 19/6.5 3 14-16
OCS60 6 230/400 1/3 26.4/8.7 3 16-18
OCS80 8 230/400 1/3 34.8/13 3 18-20
OCS90 9 230/400 1/3 39/14 3 18-20

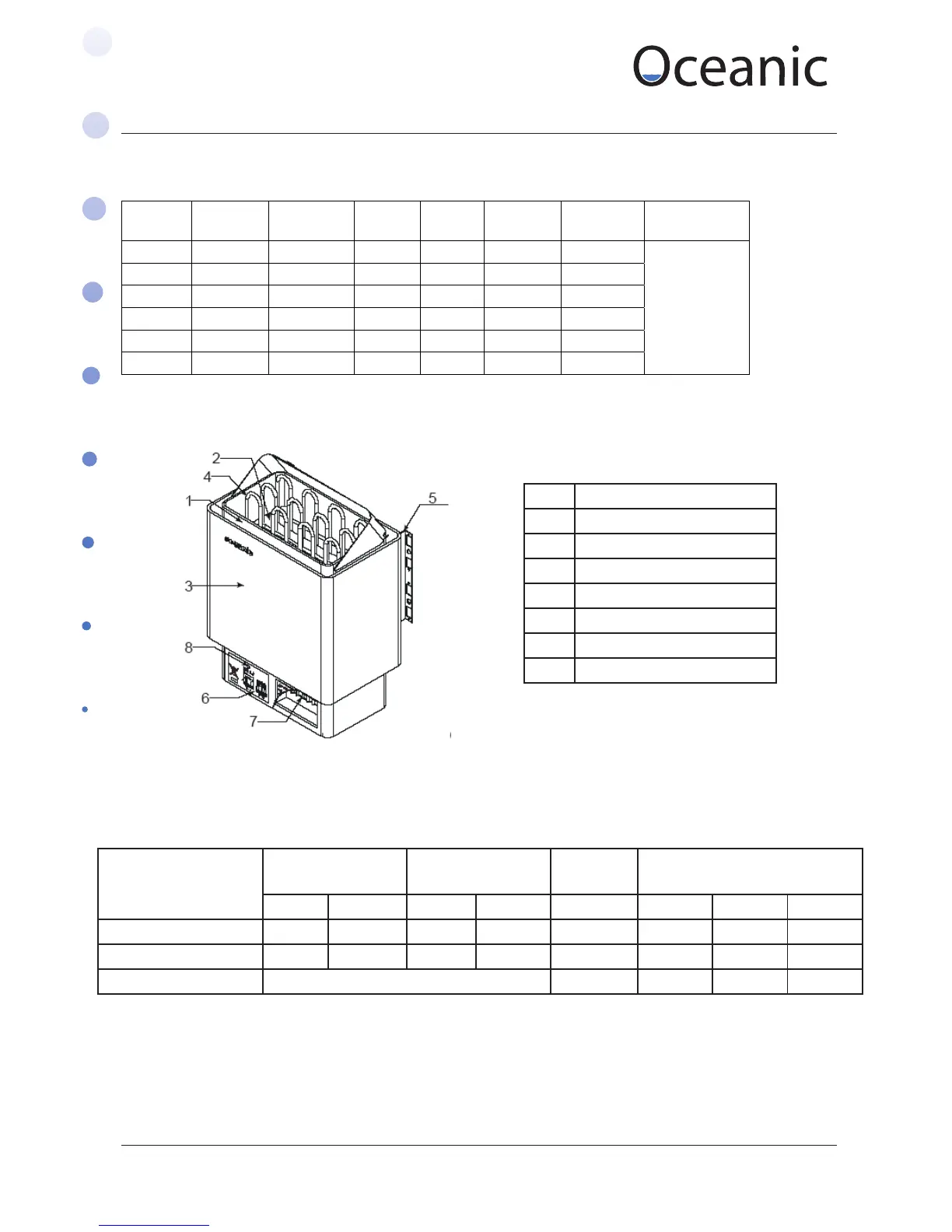

5.1. Sauna Heater Parts Description

No. Parts
1 Inner shell
2 Stone bracket
3 Shell
4 Heat element
5 Fix bracket
6 Cover Panel
7 Terminal
5.2. Controller parameters
Model Input Output Load
power
Size (mm)
1N~ 3N~ 1N~ 3N~ (Kw) L W H
OCSB Control box 230V 400v 230V 400v 2.5~8kw 310 260 70
OCSB Control box 400v 400v 9kw 310 260 70
OCSB Keypad Voltage:DC5V 2.5~20kw 150 92 22
