Sauna Heater Manual
5.6. Control Box Frame and Parts

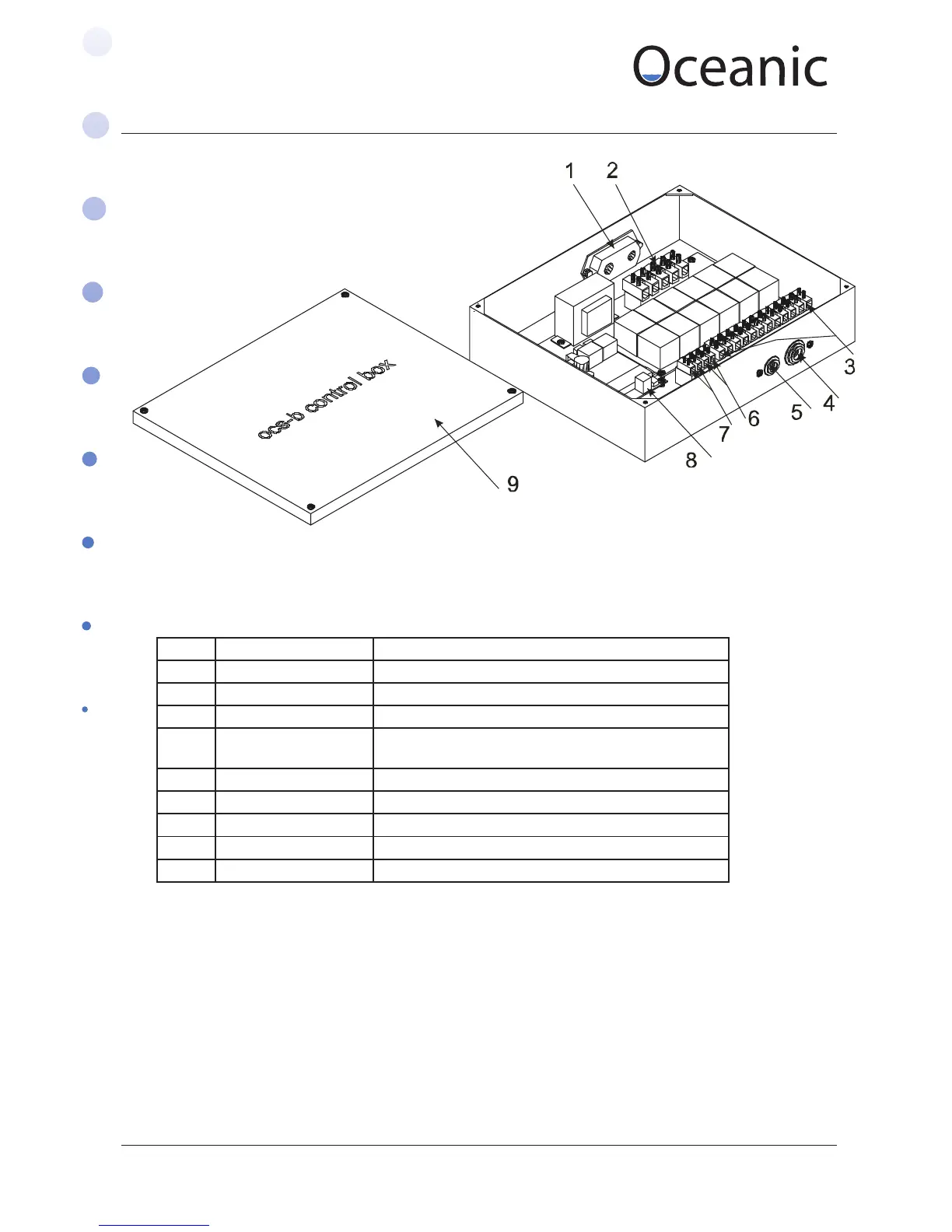

Control box instruction
No. Description Function instruction
1 Wire anchorage Route of wire entry and fasten wires
2 terminal Connect to the power supply
3 Terminal Connect to heater
4 Heater ,light and fan
output
Outlet of wires to heater ,light and fan and fasten wires
5 Control cable entry The entry of control cable
6 Light terminal Connect to light wire
7 Fan terminal Connect to fan wire
8 Control panel terminal Connect to control cable
9 Cover cover
