Oceanic PROPLUS X - Assembly Drawing

Doc. 12-7959-r01 (8/19/20)
4
© Pelagic (2020)

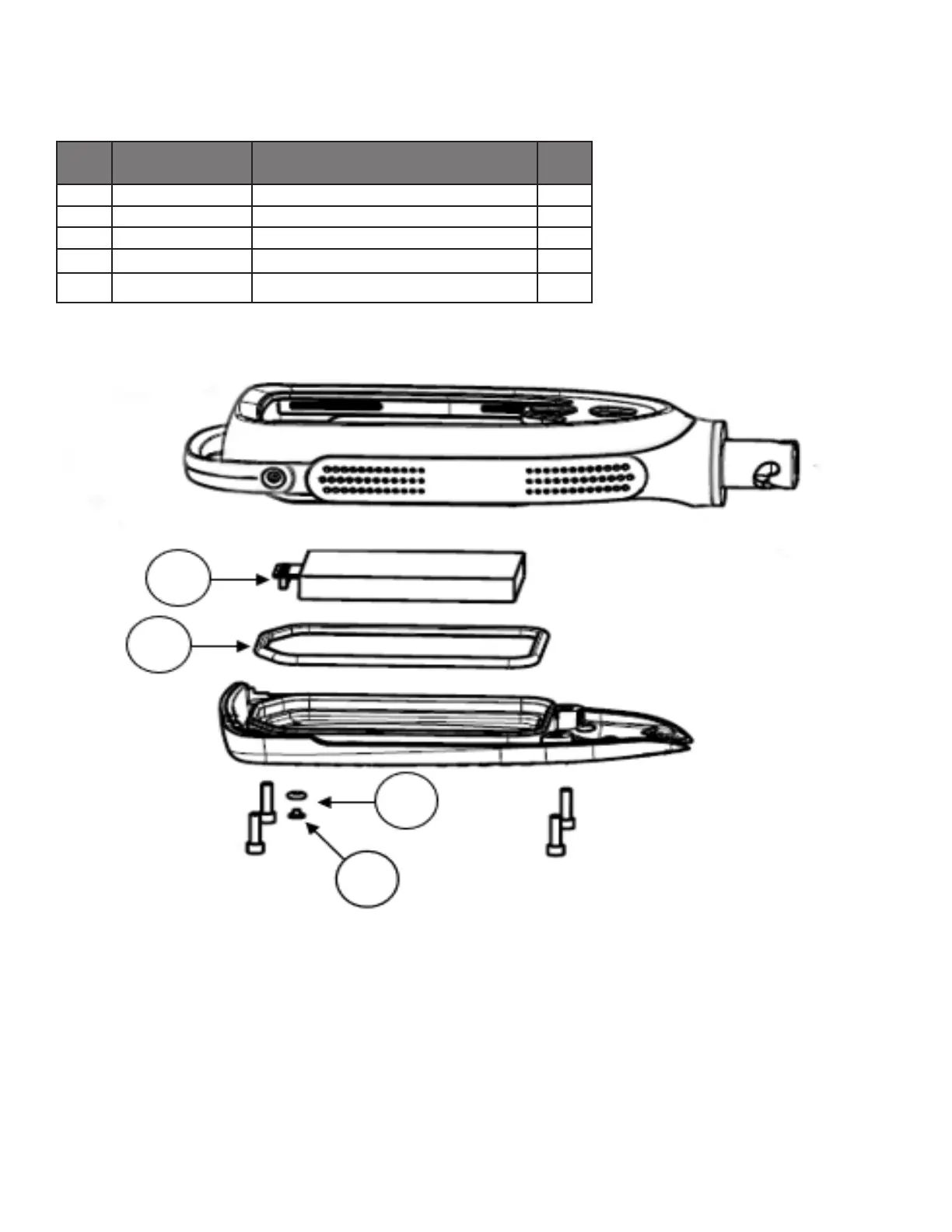

ASSEMBLY DRAWING
ITEM OCEANIC PART
#
DESCRIPTION QTY.
1 - BATTERY, PPX 1
2 - O-RING, BATTERY COVER, PPX 1
3 - O-RING 1
4 - PLUG, OVER PRESSURE
1
N/S 04.6175.97
Battery Kit, PPX (includes items 1-4) 1
N/S = Not Shown
