CAUTION
To prevent damage resulting from static discharge, the
individual and work station must be grounded when
handling any electronic components.
CAUTION
DO NOT attempt to open the ProPlus X before reading
these instructions completely.
NOTE
Protect the lens and nish of the ProPlus X by working on
a clean padded surface.
1. Unscrew the battery retaining screws by turning
counterclockwise (using an allen driver), as shown (Fig. 1).
2. Remove the battery cover (Fig. 2). Inspect for any signs of
damage, discard if found.
3. Carefully, press the over-pressure plug and O-ring out of the
cavity in the battery cover using a non-marking tool (Fig. 3,
4). DO NOT use metal tools.
DISASSEMBLY

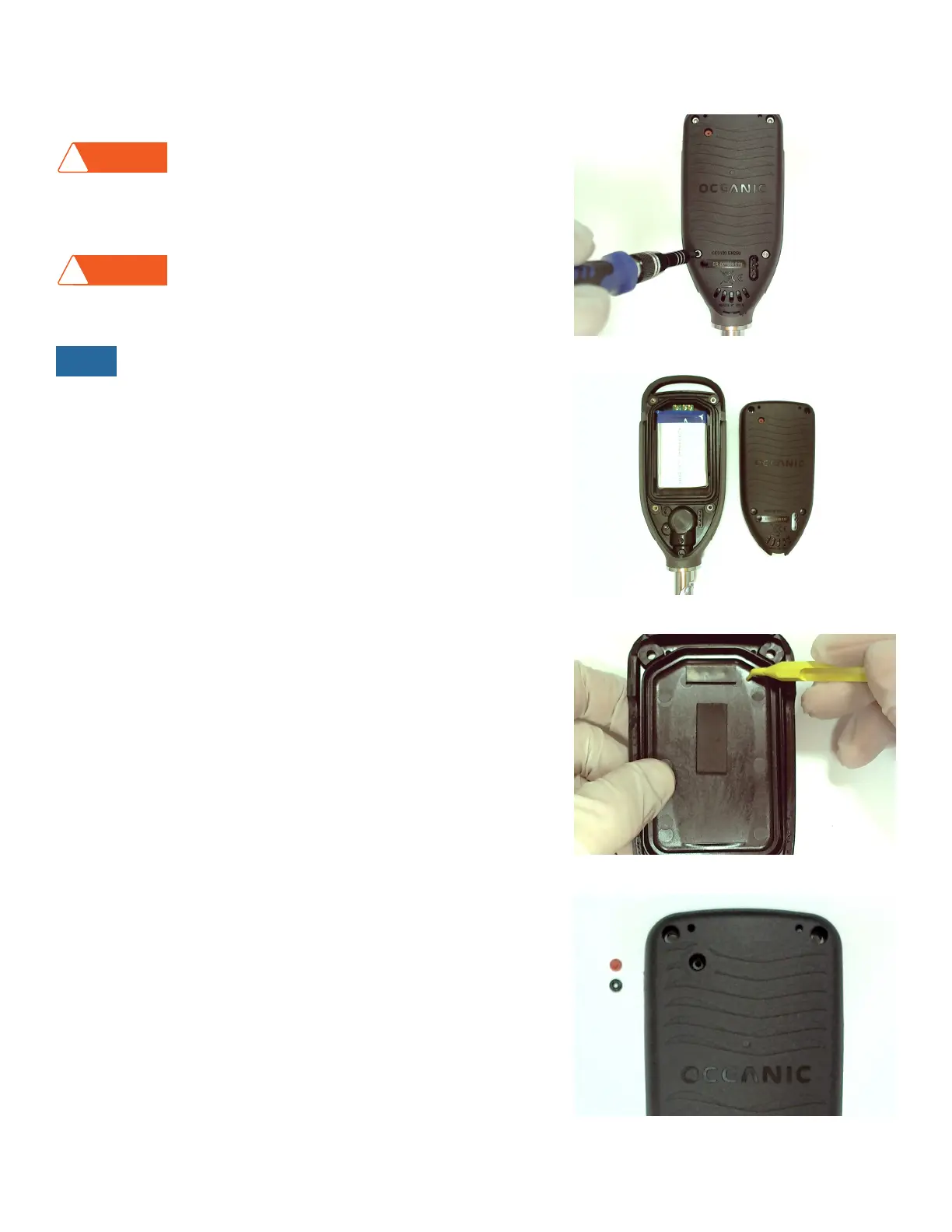

Fig. 1
Fig. 2
Fig. 3
Fig. 4
