4. Evenly seat the battery cover onto the case assembly (Fig. 5).
5. Install the battery cover screws (Fig. 6). DO NOT overtighten.
6. Carefully press the over-pressure plug and O-ring into the
cavity of the battery cover, as shown (Fig. 7, 8).
!
CAUTION
The O-ring installs under the over-pressure plug. The
plug and O-ring need to be fully seated to maintain water
integrity of the ProPlus X assembly.

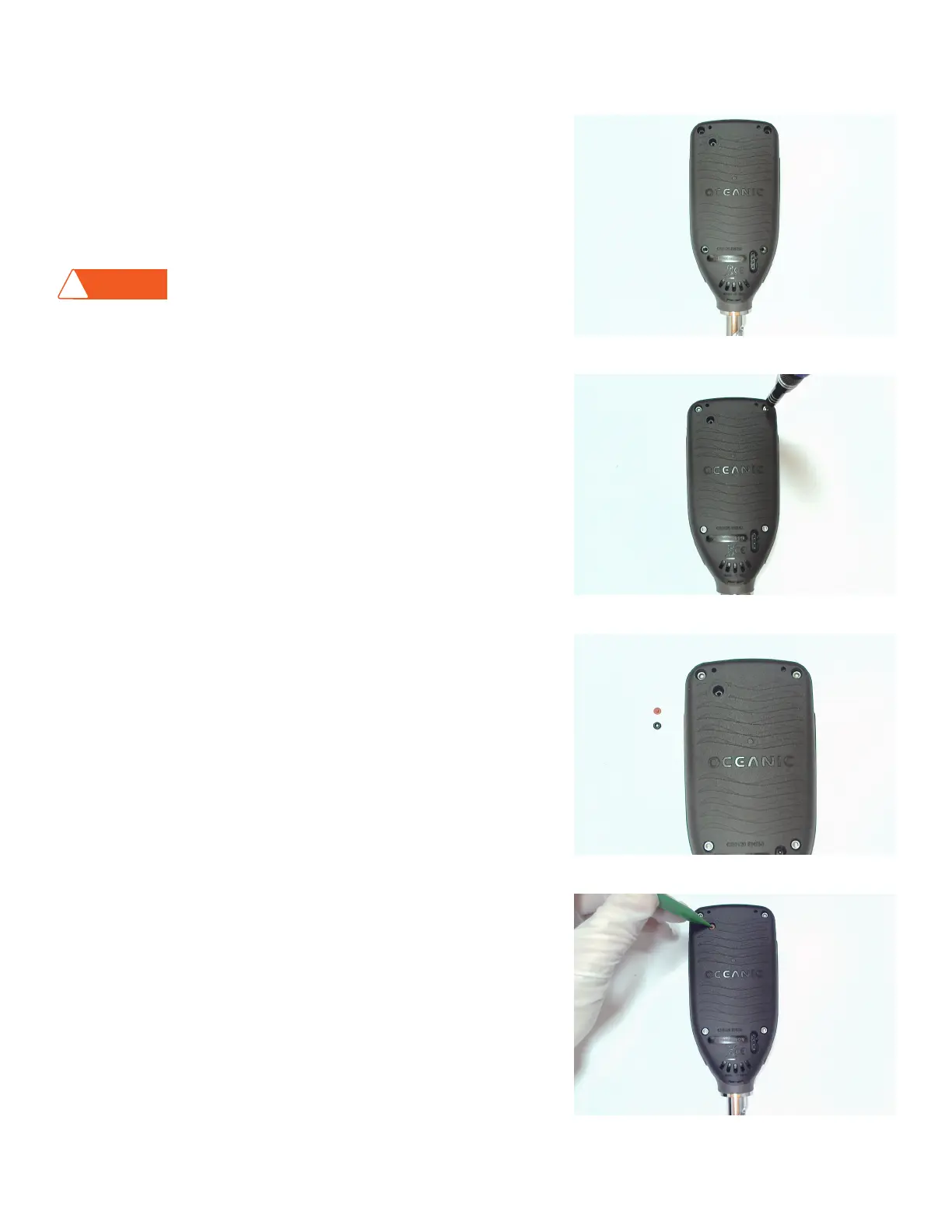

Fig. 5
Fig. 6
Fig. 7
Fig. 8
