3.ENGINE
3-3

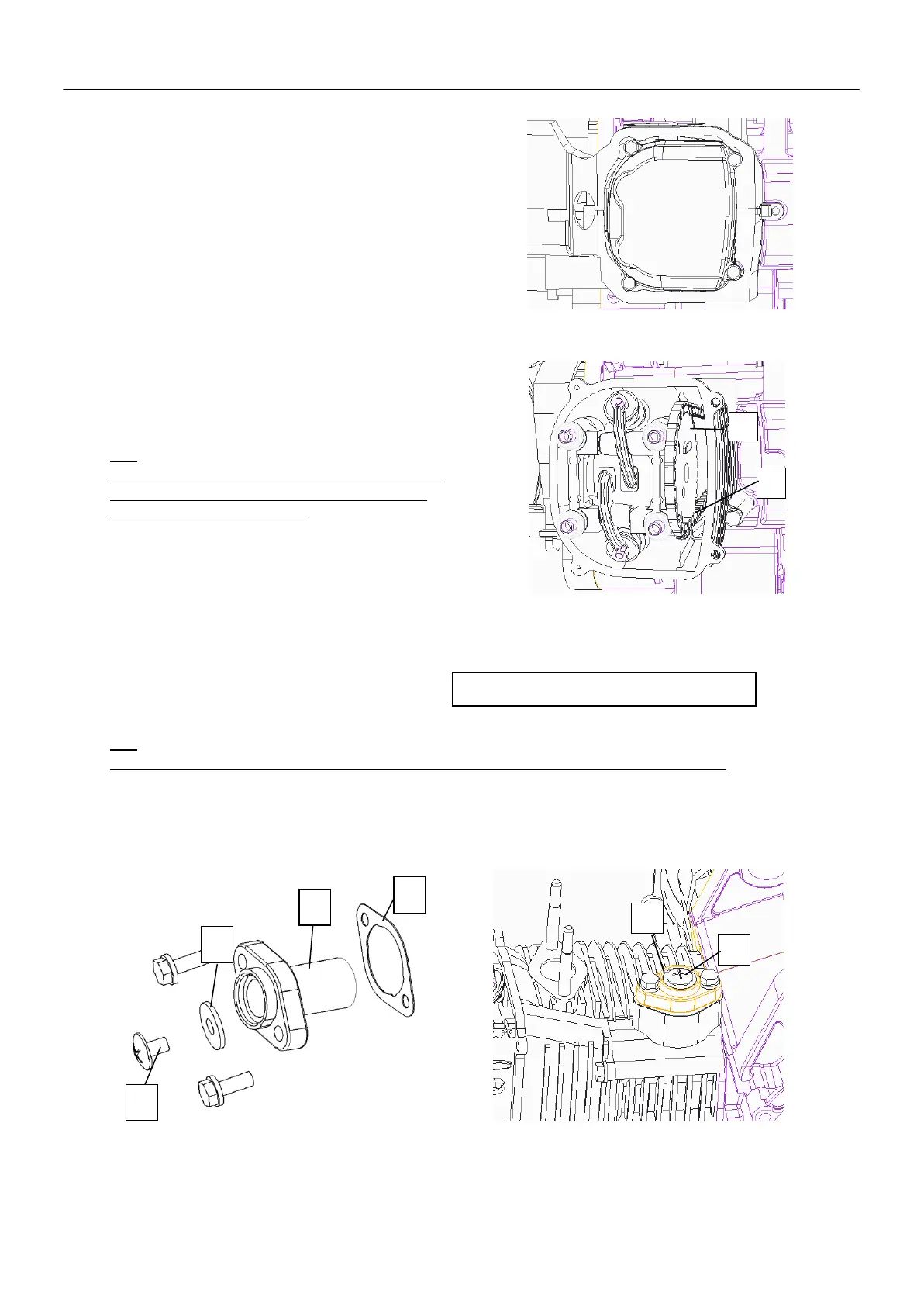

INSTALLING THE CYLINDER HEAD
1.Install：
·Dowel pins
·Cylinder head O-ring
2.Install：
Cylinder head
3.Install：
·Cylinder head top cover“1”
·Washers
·Cylinder head nuts
·Cylinder head bolts
·Cylinder bolts
4.Tighten：
·Cylinder bolt
·Cylinder head bolts
·Cylinder head nuts
TIP
Tighten the cylinder head bolt，nuts and cylinder
bolts in the proper tightening sequence as show
and torque them in two stages.
5.Install：
·Camshaft sprocket “1”
·Timing chain“2”
NOTICE
Do not turn the crankshaft when installing the camshaft sprocket to avoid damage or improper valve timing.
6.Install：
·Timing chain tensioner gasket“3”
·Timing chain tensioner“2”
TIP
To push in the timing chain tensioner rod，release the lock by pushing in the one-way cam“6”
7.Install：
·Timing chain tensioner cap bolt“1”
·O -ring“4”
1
2
Timing chain tensioner bolt 6-10N.m
1
3
4
2
2
1
