11.ELECTRICAL SYSTEM
11-2

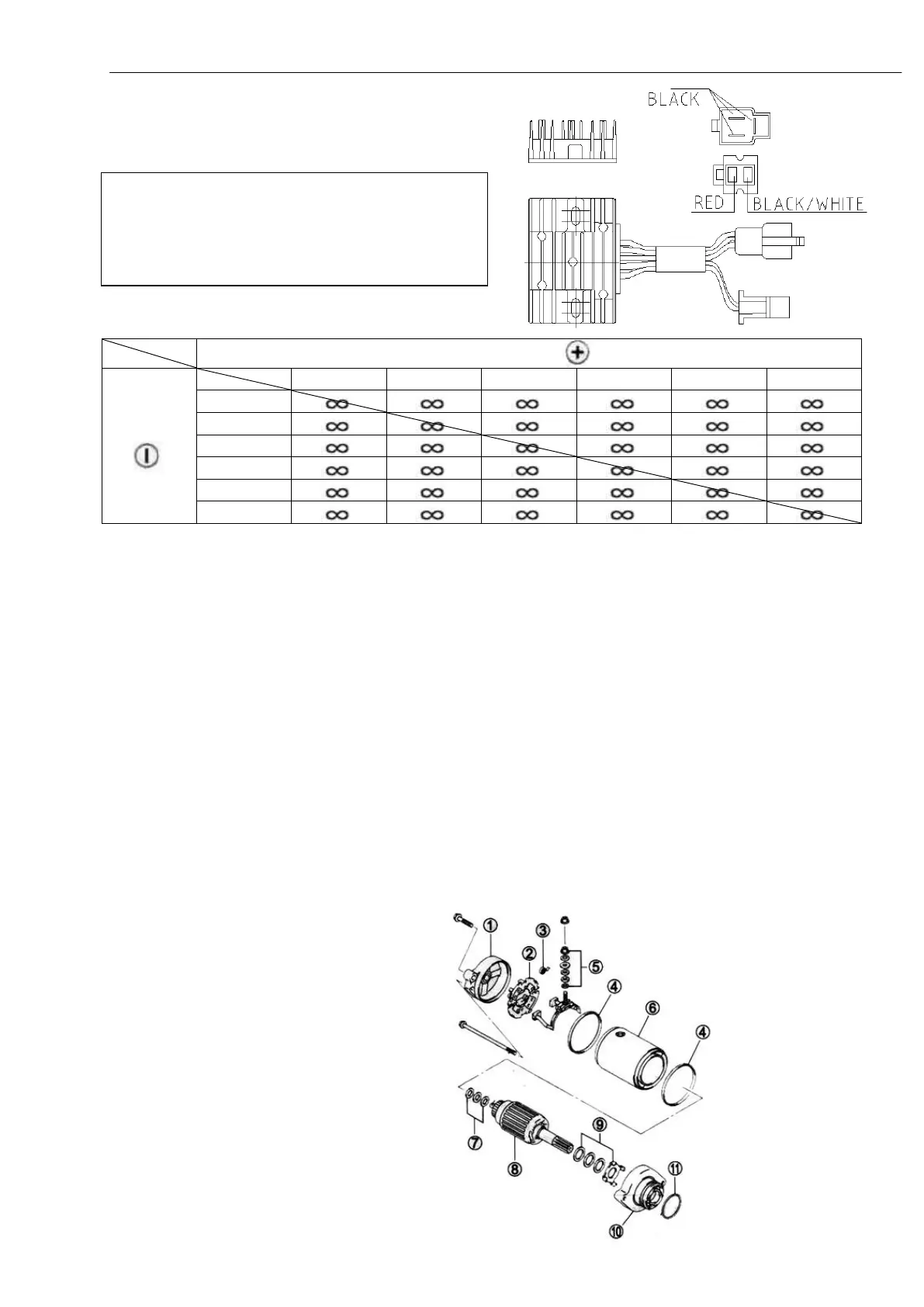

REGULATOR/RECTIFIER
Measure the resistance between terminals with multimeter.
If the resistance is not within the range of specified values,
replace the regulator / rectifier.
NOTE:
If the probe is not connected and the multi meter
reading is lower than 1.4V, replace the multi meter
battery.
Red
B/W
Black
Black
Black
B/W
Red
ground
Black
Black
Black
B/W
Red
ground
STARTING SYSTEM
STARTER MOTOR
1、Bracket
2、Brush holder
3、Brush spring
4、O-Ring
5、Washer
6、Motor housing
7、Washer
8、Armature coil
9、Washer supporting tools
10、Inner bracket
11、O-Ring
