OEC COMPACT 7600 Series - Page 9

Page 1 of 1
For Reference Only

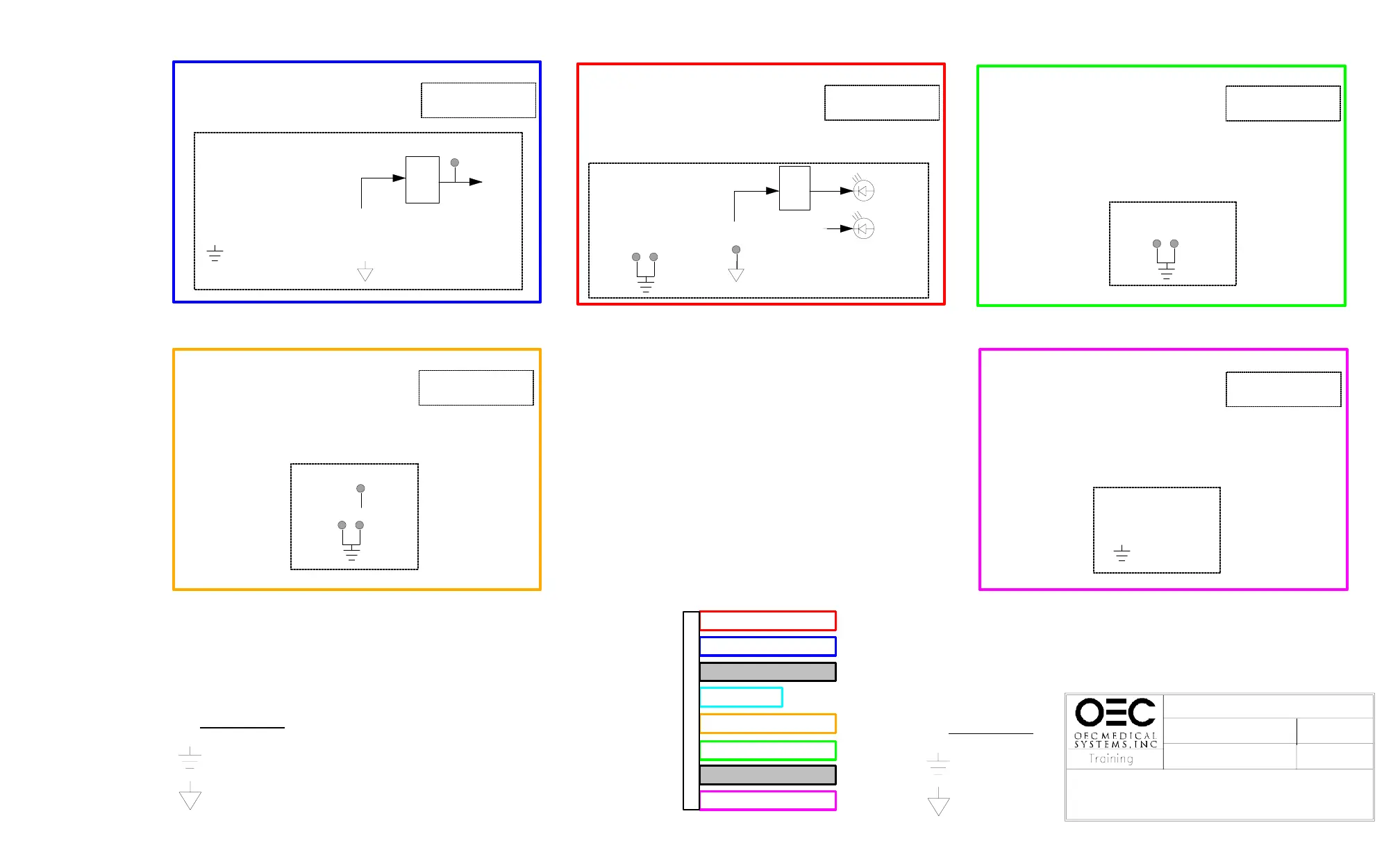

CONTROL RACK BOARDS
3/7/97
CRACK_S.DS4
SERIES 7600
POWER & FUNCTIONAL DESCRIPTION
+5V (ST1-1A)
+16V (ST1-3A)
MP1
MP2
+5VS (ST1-5A)
GND
B100 BOARD
1. Control Panel Interface
2. kV Control Logic
3. mA Control Logic
4. II Mag Mode Control
5. Fluoro & Film Mode Control Logic
B64 BOARD
B101 BOARD
B102 BOARD
B143 BOARD
B0001 MOTHER BOARD
FREE SLOT
FREE SLOT
B100 BOARD
B64 BOARD
B104 BOARD
B102 BOARD
B101 BOARD
B143 BOARD
ST1ST1ST9ST1ST1ST1
+16VS (X1-4A)
+5VS (X1-5A)
GNDS (X1-31A)
+
16V (X1-3A)
GND (X1-32A)
1. kV Control Logic
2. kV Display Control
+5V (ST1-A1)
+16V (ST1-A3)
MP1
MP2
GND
1. Iris Control
2. Fluoro Exposure Time Control
3. Fluoro Beep Control
+5V (ST1-A1)
+16V
MP1
MP2
MP3
GND
1. Film Exposure Time Control
+16V (X1-27A)
+24V (X2-5)
GND (X1-32A)
1. mA Control Logic
MP3
GNDS
D41
-5V
Reg
U16
D42
Green
Green
+12V
Reg
U26
+12V
MP3
8
5
12
= Chassis GND
= Isolated GND
GND NOTE:
= Chassis GND
= Isolated GND
GND NOTE:
NOTES:
All ECO Revs
All ECO Revs
All ECO Revs
ECO Revs 6E027
or higher only
ECO Revs 6E030
or higher only
