OHAUS RANGER COUNT 3000 User Manual

Ethernet Interface EN-1
INTRODUCTION
This Ethernet interface kit is for use with the Ranger 3000, Ranger Count 3000 and Valor 7000
scales.
KIT CONTENTS
 Ethernet PC Board
 Screws (4)
 Instruction Manual
 Cable
INTERFACE INSTALLATION

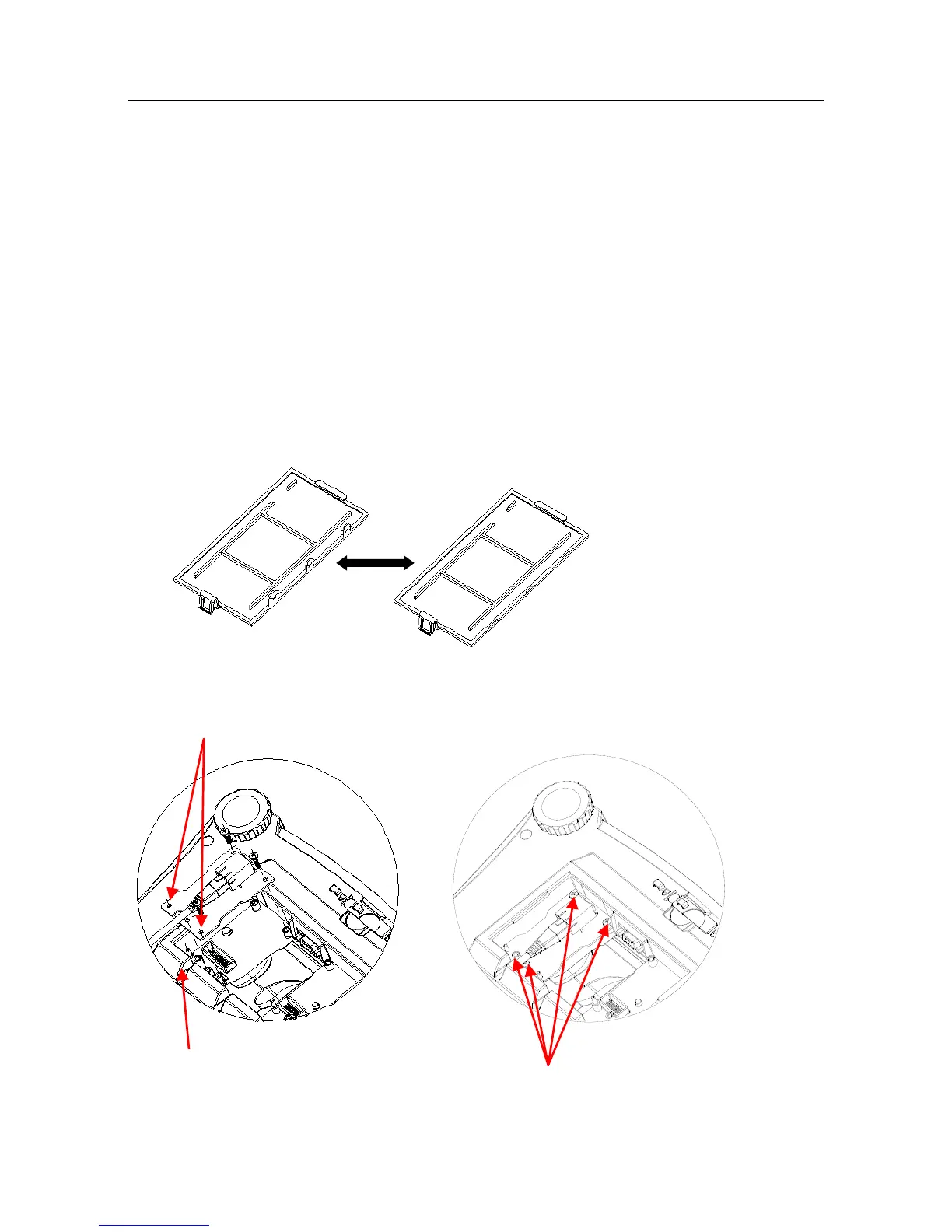

Install the Ethernet Interface on the underside of the balance as shown.
1. Remove the red interface options cover.
2. Install the Interface PCB. Push it through the pins and secure it with the 4 screws.
3. Connect an Ethernet Cable.
4. Place the cord in the groove (see step 2) and put the red interface option cover back on.
Pins
Screws
Groove
for cable
