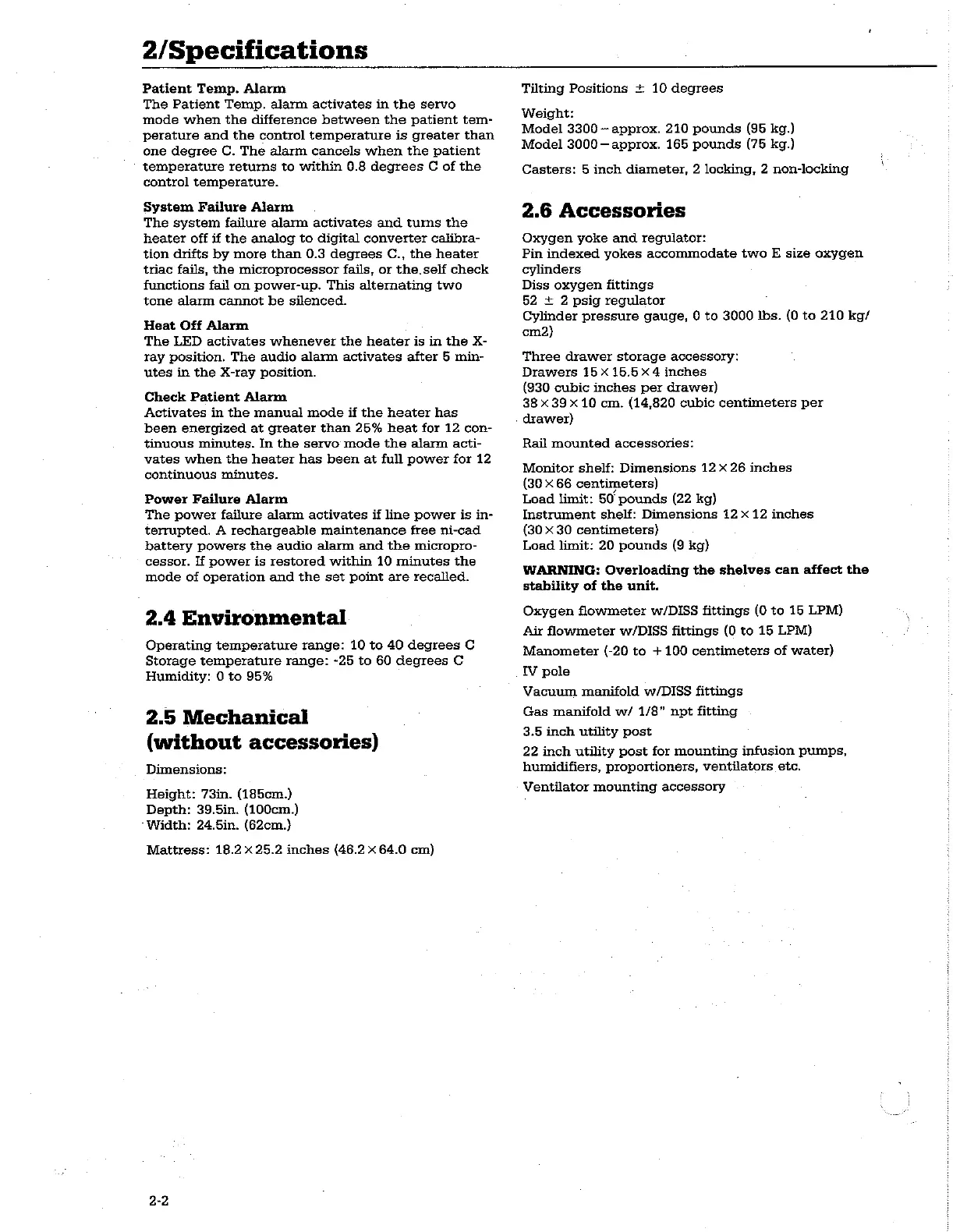

2/Specifications
Patient Temp. Alarm
The Patient Temp. alarm activates in the servo
mode when the difference between the patient tem-
perature and the control temperature is greater than
one degree C. The alarm cancels when the patient
temperature returns to within 0.8 degrees C of the
control temperature.
System Failure Alarm
The system failure alarm activates and turns the
heater off if the analog to digital converter calibra-
tion drifts by more than 0.3 degrees C., the heater
triac fails, the microprocessor fails, or the.self check
functions fail on power-up. This alternating two
tone alarm cannot be silenced.
Heat Off Alarm
The LED activates whenever the heater is in the X-
ray position. The audio alarm activates after 5 min-
utes in the X-ray position.
Check Patient Alarm
Activates in the manual mode if the heater has
been energized at greater than 25% heat for 12 con-
tinuous minutes. In the servo mode the alarm acti-
vates when the heater has been at full power for 12
continuous minutes.
Power Failure Alarm
The power failure alarm activates if line power is in-
terrupted. A rechargeable maintenance free ni-cad
battery powers the audio alarm and the micropro-
cessor. If power is restored within 10 minutes the
mode of operation and the set point are recalled.
2.4 Environmental
Operating temperature range: 10 to 40 degrees C
Storage temperature range: -25 to 60 degrees C
Humidity: 0 to 95%
2.5 Mechanical
(without accessories)
Dimensions:
Height: 73in. (185cm.)
Depth: 39.5in. (100cm.)
Width: 24.5in. (62cm.)
Mattress: 18.2 x 25.2 inches (46.2 x 64.0 cm)
2-2
Tilting Positions + 10 degrees
Weight:
Model 3300 — approx. 210 pounds (95 kg.)
Model 3000 — approx. 165 pounds (75 kg.)
Casters: 5 inch diameter, 2 locking, 2 non-locking
2.6 Accessories
Oxygen yoke and regulator:
Pin indexed yokes accommodate two E size oxygen
cylinders
Diss oxygen fittings
52 + 2 psig regulator
Cylinder pressure gauge, 0 to 3000 lbs. (0 to 210 kg/
cm2)
Three drawer storage accessory:
Drawers 15 X 15.5 X4 inches
(930 cubic inches per drawer)
38 x 39 x 10 cm. (14,820 cubic centimeters per
drawer)
Rail mounted accessories:
Monitor shelf: Dimensions 12 x 26 inches
(30 x 66 centimeters)
Load limit: 50 pounds (22 kg)
Instrument shelf: Dimensions 12 x 12 inches
(30 x 30 centimeters)
Load limit: 20 pounds (9 kg}
WARNING: Overloading the shelves can affect the
stability of the unit.
Oxygen flowmeter w/DISS fittings (0 to 15 LPM)
Air flowmeter w/DISS fittings (0 to 15 LPM)
Manometer (-20 to + 100 centimeters of water)
TV pole
Vacuum manifold w/DISS fittings
Gas manifold w/ 1/8” npt fitting
3.5 inch utility post
22 inch utility post for mounting infusion pumps,
humidifiers, proportioners, ventilators etc.
Ventilator mounting accessory
