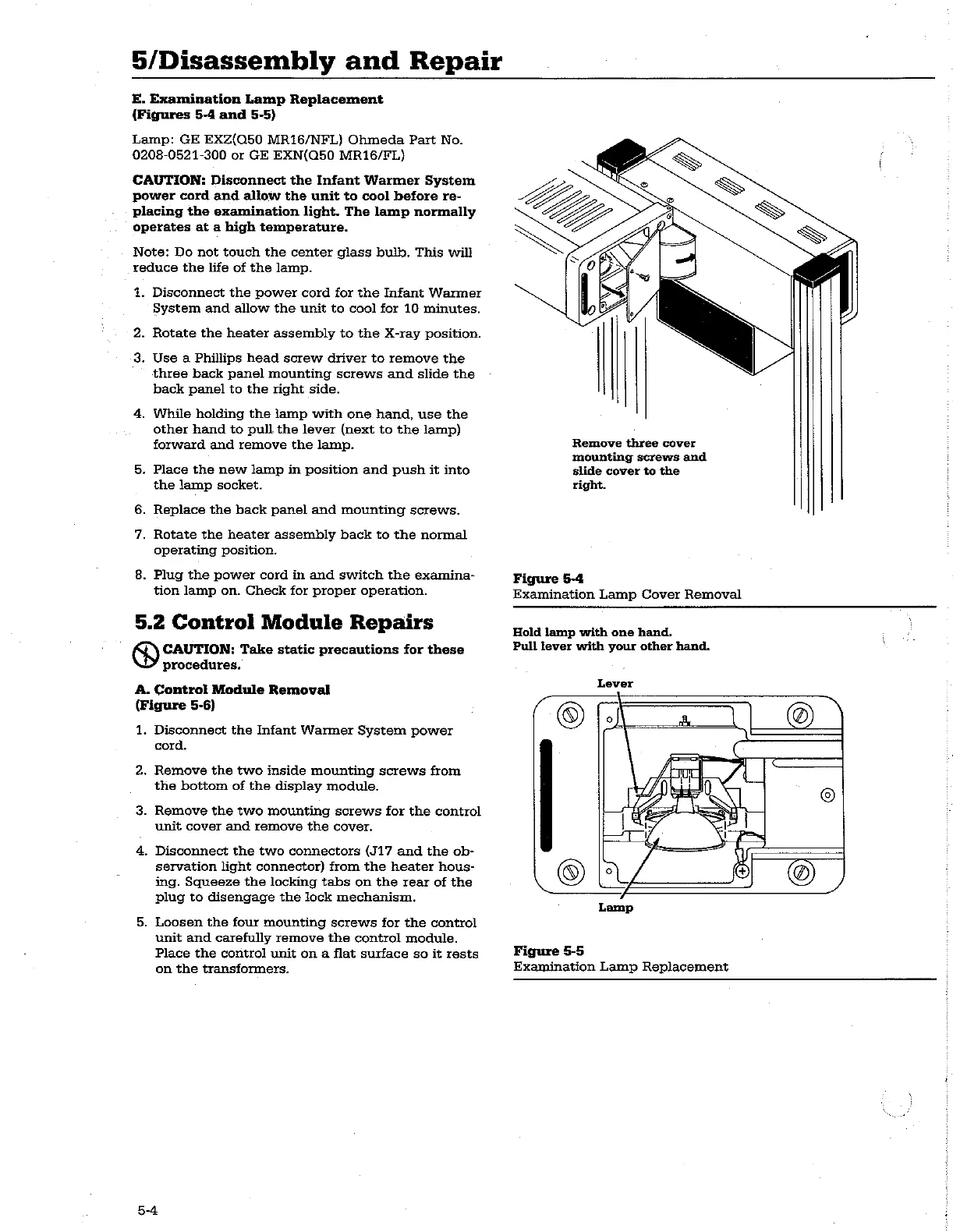

5/Disassembly
and
Repair
E.
Examination
Lamp
Replacement
(Figures
5-4
and
5-5)
Lamp:
GE
EXZ(050
MR16/NFL)
Ohmeda
Part
No.
0208-0521-300
or
GE
EXN(050
MR16/FL)
CAUTION:
Disconnect
the
Infant
Warmer
System
power
cord
and
allow
the
unit
to
cool
before
re-
placing
the
examination
light.
The
lamp
normally
operates
at
a
high
temperature.
Note:
Do
not
touch
the
center
glass bulb.
This
will
reduce
the
life
of
the
lamp.
4.
Disconnect
the
power
cord
for
the
Infant
Warmer
System
and
allow
the
unit
to
cool
for
10
minutes.
2.
Rotate
the
heater
assembly
to
the
X-ray
position.
3.
Use
a
Phillips
head
screw
driver
to
remove
the
three
back
panel
mounting
screws
and
slide
the
back
panel
to
the
right
side.
4.
While
holding
the
lamp
with
one
hand,
use
the
other
hand
to
pull
the
lever (next
to
the
lamp)
forward
and
remove
the
lamp.
Remove
three
cover
mounting
screws
and
5.
Place
the
new
lamp
in
position
and
push
it
into
slide
cover
to
the
the
lamp
socket.
right.
6.
Replace
the
back
panel
and
mounting
screws.
7.
Rotate
the
heater
assembly
back
to
the
normal
operating
position.
8.
Plug
the
power
cord
in
and
switch
the
examina-
Figure
5-4
tion
lamp
on.
Check
for
proper
operation.
Examination
Lamp
Cover
Removal
5.2
Control
Module
Repairs
Hold
lamp
with one hand.
CAUTION:
Take
static
precautions
for
these
Pull
lever
with your
other
hand.
procedures.
.
A.
Control
Module
Removal
Lever
(Figure
5-6)
1.
Disconnect
the
Infant
Warmer
System
power
cord.
2.
Remove
the
two
inside
mounting
screws
from
the
bottom
of
the
display
module.
3.
Remove
the
two
mounting
screws
for
the
control
unit
cover
and
remove
the
cover.
4.
Disconnect
the
two
connectors
(J17
and
the
ob-
servation
light
connector)
from
the
heater
hous-
ing.
Squeeze
the
locking
tabs
on
the
rear
of
the
plug
to
disengage
the
lock
mechanism.
5.
Loosen
the
four
mounting
screws
for
the
control
unit
and
carefully
remove
the
control
module.
Place
the
control
unit
on
a
flat
surface
so
it
rests
Figure
5-5
on
the
transformers.
Examination
Lamp
Replacement
5-4
