Ohmeda 3000 - Heater Housing Assembly

5/Disassembly and Repair
Heater Rod
Note: For replacement, hold terminal to ensure no strain
is placed on the element.
Mounting 一
Mounting
Screw
Screw
Front Mounting
Plate
< Alarm Lamp
5 Sockets
Front Heater
Housing Cap
Front Cover
Plate

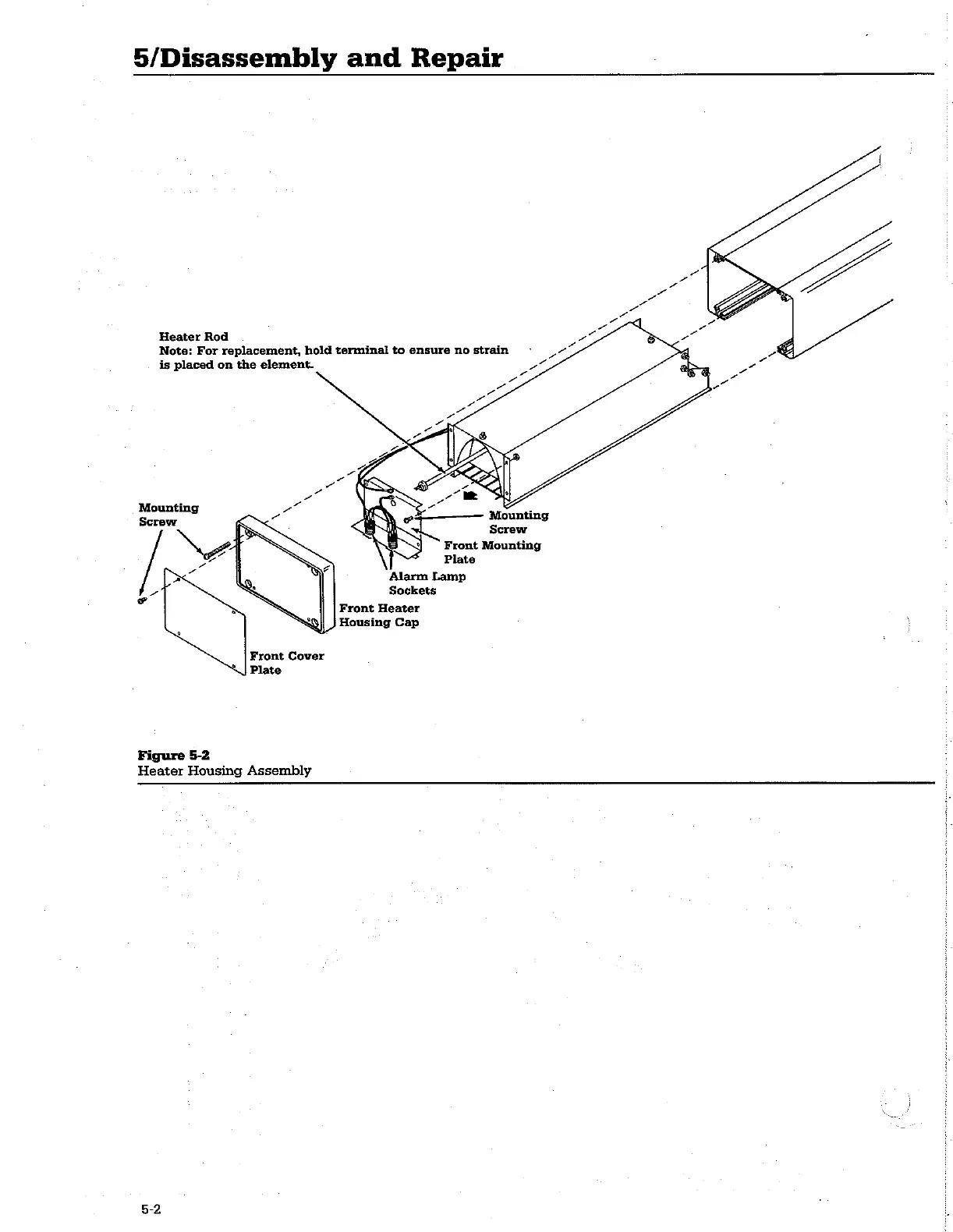

Figure 5-2
Heater Housing Assembly
