Ohmeda 3000 - Harness and Housing Illustrations

7/Illustrated Parts and Parts List
E
= em (PIN)
M (#6) ops 1
Description Stock Number
Heater Interconnect Harness Assembly ... 0208-6179-700
Note: Replacement of the complete harness assembly is
recommended.
1. 6 Circuit connector Amp #350715-1 ....0690-1561-444
. « 0690-1562-346
0203-5915-300
3. Fiberglass tubing ..... .. . 0999-8315-010
4. 3 Circuit connector Amp #350766-1 ....0690-1561-402
- 0690-2600-375
+ « 0690-1562-347

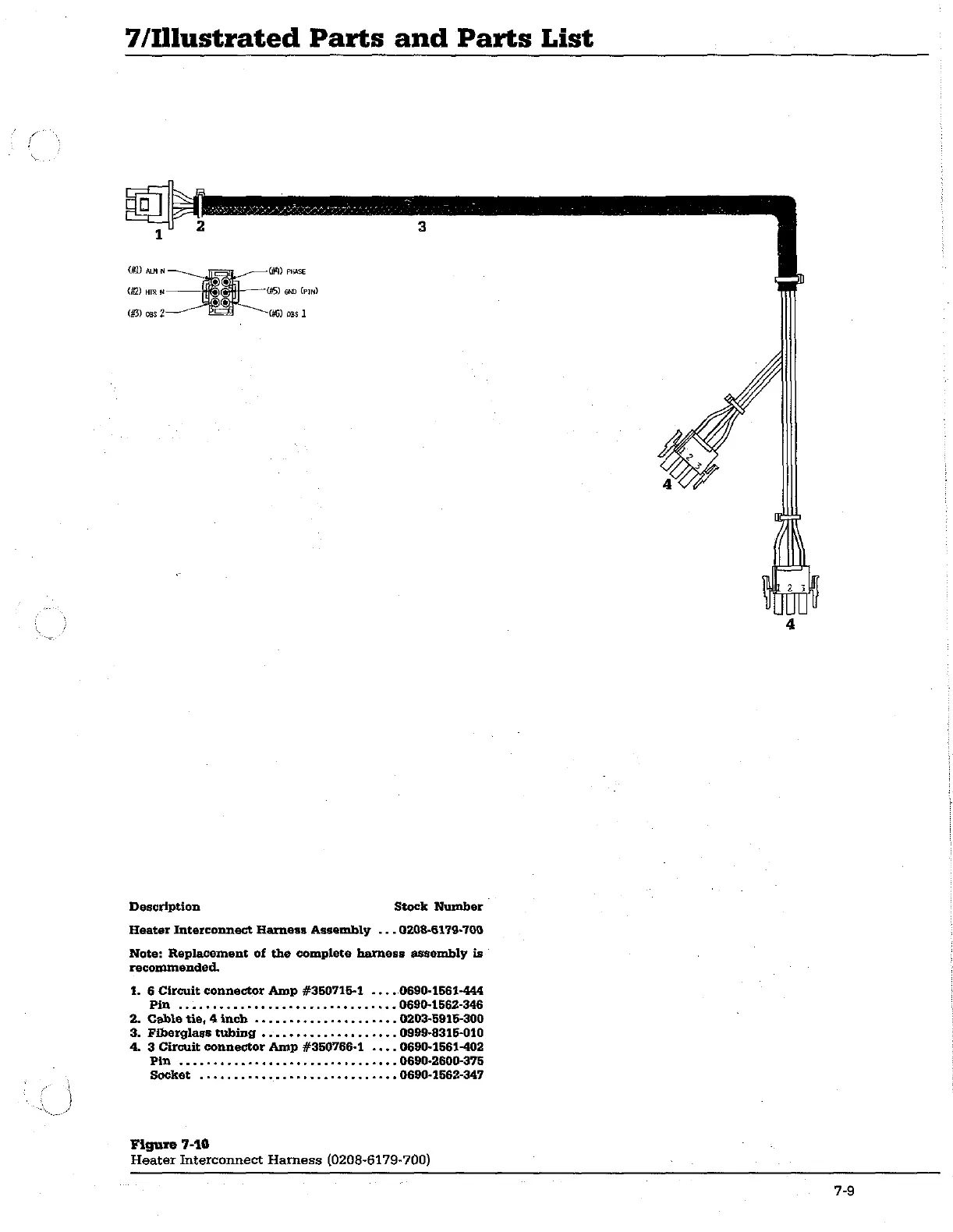

Figure 7-10
Heater Interconnect Harness (0208-6179-700)
