Ohmeda 3000 - Page 54

7/Illustrated Parts and Parts List
b
da
©
レノ クー ゴト [ LP
Zİ 228
7
2
LE
Description Stock Number
Controller Harness Assembly ........... 0208-6181-700
Note: Replacement of the complete harness assembly is
recommended.
1. 3 Circuit connector Amp #350766-1 ....0690-1561-402
Socket ...................... ・- 0690-1562-347
Polarizing Plug .............. .- 0690-1562-345
2. 2 Circuit connector Amp #350777-1 .. - - 0690-1561-401
Socket ........................- ・- 0690-1562-347
3. 2 Circuit connector Amp#350777-1
ーー
4, 3 Circuit connector Amp #350767-1 .
Socket
- « 0690-1561-401
・- 0690-2600-375
・・0690-1561-425
・- 0690-1562-347
ーー 0690-2600-375
5. 2 Circuit connector
Methode#1300-102-422 ............... 0690-1560-456
6. 6 Circuit connector
Methode #1300-106-422 ........ 0000 0690-1560-457
7. Cable tie, 4 inch ...............-..... 0203-5915-300

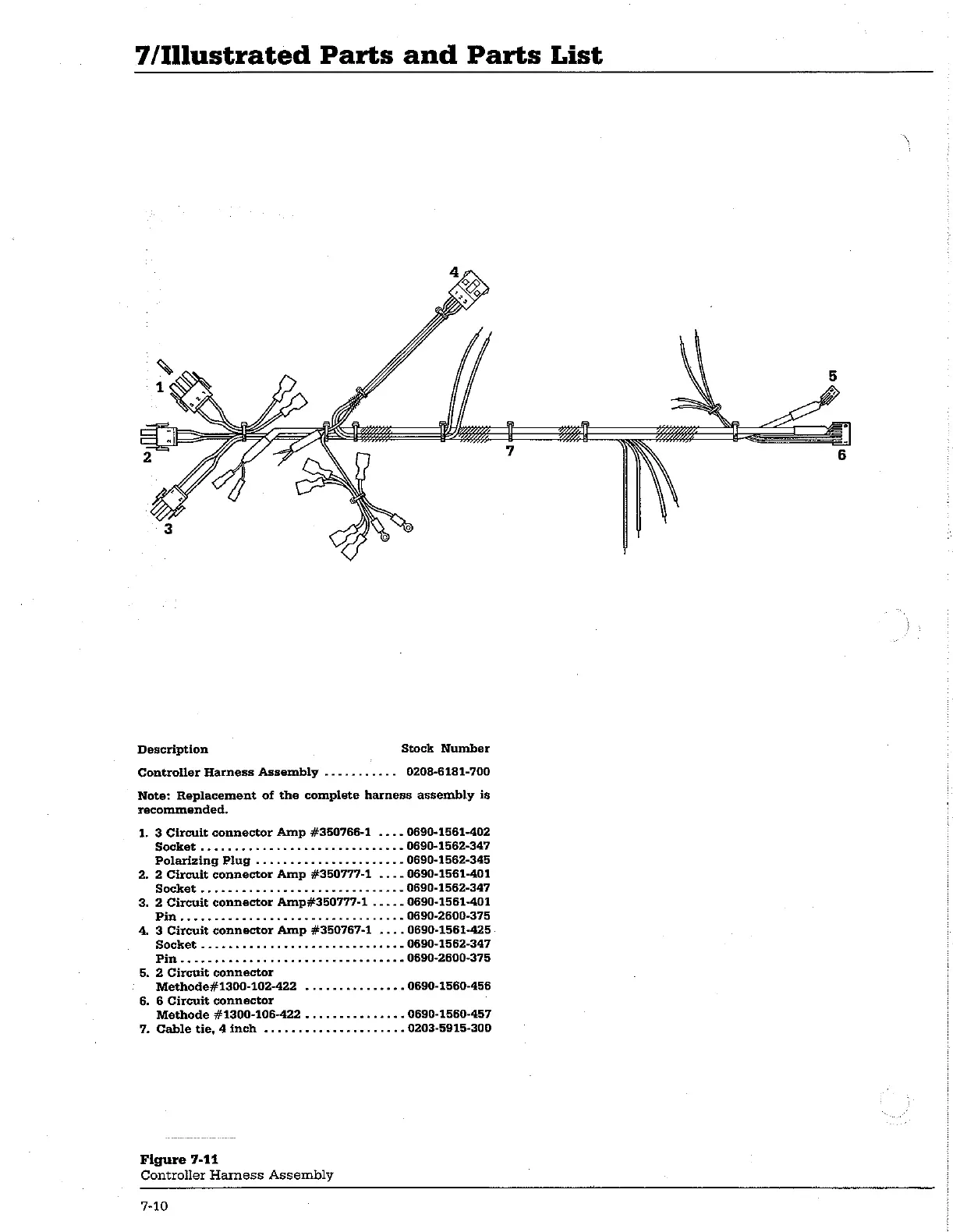

Figure 7-11
Controller Harness Assembly
7-10
