Ohmeda 3000 - Side Panel Repairs

5/Disassembly and Repair
B, Side Panel Repairs Assembly:
(Figure 5-11) 1. Mount the spring, support button, and end brac-
. < ket on the bed side and window.
Disassembly:
1. Remove the mounting screw from the end brac- 2. Replace the mounting screw and tighten sec-
ket. urely.
2, Remove the other mounting screw and end brac-
ket if the bed side or window need replacement.
3. Disassemble the end bracket, support button and
spring from the bed side.
4. Replace damaged parts as necessary.
Window |
Spring Bed Side
^
-一
O ~ c
Support Button
a
End Bracket
Mounting
Screw

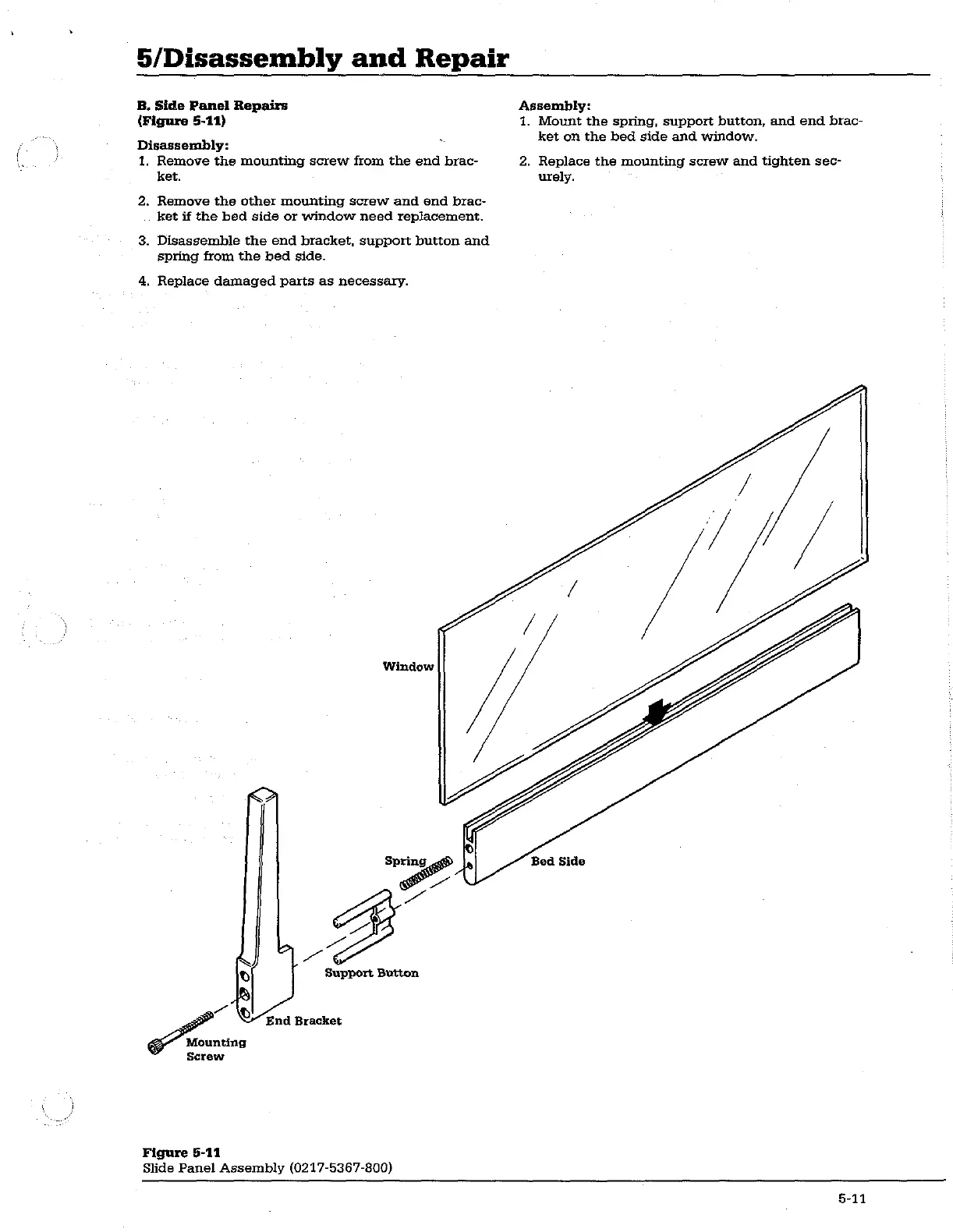

Figure 5-11
Slide Panel Assembly (0217-5367-800)
5-11
