Ohmeda 3000 - Bed and Yoke Assembly Illustrations

7/Illustrated Parts and Parts List
Description Stock Number
1. Elast nut 5/16-24 ..................., 0202-1017-300
2. Screw 10-24 x 5/16 + 0140-6530-105
3. Lockwasher #10 .. . 0144-1110-131
â. Tubing cover plate . 0214-2268-511
5. Tilt plate cover ... „ 0217-5261-510
6. Actuator rod ・0217-5323-500
7. Extension spring . „ 0203-3103-300
8. Bed tilt lever ... . 0217-5277-100
9. Pin......... ee κεννεντ + 0217-5321-500
10. Hydraulic system assembly . - 0217-5360-810
Bail joint + 0217-5318-300
11. Valve bed hydra: pi ㆍ ・0217-5283-100
12. Bed (model 3300) ........ - 0217-5316-100
13. Pin............ - 0217-5322-500
14. Pivot rod .... - 0217-5312-549
15. Corner block ... ・0217-5278-100
16. Lockwasher#10 ... ・0144-1110-131
17. Screw 10-24 x 5/16 . ー 0140-6530-105
18. Rod ........... -. 0217-5313-300
19. Hook ......,.................. ~ - 0203-5194-300

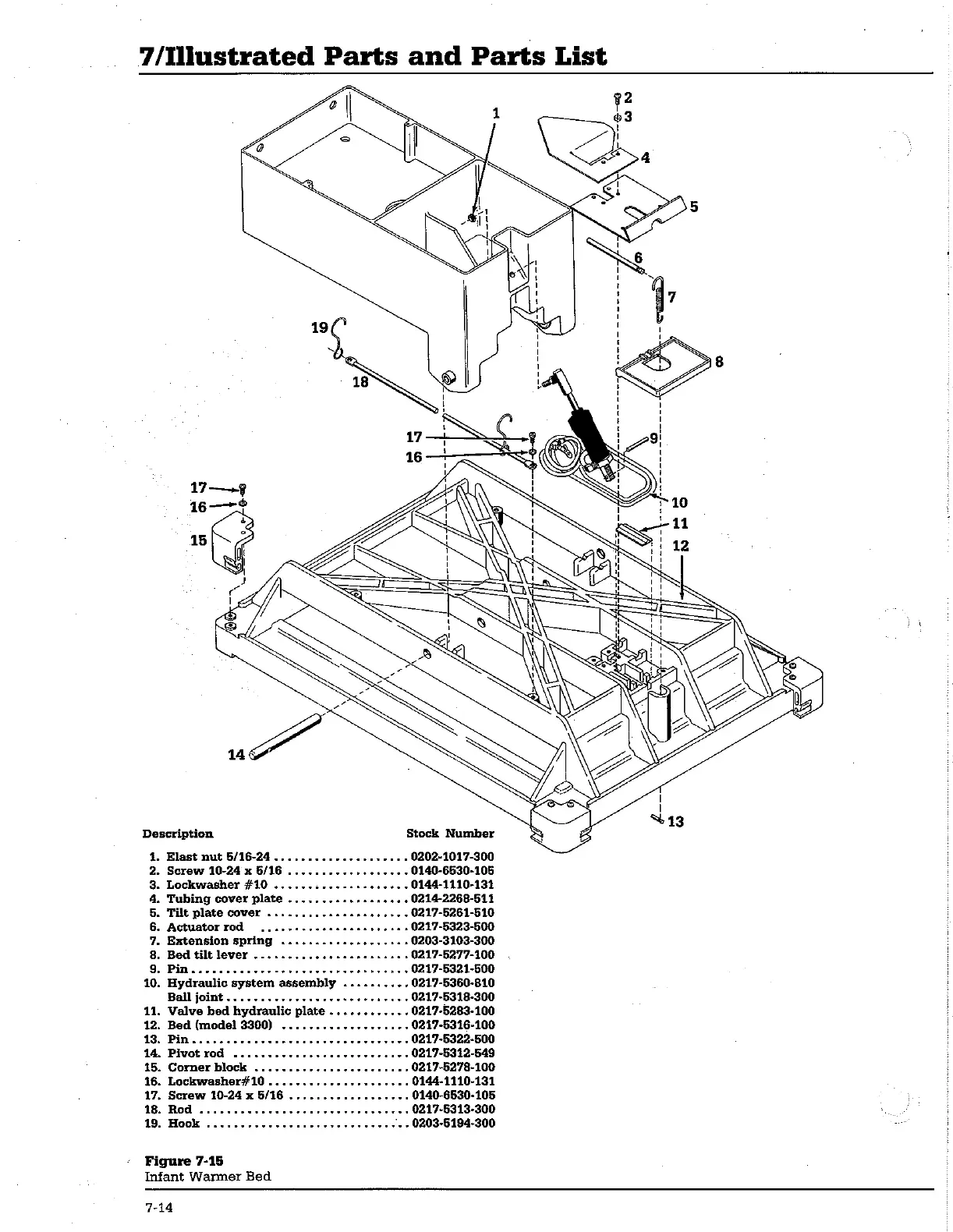

Figure 7-15
Infant Warmer Bed
7-14
