© 2016 OJ Electronics A/S
6
Caution
With enclosure sizes H3 ... H5, OJ-DV operating and motor parameters are set for connection to a supply
voltage of 3x400V.
If these types are connected to a 3x230V power supply, operating and motor parameters must therefore be
changed for optimum operation.
Motor parameters can be changed by the installer via the hand terminal (OJ-DV Hterm), OJ-Drives-Tool or
OJ-DV PCTool. Configuration parameters can only be changed by the manufacturer.
INSTRUCTIONS OJ-DV | General
Table 10.3
Week num-
ber
Batch Serial no. Year
W W B B B B B S S S S S Y Y
Week of
production
Manufac-
turer's order
number
Unit
number
Year of
manufac-
ture
Table 10.2
1 Product ID = see table 10.4.
2 Shaft power at nominal voltage
3 Max. input voltage, Hz/A
4 Max. output voltage/Hz/A
5 Product code = see table 10.3.
6 Enclosure rating
7 Weight
8 Temperature range, operating
9 Manufacturer's logo
10 Manufacturer's web address
11 Manufacturer's postal address
12 Country of manufacture
13 CE approved, logo
14 Disposal, logo
15 Bar code
16 EAC approved, logo
Table 10.4
1
Manufacturer's initials
2
3
4
Product type
5
6
7
Electrical connection
8
Controller power/size
9
10
11
Optional module type
12
Cable entry
13
Integrated cooling fan
10. Rating plate

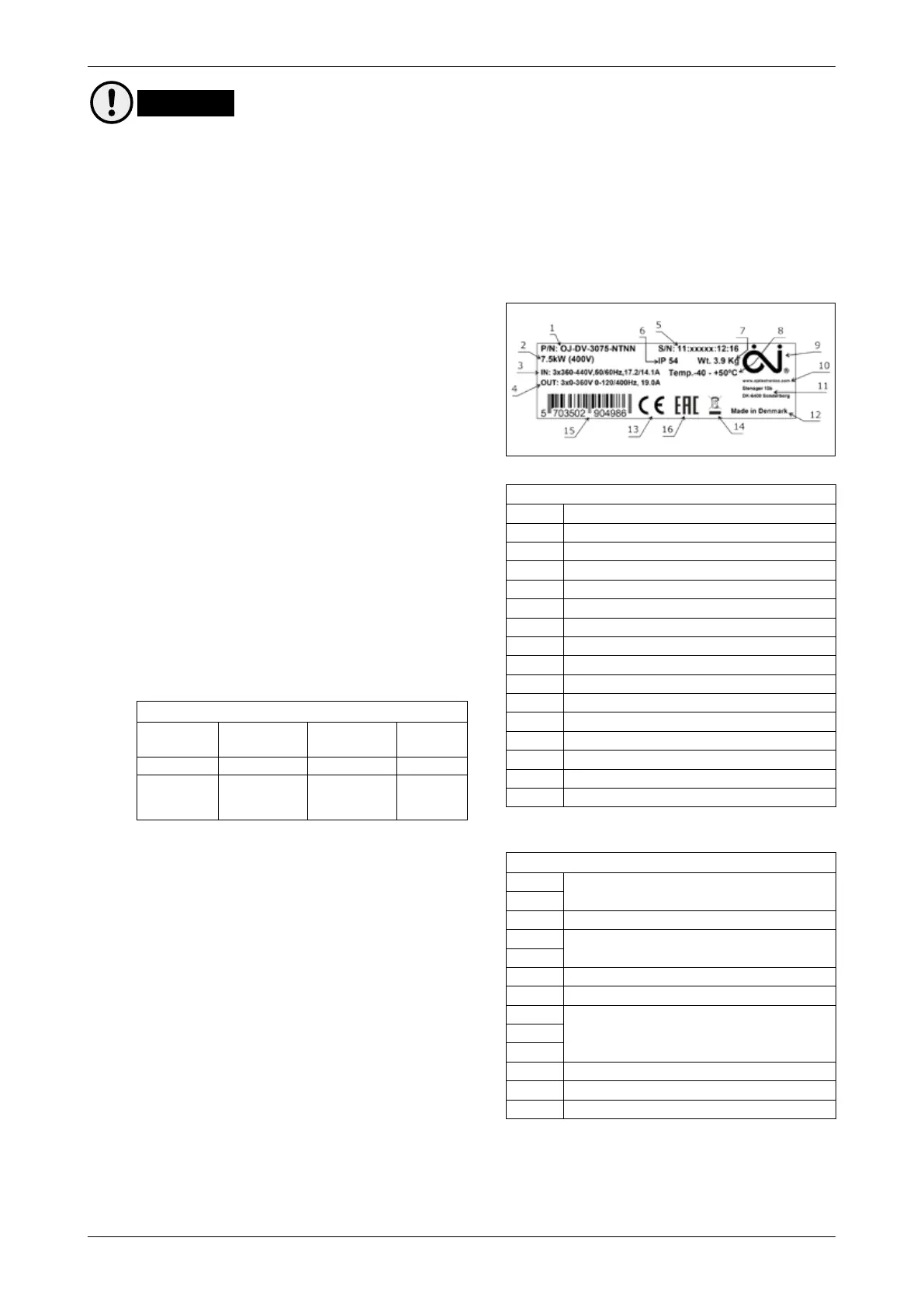

10.1. OJ-DV is equipped with a silver-coloured rating
plate.
See the example in fig. 10.1 and explanation in
table 10.2.
Check that the information specified on the rating
plate is as expected.
10.2. Rating plate, information and explanation
10.3. Explanation of product code
Each and every OJ-DV is given its own product
code during manufacture.
The product code (see table 10.3) gives precise
information on the specific OJ-DV.
The product code contains the following
information:
Figure 10.1
10.4. The product ID consists of a combination of 14
numbers and letters, each of which provides
information about the specific product, see fig.
10.4 and table 10.4.
