Oki B401dn User Manual

Overlays and Macros (Windows only) > 58
If you wish to edit the names or ID numbers, double-click the file entry and edit the
details.
Note that the names are case sensitive.
8. Choose Projects > Save Project and enter a meaningful name (e.g. “Letter
Stationery”) so that you can recognise it.
9. Choose Projects > Send Project Files to Printer to download the project to the
printer.
10. When the message “Command Issued” appears confirming that the download is
complete, click OK to clear the message.
T EST PRINTING THE MACRO
1. Choose Printers > Test Macro.
2. In the Test Macro window, enter its ID number and click OK. After a short pause the
printer will print the macro.
3. When each macro has been tested, click Exit.
4. Click the standard Windows Close (X) button, or choose Projects > Exit to close
Storage Device Manager.
D EFINING OVERLAYS
This is the final step before the new overlays are ready for use.
1. Open the Printers (called “Printers and Faxes” in Windows XP) window via the Start
menu or the Windows Control Panel.
2. Right-click on the Relevant PostScript printer icon and choose Printing
Preferences from the pop-up menu.
3. On the Job Options tab, click the Overlay button.

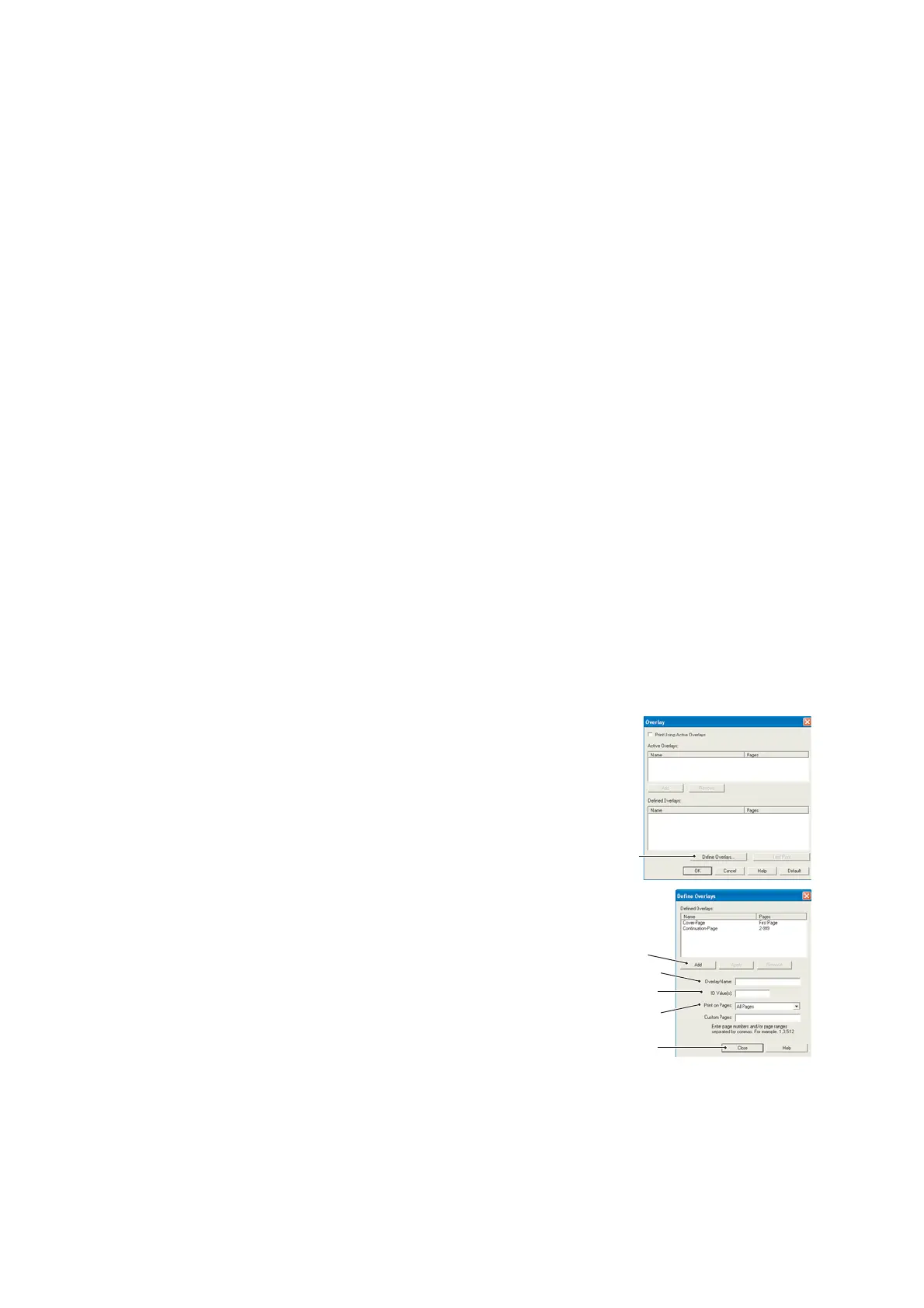

4. In the Overlay window, Click the Define Overlays
button (1).
5. In the Define Overlays window, enter the name (a) and
ID (b) of the required overlay, and define which
page(s) (c) of your documents will use this overlay. Then
click the Add button (3) to add this overlay to the list of
defined overlays. Repeat for any other related overlays.
When done, click the Close button (4) to close the
window.
The example illustrated shows two overlays defined, one for
a cover page and one for continuation pages.
Remember that names and IDs of overlay files must be entered exactly as they
appeared in the Storage Device Manager project window. Remember also that names
are case sensitive.
If you forgot to note the overlay name or ID when you created them, you can find
them using Storage Device Manager to view the project file, or the printer’s
Information Menu to print a file list and identify them from there.
1
a
3
b
4
c

Oki B401dn Specifications

General

Color	No
Duplex printing	Yes
Print technology	LED
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	5.5 s
Print speed (black, normal quality, A4/US Letter)	29 ppm
PCL fonts	87
Bitmap fonts	OCR-A, OCR-B
Printer fonts	Bitmap, PCL
Maximum duty cycle	30000 pages per month
Recommended duty cycle	2000 pages per month
Number of print cartridges	-
Page description languages	Epson FX, IBM ProPrinter, PCL 5e, PCL 6
Processor family	PowerPC
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Product color	White
Total input capacity	250 sheets
Total output capacity	150 sheets
Maximum input capacity	251 sheets
Total number of input trays	1
Multi-Purpose tray input capacity	1 sheets
Maximum print size	216 x 356 mm
Paper tray media types	Plain paper
Paper tray media weight	60 - 120 g/m²
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Standard interfaces	Ethernet, Parallel, USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.5 W
Power consumption (standby)	70 W
Power consumption (printing)	510 W
Power consumption (PowerSave)	7 W
Storage temperature (T-T)	-10 - 43 °C
Operating temperature (T-T)	10 - 32 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %
Compatible operating systems	Windows XP (32-bit & 64-bit) / Server 2003 (32-bit & 64-bit) / Vista (32-bit & 64-bit) / Server 2008 (32-bit & 64-bit) / Server 2008 R2 (64-bit) / 7 (32-bit & 64-bit); Mac OS X Intel 10.4-10.7
Mac operating systems supported	Mac OS X 10.4 Tiger, Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64

Weight and Dimensions

Dimensions (WxDxH)	387 x 364 x 244.5 mm
