1.REPLACEMENT OF PARTS

1.2.4 Pickup roller

If the hopping jam occurs frequently, to change the pickup roller and separation roller.

Model name： RS-C4B

separation roller spring

feed roler

(with gear)

pickup roler

(without gear)



Notes! •Ifchangetheroller,tochangeallrollers.

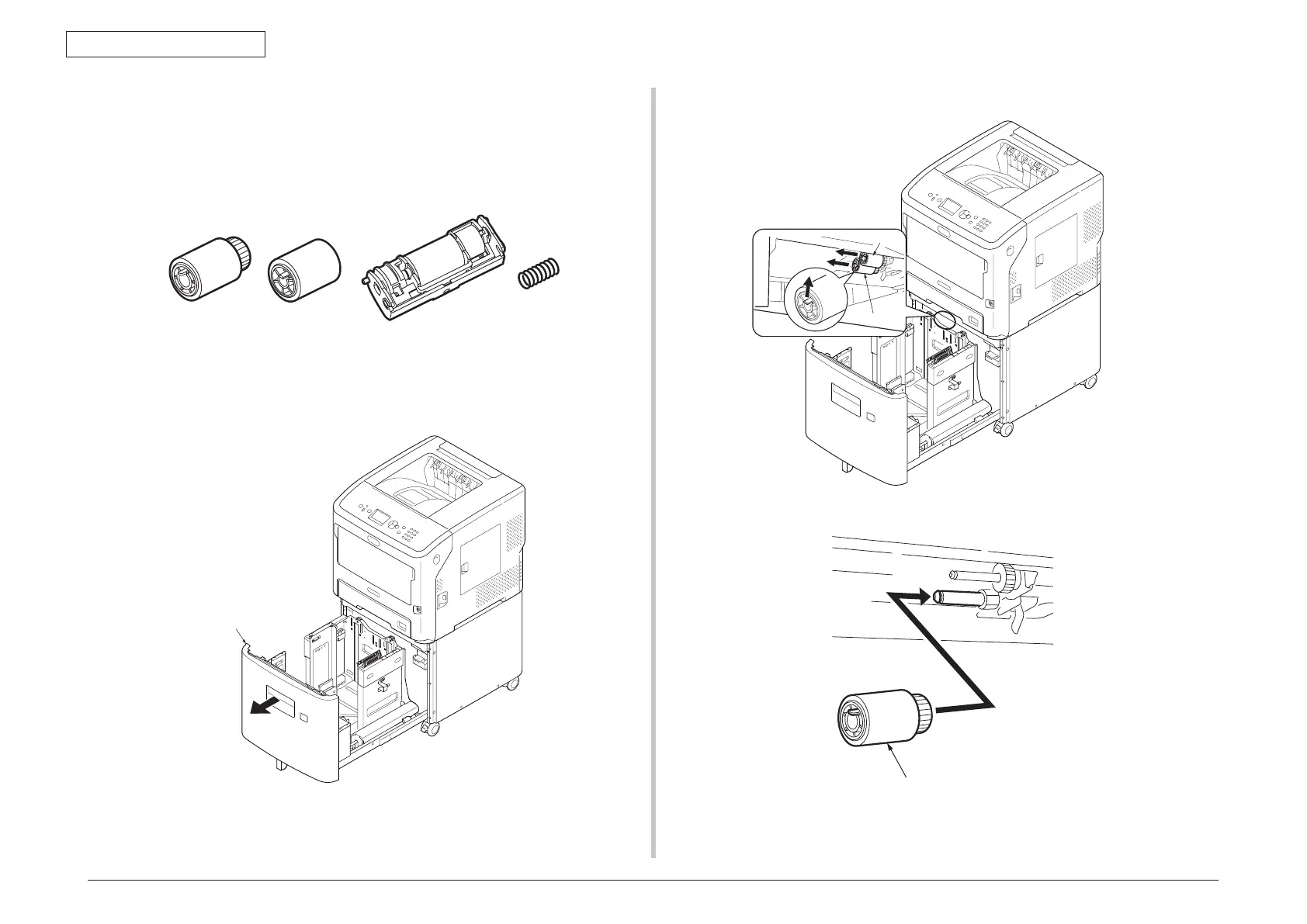

(1) Draw out the paper tray after the power off the printer.

aper Cassette

(2) Remove the latch and remove the roller

①

②

①

(3) Put the new roller

（

with gear

）①

to the shaft.

①
