102 – C330/C530 Replacing Consumables and Maintenance

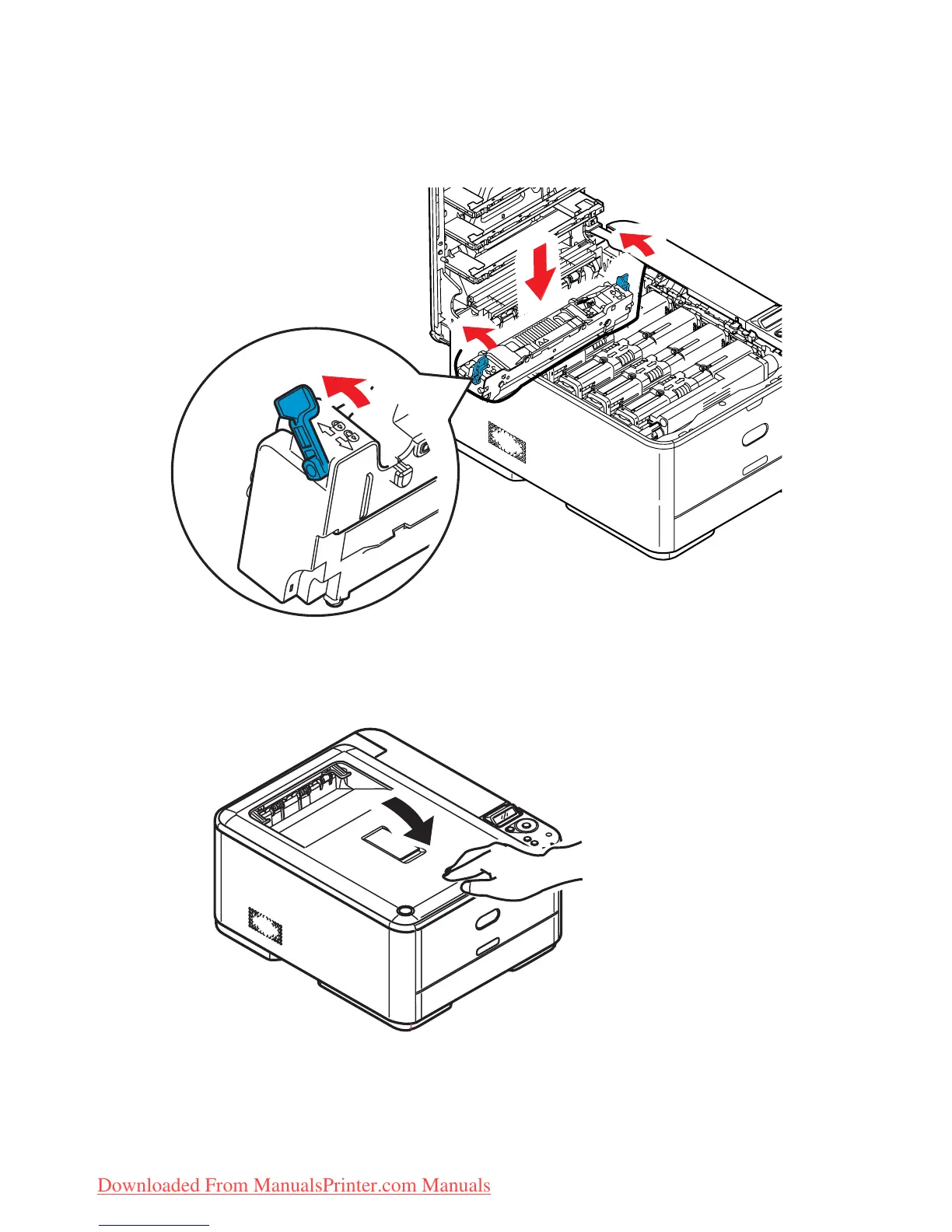

5. Lower the fuser into the printer, locating the two lugs into
their slots in the sides of the printer cavity. Then push the
two retaining levers towards the rear of the printer to lock
the fuser in place.
6. Close the top cover and press down firmly so that the cover
latches closed.
