82 – C330/C530 Replacing Consumables and Maintenance
8. Holding the cartridge by its top center, lower it into the area
of the image drum unit from which the old cartridge was
removed.

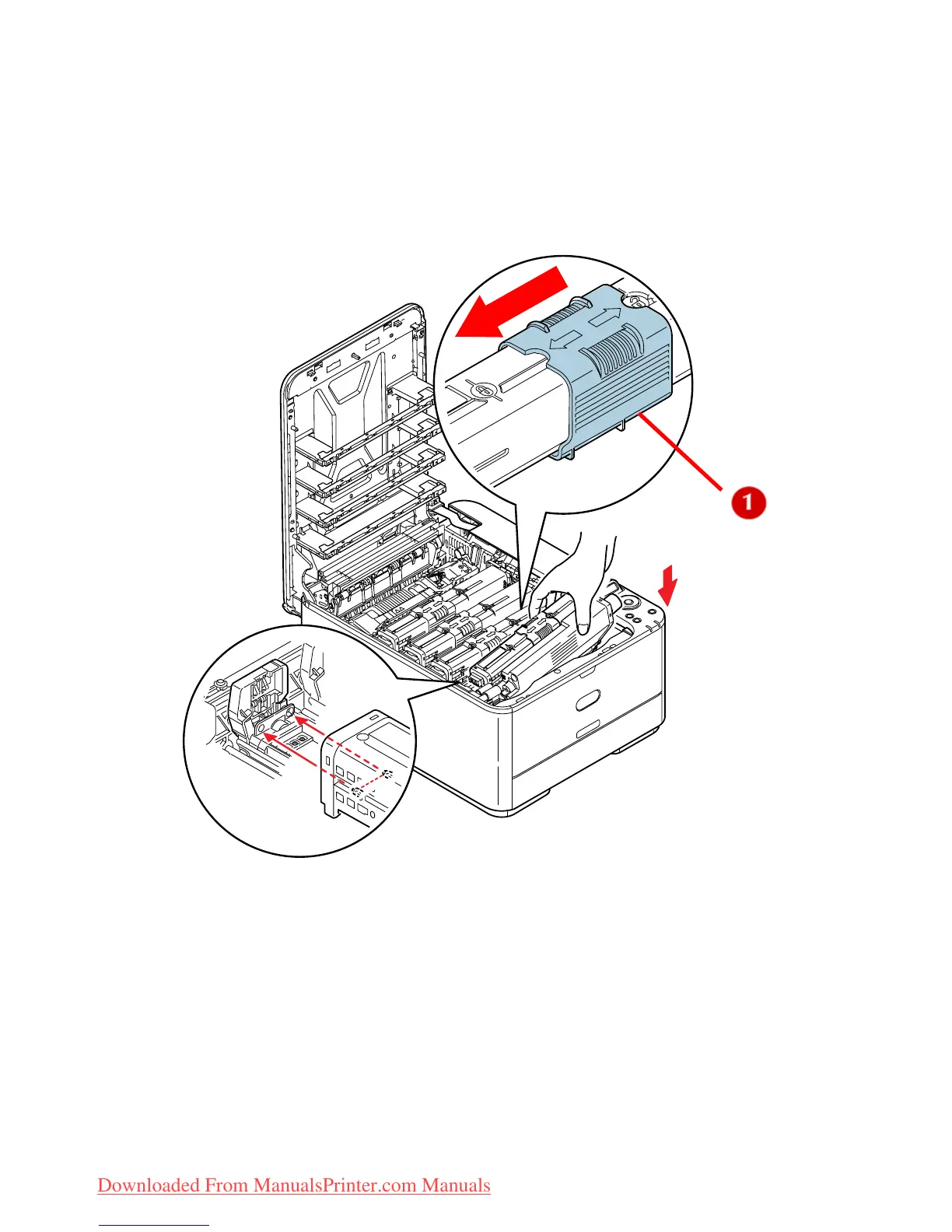

9. Pressing gently down on the cartridge to ensure that it is
firmly seated, slide the colored collar (1) fully towards the
left hand side of the printer. This will lock the cartridge into
place and release toner into the image drum unit.
