Status Lights and Buttons
The Operation Panel
op

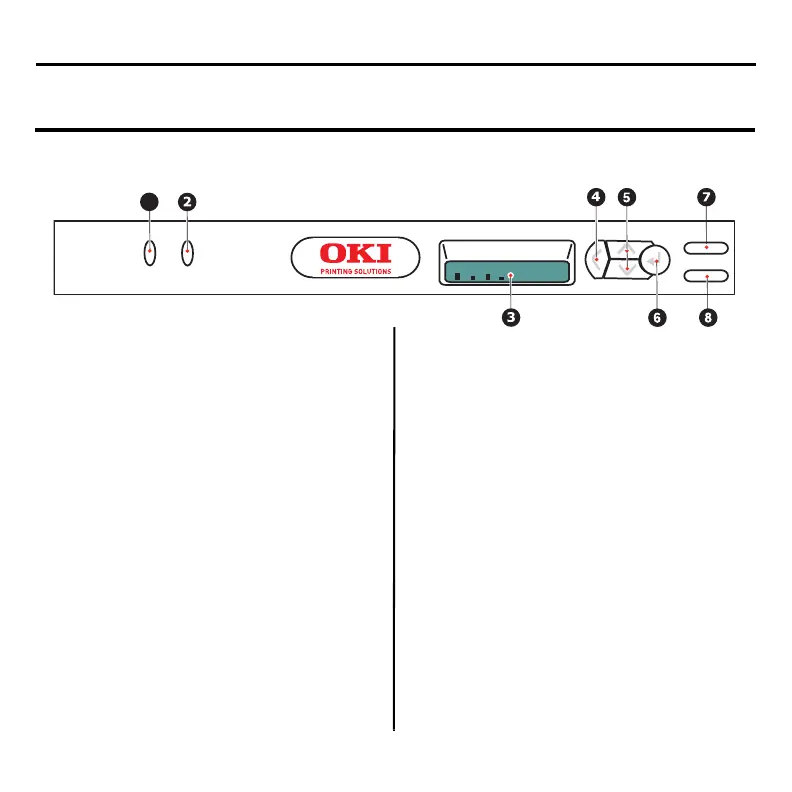

The Operation Panel incorporates
2 LEDs, a two-line LCD, and 6
push-buttons as follows (from left
to right):
1. ATTENTION LED (amber)
2. ON LINE LED (green)
3. LCD
4. Menu Back button
5. Menu Up button, Menu Down
button
6. Menu Enter button
7. ON LINE switch
8. CANCEL switch
The buttons are used to operate
the printer; the LEDs and LCD
display the status of the printer.
LCD Display
The 2-line, 16-character LCD
display shows the printer status,
menus, and any error messages.
