7. TROUBLESHOOTING
Paper
Fuser unit

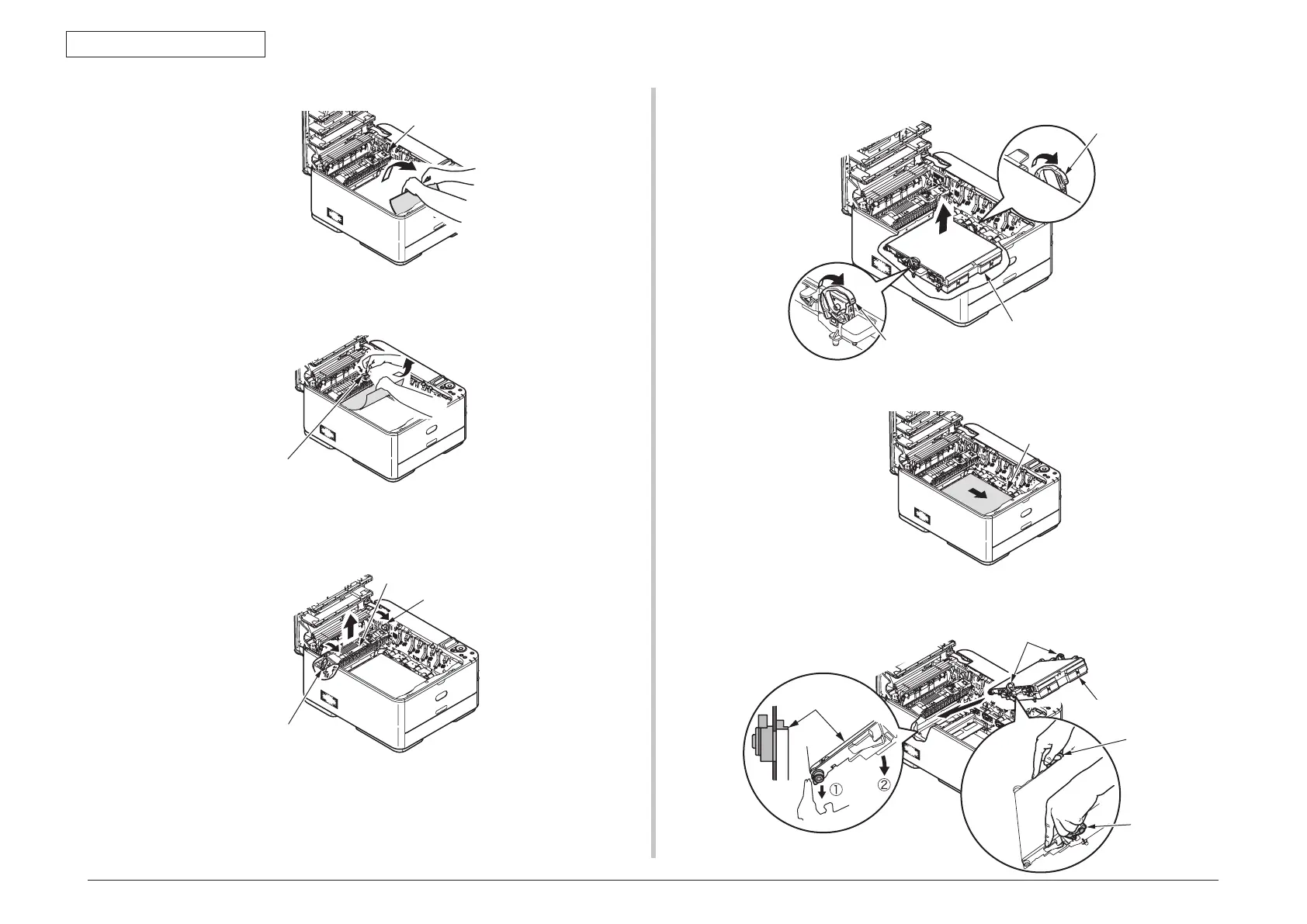

Remove in the direction of the arrow any paper jammed the inside front of the
printer.
Pull out toward the front of the printer any paper jammed at the fuser unit, with the
fuser unit lever (blue) left turned in the direction of the arrow.
Fuser unit lever
(4) Move the fuser unit lock levers to the direction of the arrow to unlock the fuser unit,
and then remove the fuser unit.
Handle
Fuser unit lock lever (blue)
Fuser unit lock lever (blue)
(5) Place a finger behind the belt unit lock levers (blue) and raise and remove it.
(6) Remove jammed paper in the direction of the arrow.
Paper
Fuser unit
Lock lever (blue)
Belt unit
Lock lever (blue)
Belt unit
Belt unit
Lock levers (blue)
Lock lever
(blue)
Lock lever
(blue)
(7) Hold the belt unit by the lock lever (blue) on each side of it, and install the belt unit
inside the printer.
