4.REPLACEMENT OF PARTS

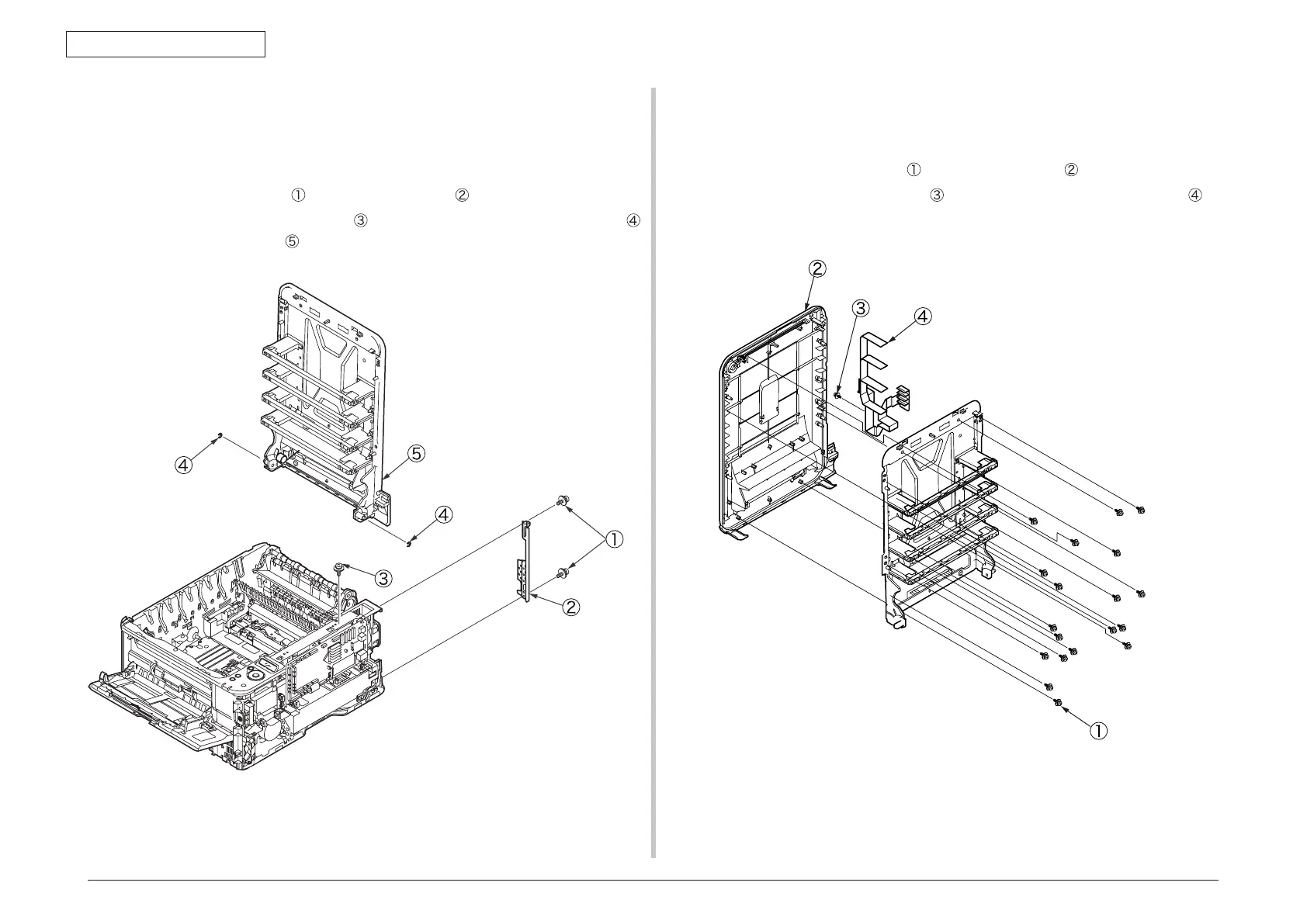

4.2.10 Top cover assembly
(1) Remove the left side cover, the right side cover and the rear cover.
(2) Remove the plate shield assembly and then the LED head cables.
(3) Remove the two screws
to remove the plate-rear .
(4) Remove the (silver-colored) screw
and then the two E-shaped retainer rings
to detach the top cover .
4.2.11 Top cover and LED head cable assembly
(1) Demount the top cover assembly.
(2) Remove the 18 (black) screws
to detach the top cover .
(3) Remove the (silver-colored) screw
to detach the LED head cable assembly .
×18
