Oki C511 - Right Side Cover; Face-Up Tray

44951501TH Rev.2
4-6
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

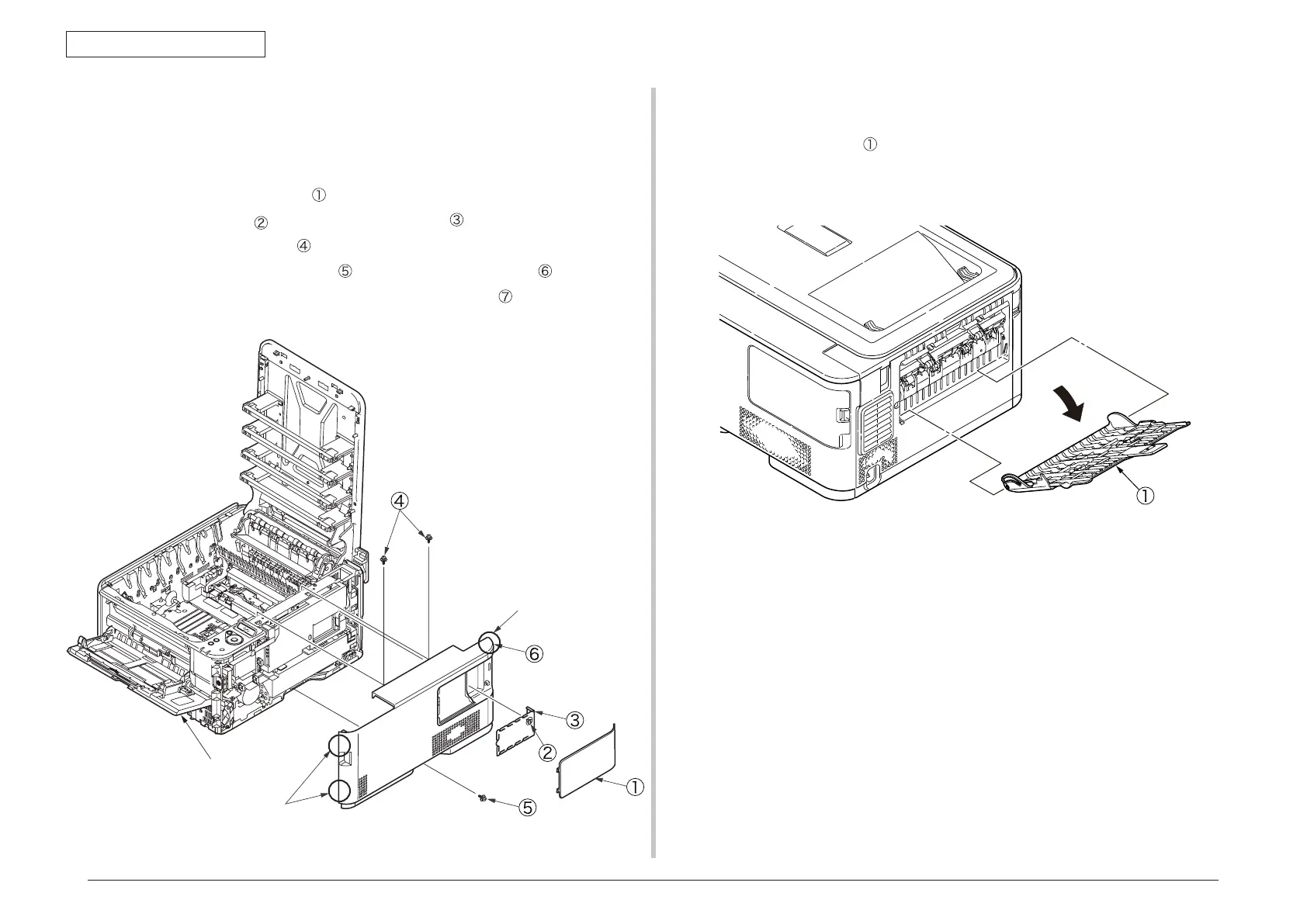

4.2.4 Right side cover
(1) Open the top cover.
(2) Remove the cassette assembly.
(3) Remove the interface cover
.
(4) Loosen the screw
to remove the memory cover
(5) Open the MPT assembly
(6) Remove the two (black) screws and one (silver-colored) screw .
(7) Unlatch two portions A and B to detach the right side cover
.
4.2.5 Face-up tray
(1) Open the face-up tray
in the direction of the arrow and, warping it, disengage
two portions to detach the face-up tray.
MPT Assy
Latches A
Latch B
