44951501TH Rev.2
4-22
Oki Data CONFIDENTIAL

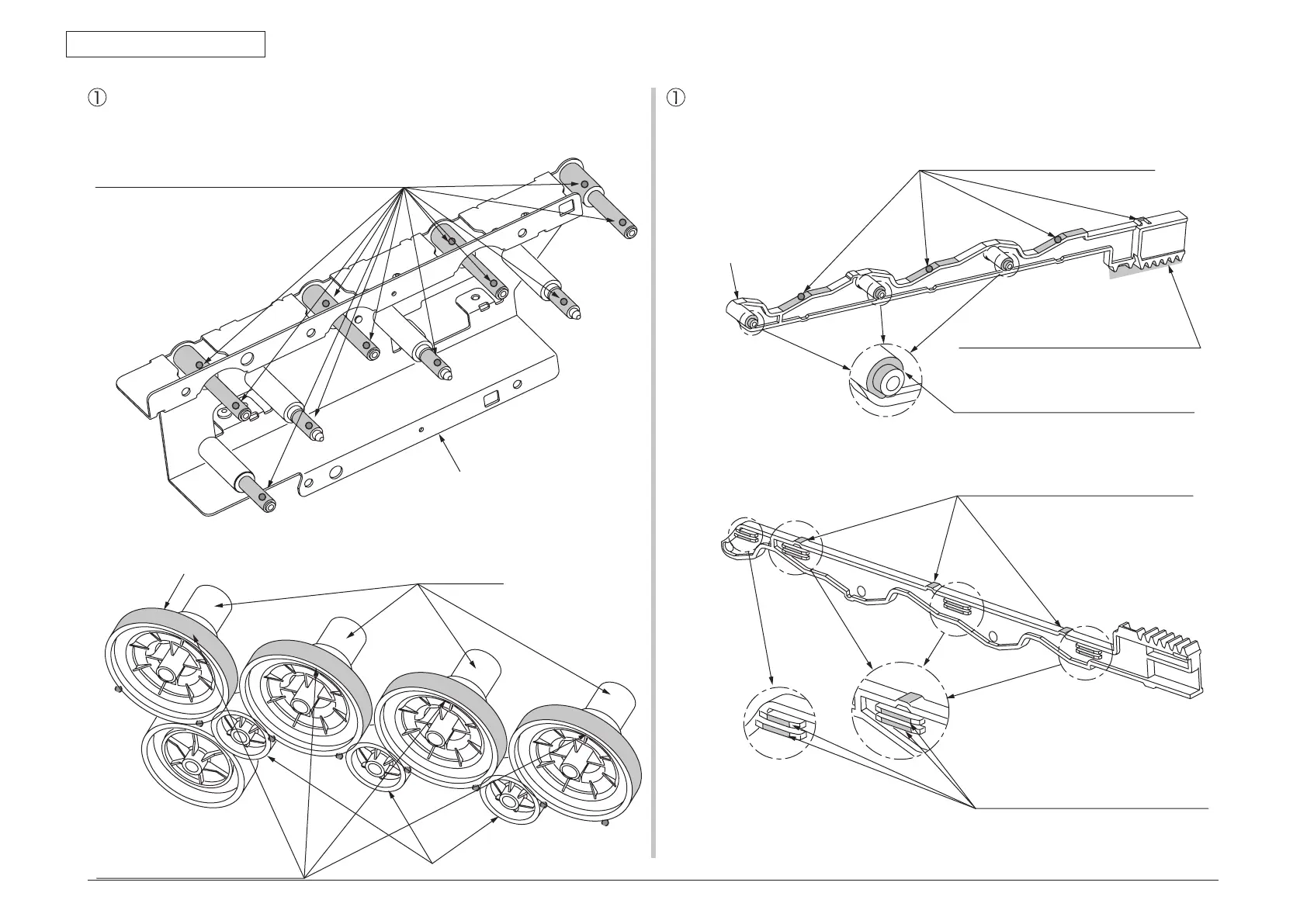

4.REPLACEMENT OF PARTS
-5 44452301PA Side-R Assy. -6 44452301PA Side-R Assy.
Plate-Gear-Caulking
Gear-Reduct-ID
Gear-Idle-IDS
EM-30LP Class C
Apply a normal amount of MOLYKOTE (EM-30LP)
to the whole circle of hatched areas (Shaft end
eurface side).
EM-30LP Class C
Apply a normal amount of
MOLYKOTE (EM-30LP)
to the whole circle of gear teeth (4
places).
Grease prohibition
EM-30LP Class A
Apply a small amount of MOLYKOTE
(EM-30LP) to the hatched areas.
EM-30LP Class A
Apply a small amount of MOLYKOTE
(EM-30LP) to the hatched areas.
EM-30LP Class A
Apply a small amount of MOLYKOTE
(EM-30LP) to the hatched areas.
EM-30LP Class A
Apply a small amount of MOLYKOTE
(EM-30LP) to the hatched areas.
EM-30LP Class C
Apply a normal amount of MOLYKOTE
(EM-30LP)
to the gear tooth tops.
Link-Liftup-R
