1. CONFIGURATION

1.5.2 Network interface speciﬁcations

1.5.2.1 Network interface overview

Basic speciﬁcations

Network protocols (*: for C321/C331/C531)

TCP/IP spec. Network layer

ARP, IP, ICMP, IPv6*, IPSec*

Transport layer

TCP, UDP

Application layer

LPR, Port9100, FTP, HTTP, HTTPS*, IPP, SNMPv1, SNMPv3*,

TELNET, DHCP/BOOTP, DNS, DDNS, WINS, UPnP, Bonjour,

SNTP, SMTP, POP*, Windows Rally (WSD Print, LLTD)

NBT/NetBEUI*: SMB, NetBIOS, NetBIOS over TCP

NetWare*: Remote printer mode (maximum eight print servers)

Print server mode (maximum eight file servers, 32 queues)

Support of encrypted passwords (in print server mode)

NetWare 6J/5J/4.1J (NDS, bindery)

SNMP

EtherTalk*: ELAP, AARP, DDP, AEP, NBP, ZIP, RTMP, ATP, PAP

IEEE 802.1X*: EAP-TLS, PEAP

(2) Cable

Non-shield twisted-pair cable with RJ-45 connector (Category 5 recommended)

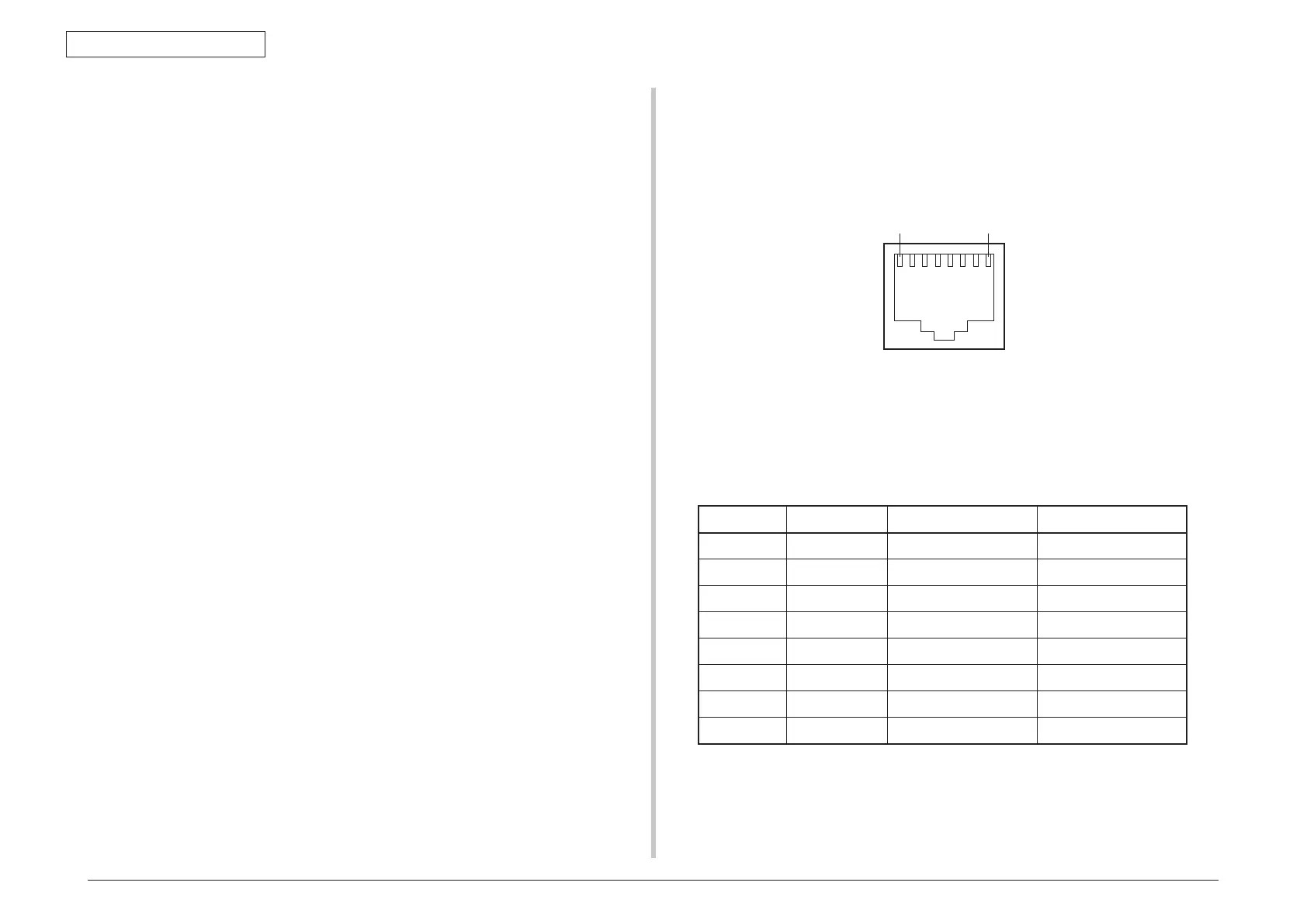

1.5.2.3 Network interface signals

Pin No. Signal name Direction Function

1 TXD+ FROM PRINTER Transmitting data +

2 TXD- FROM PRINTER Transmitting data -

3 RXD+ TO PRINTER Receiving data +

4 − − Not in use

5 − − Not in use

6 RXD- TO PRINTER Receiving data -

7 − − Not in use

8 − − Not in use

1.5.2.2 Network interface connector and cable

(1) Connector

100BASE-TX/10 BASE-T (automatically switched, not usable simultaneously)

Connector pin arrangement
