8. CONNECTION DIAGRAMS
8.1 Resistance value checking

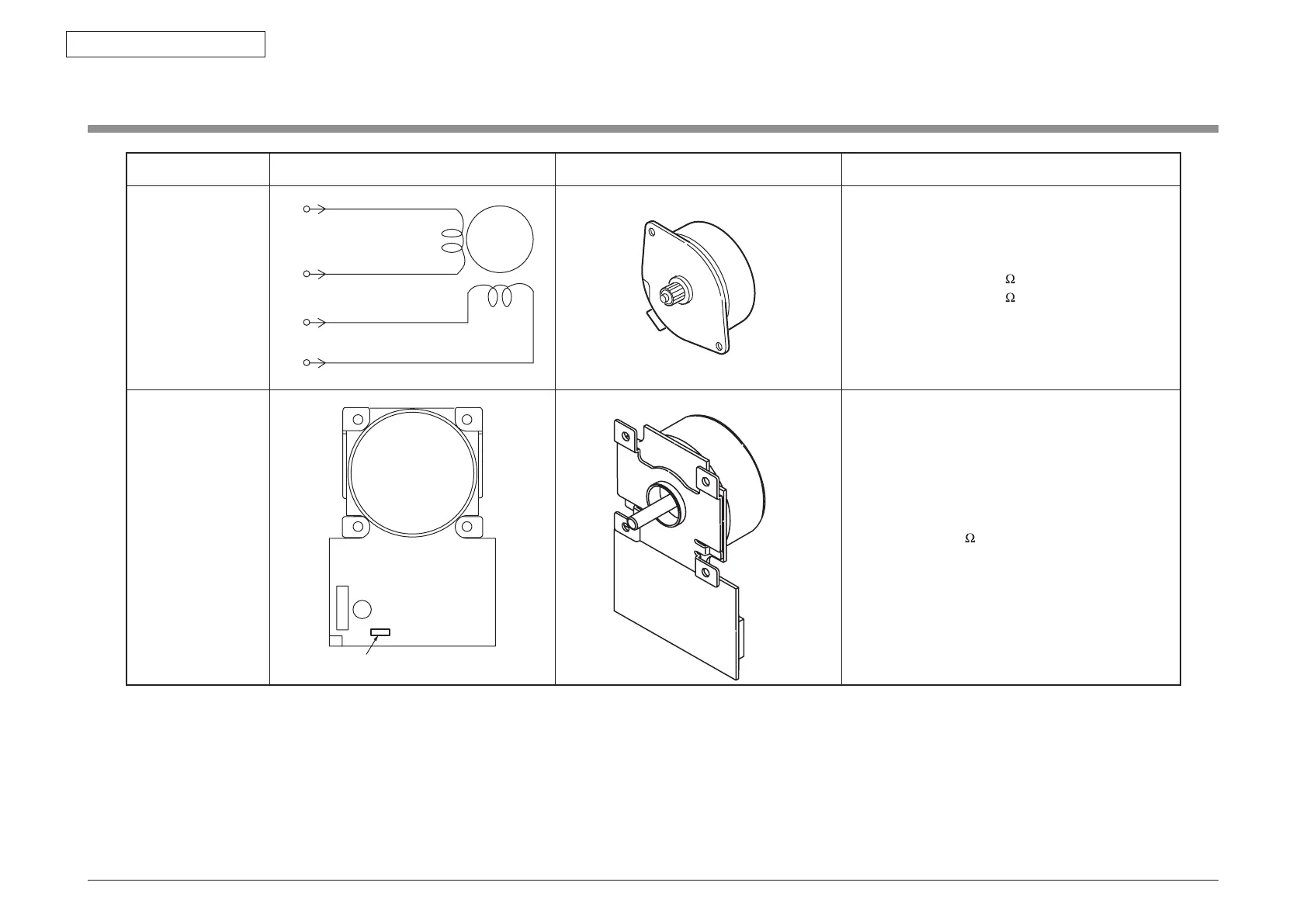

Unit Circuit diagram and composition Part drawing Resistance value
Transport belt motor
M
1
2
3
4
Between pins 1 and 2: 3.4
Between pins 3 and 4: 3.4
ID motor
IP2
Both ends of IP2: 1 or less
