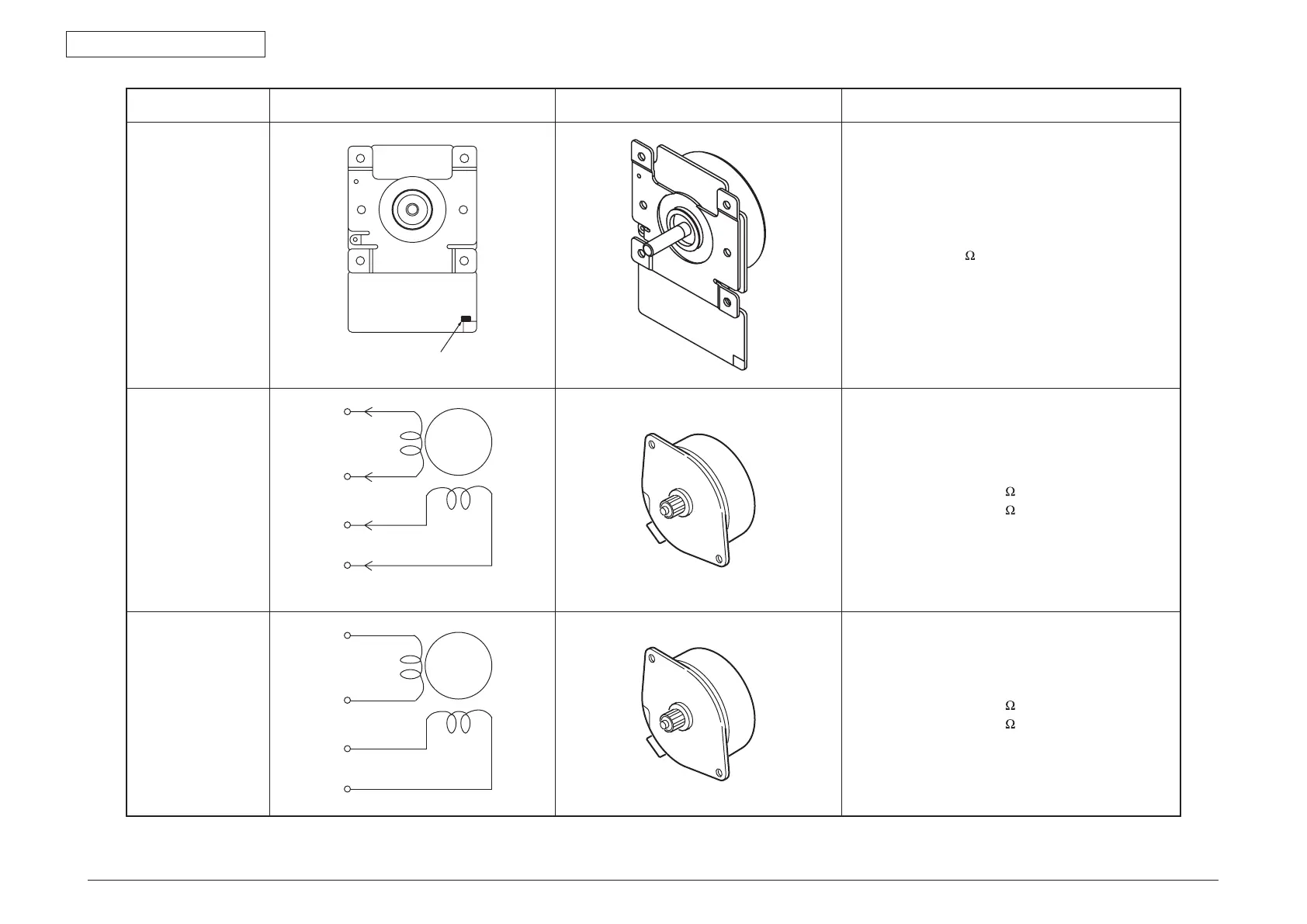

8. CONNECTION DIAGRAMS
Unit Circuit diagram and composition Part drawing Resistance value
Fuser motor
IP1
Both ends of IP1: 1 or less
Feed motor
M
1
2
3
4
Between pins 1 and 2: 3.4
Between pins 3 and 4: 3.4
2nd feed motor
M
1
2
3
4
Between pins 1 and 2: 3.4
Between pins 3 and 4: 3.4
