Oki C531 - Operator Panel Assembly; Board IBB and LCD

44951501TH Rev.2
4-11
Oki Data CONFIDENTIAL
4.REPLACEMENT OF PARTS

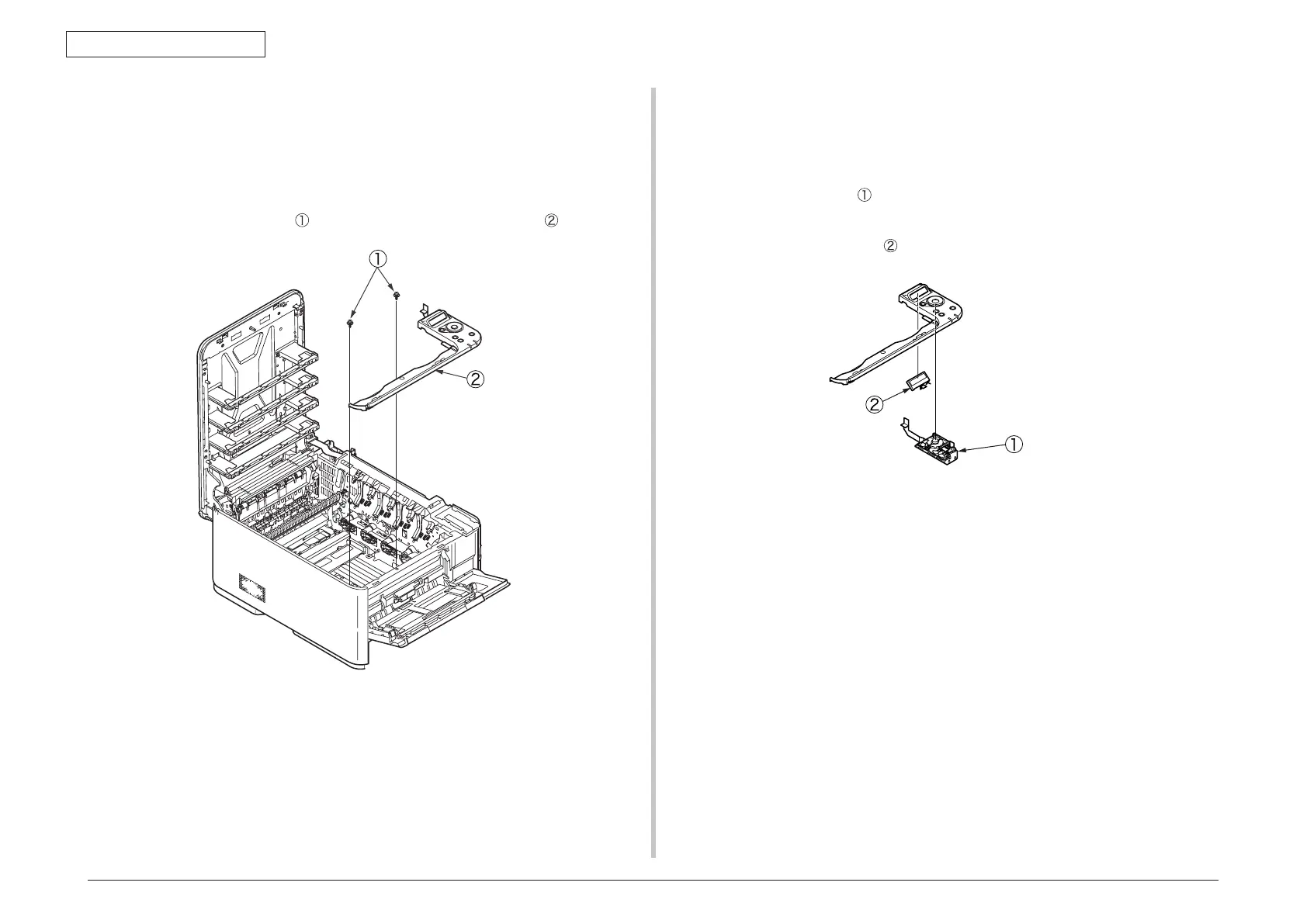

4.2.12 Operator panel assembly
(1) Remove the right side cover and plate shield assembly.
(2) Remove the cable of the operator panel assembly.
* CU/PU PCB OPE connector
(3) Remove the two screws
to detach the operator panel assembly .
4.2.13 Board IBB and LCD
(1) Remove the operator panel assembly.
(2) Unlatch the three portions A.
(3) Detach the Board IBB
.
(4) Unlatch the two portions B.
(5) Detach the LCD assembly
.
