4.REPLACEMENT OF PARTS

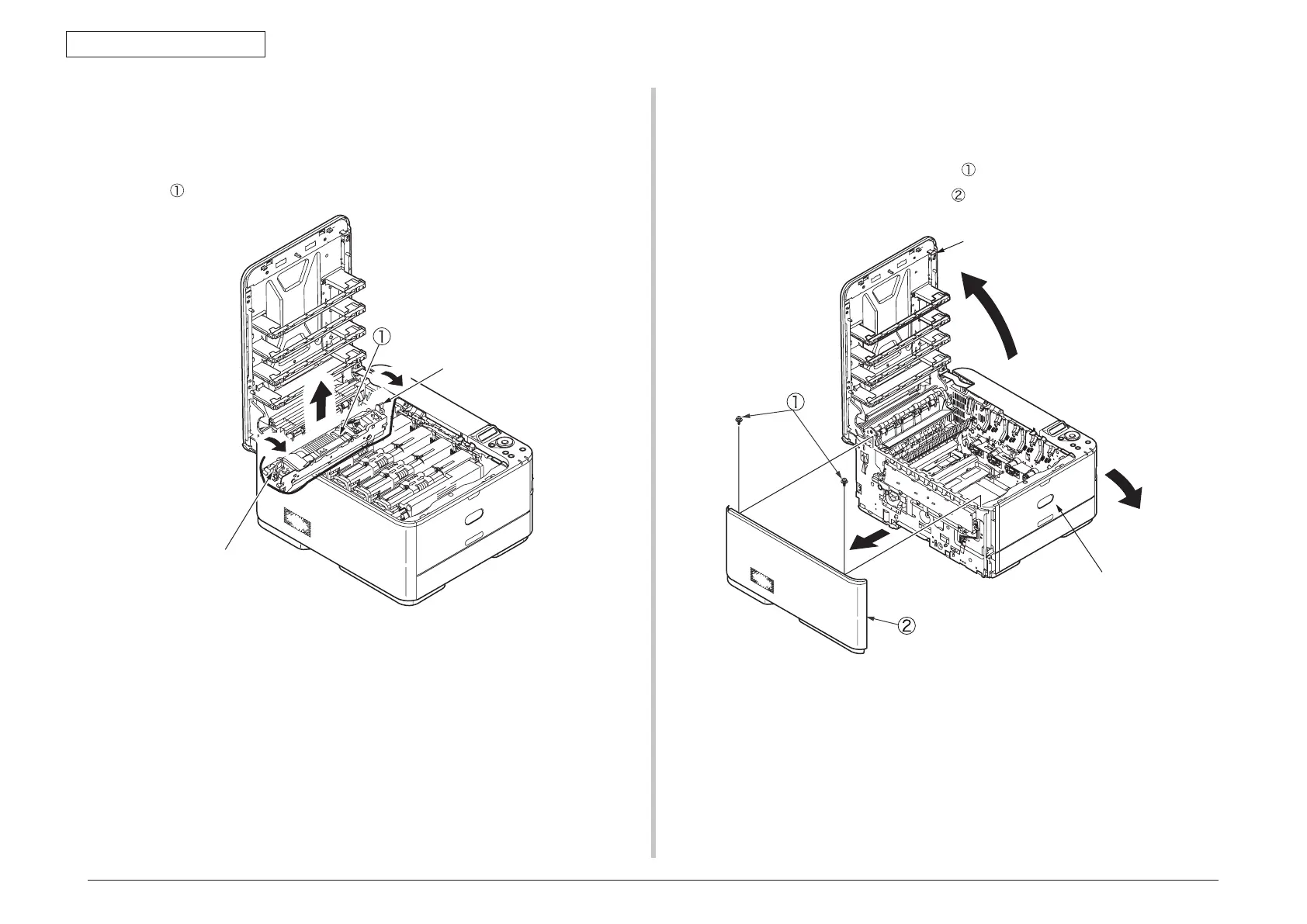

4.2.2 Fuser unit
(1) Open the top cover.
(2) Pull the (blue) fuser unit lock lever in the direction of the arrow and detach the fuser
unit
.
4.2.3 Left side cover
(1) Open the top cover.
(2) Remove the two (silver-colored) screws
.
(3) Unlatch and detach the left side cover
.
Fuser unit lock lever (blue)
Fuser unit lock lever (blue)
Feeder unit
Top cover
