2. DESCRIPTION OF OPERATION
(5) Ejection unit and paper ejection
(a) Face-down ejection
Face-down ejection is available when the face-up tray is closed.
In that state, the separator FU is fixed in the direction illustrated in Figure
2-5, and the face-up tray detection sensor is enabled.
As the fuser motor runs (counterclockwise), the eject rollers and the heat
roller start rotating, and printed paper is ejected with its face down.
(b) Face-up ejection
Face-up ejection is available when the face-up tray is open.
In that state, the separator FU is fixed in the direction illustrated in Figure
2-6, and the face-up tray detection sensor is disabled.
As the fuser motor runs (clockwise), the eject rollers and the heat roller
start rotating, and printed paper is ejected with its face up. (When face-up
ejection is enabled, duplex printing is not available.)
Face-up tray
detection sensor
Face-up tray
detection sensor
Eject roller (drive)
Fuser unit
Fuser motor
(counterclockwise)
Separator FU
Eject roller (drive)
Fuser unit
Heat roller (drive)
Heat roller (drive)
Fuser motor
(clockwise)
Separator FU

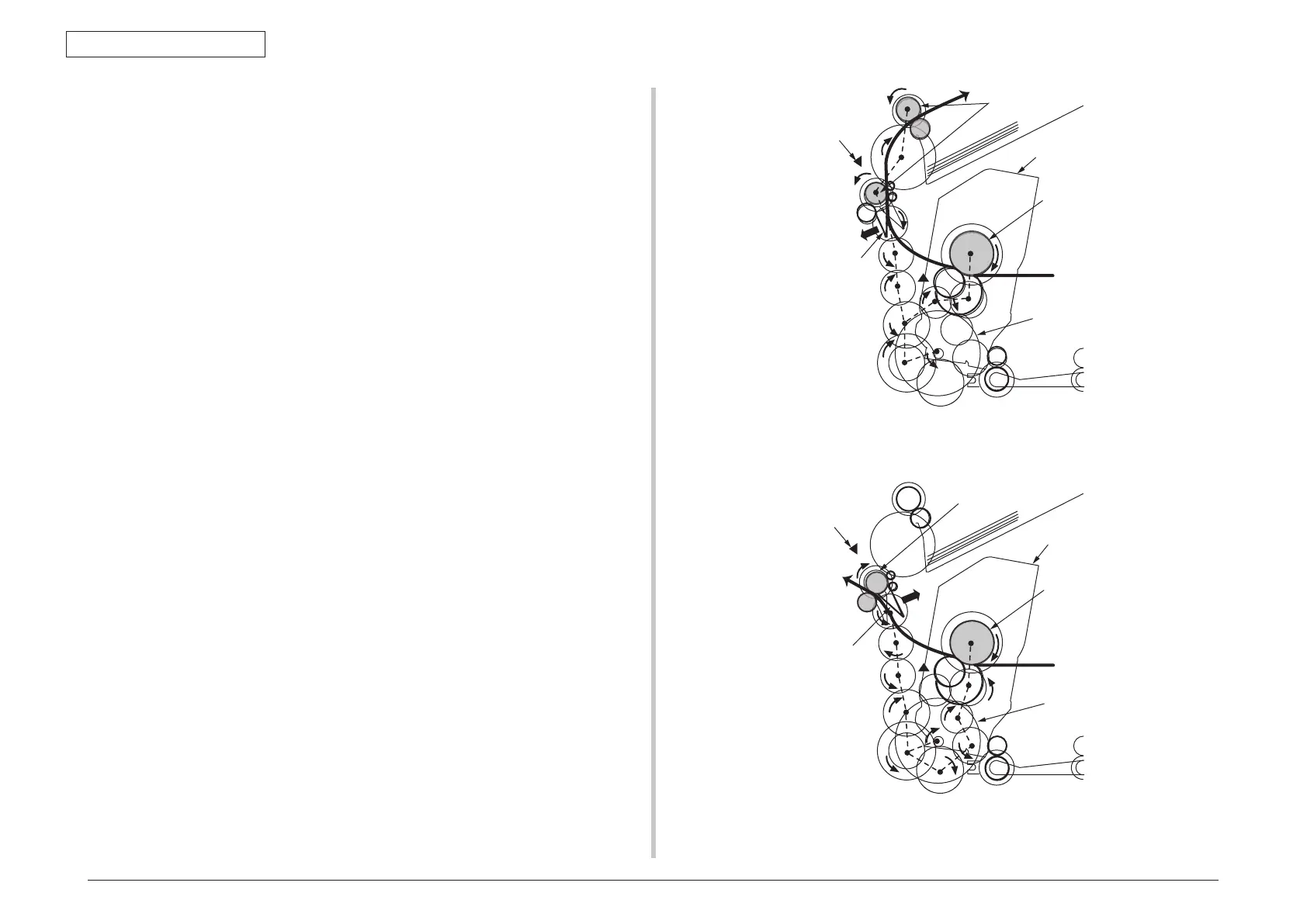

Figure 2-6
Figure 2-5
