Oki C532dn - Page 106

- 106 -
6. Troubleshooting
8

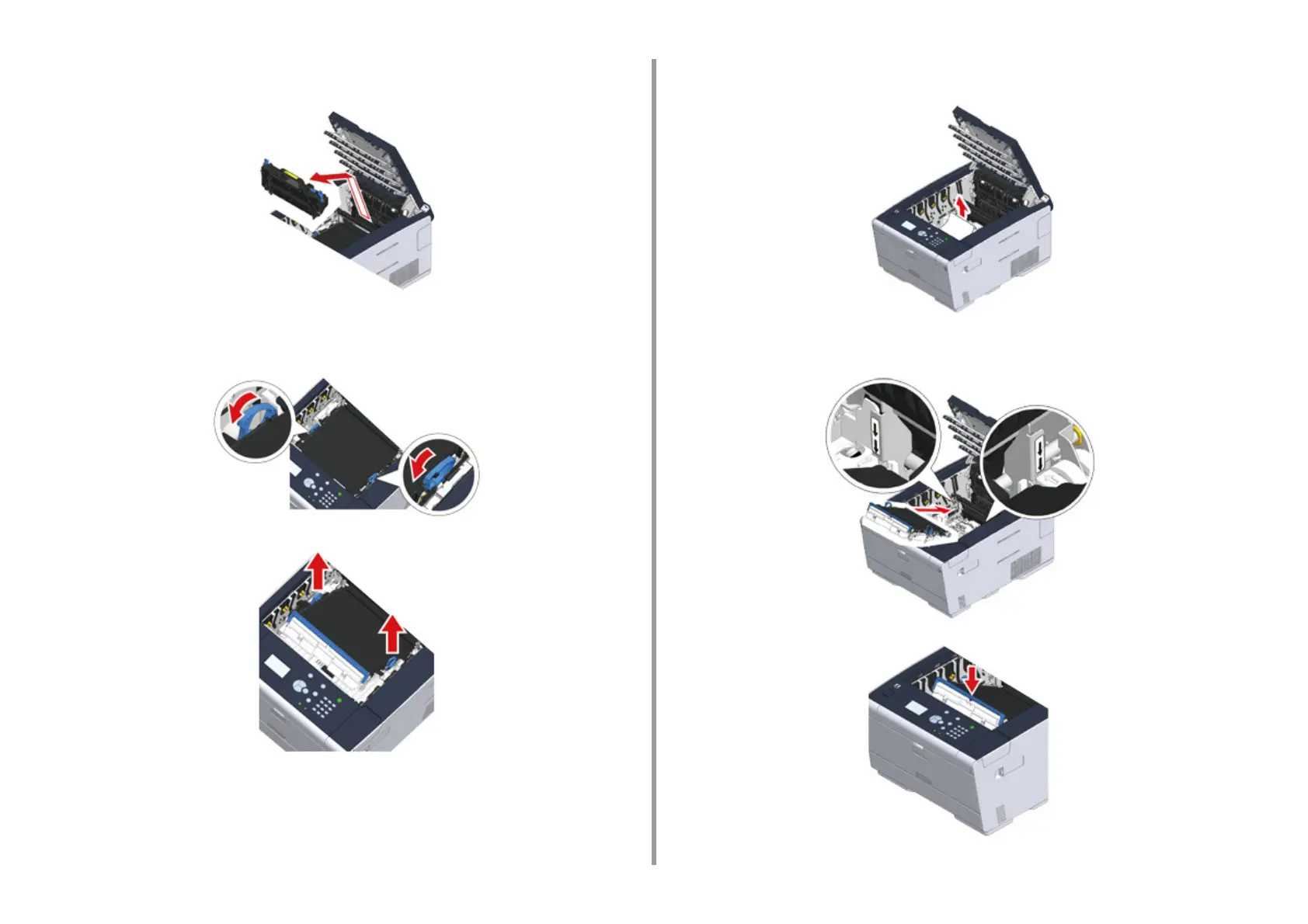

Hold the fuser unit handle and lift the fuser unit out of the machine.
9
Tilt the lock levers on the both sides of the belt unit toward you and remove the
belt unit by holding the lock levers.
10
Remove the jammed paper slowly by pulling the edge of paper.
11
Hold the lock levers of belt unit and place the belt unit into the machine.
