Maintenance > 58

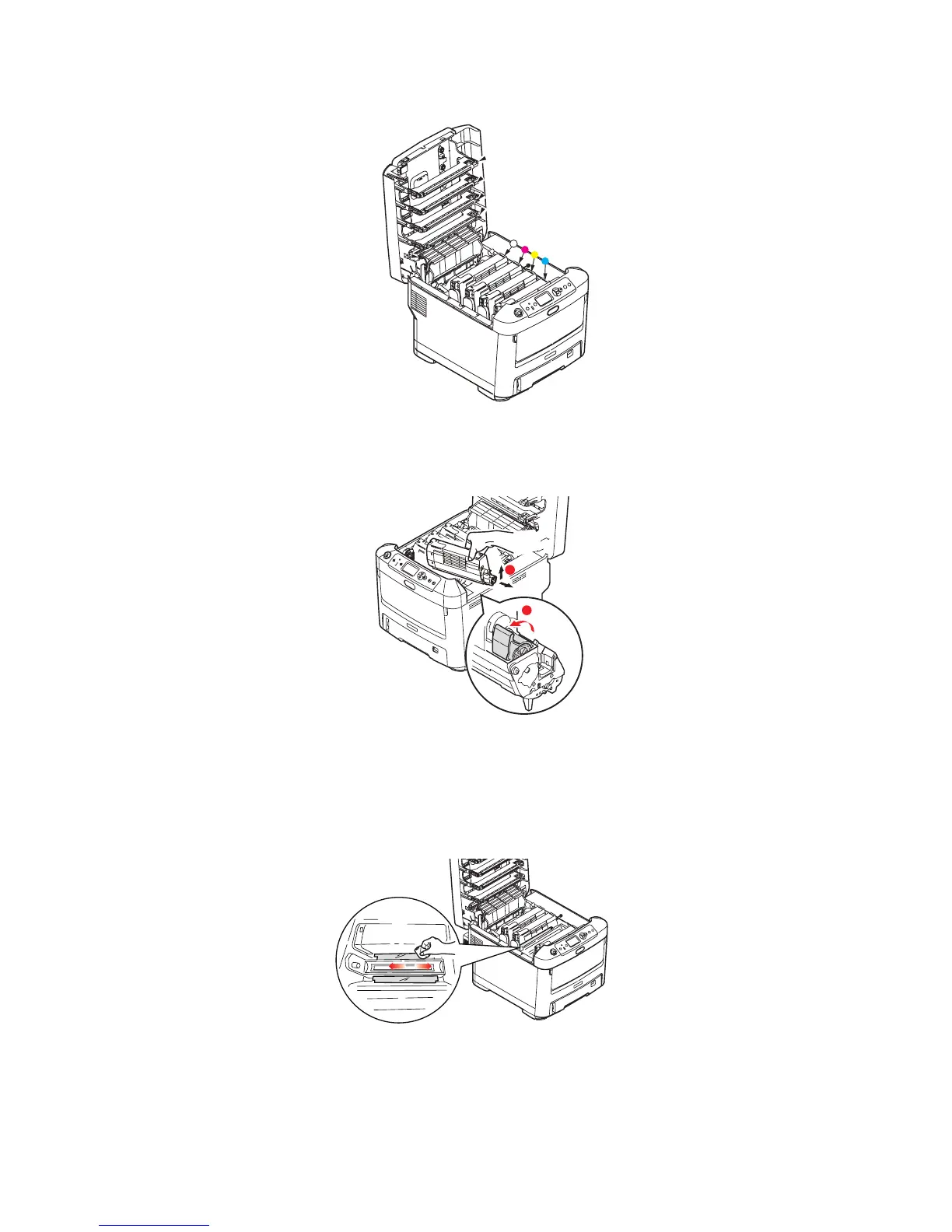

2. Note the positions of the four cartridges.
(a) Pull the coloured toner release lever on the cartridge to be replaced fully
towards the front of the printer.
(b) Lift the right-hand end of the cartridge and then draw the cartridge to the right
to release the left-hand end as shown, and withdraw the toner cartridge out of
the printer.
3. Put the cartridge down gently onto a piece of paper to prevent toner from marking
your furniture.
4. Clean the top of the ID unit with a clean, lint free cloth.
5. Remove the new cartridge from its box but leave its wrapping material in place for
the moment.
1. White cartridge 2. Magenta cartridge
3. Yellow cartridge 4. Cyan cartridge
6
1
2
3
4
2b
2a
