Troubleshooting > 86

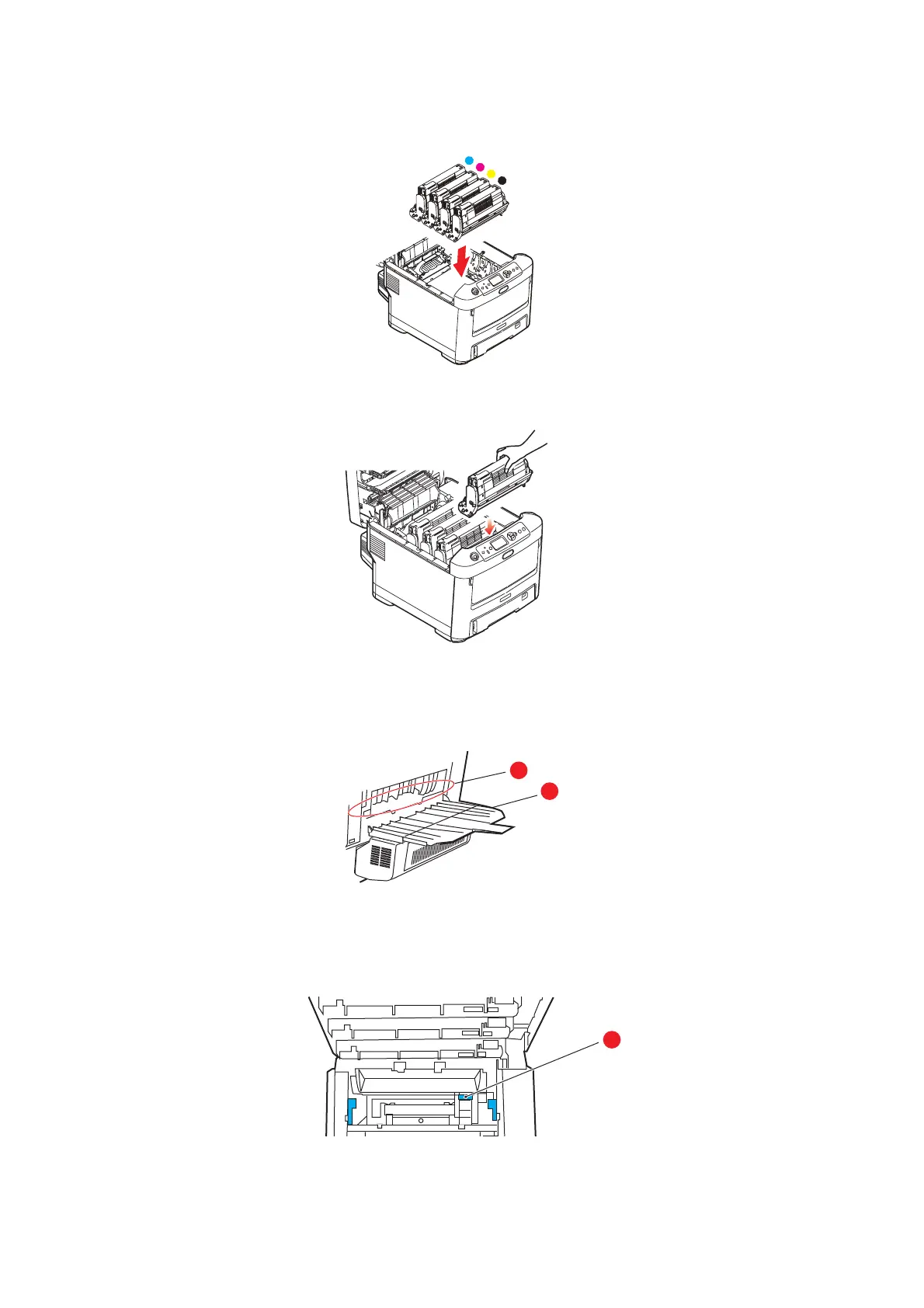

8. Starting with the cyan image drum unit nearest the fuser, replace the four image
drums into the drum cavity, making sure to locate them in the correct order.
Holding the complete assembly by its top centre, lower it into place in the printer,
locating the pegs at each end into their slots in the sides of the printer cavity.
9. Lower the output tray but do not press down to latch it closed yet. This will protect
the drums from excessive exposure to room lighting while you check the remaining
areas for jammed sheets.
10. Open the rear output tray (h) and check for a sheet of paper in the rear path area (i).
> Pull out any sheets found in this area.
> If the sheet is low down in this area and difficult to remove, it is probably still
gripped by the fuser. In this case raise the output tray, reach around and press
down on the fuser pressure release lever (d).
11. If you are not using the rear output tray, close it once any paper has been removed
from this area.
