8. Maintenance
7

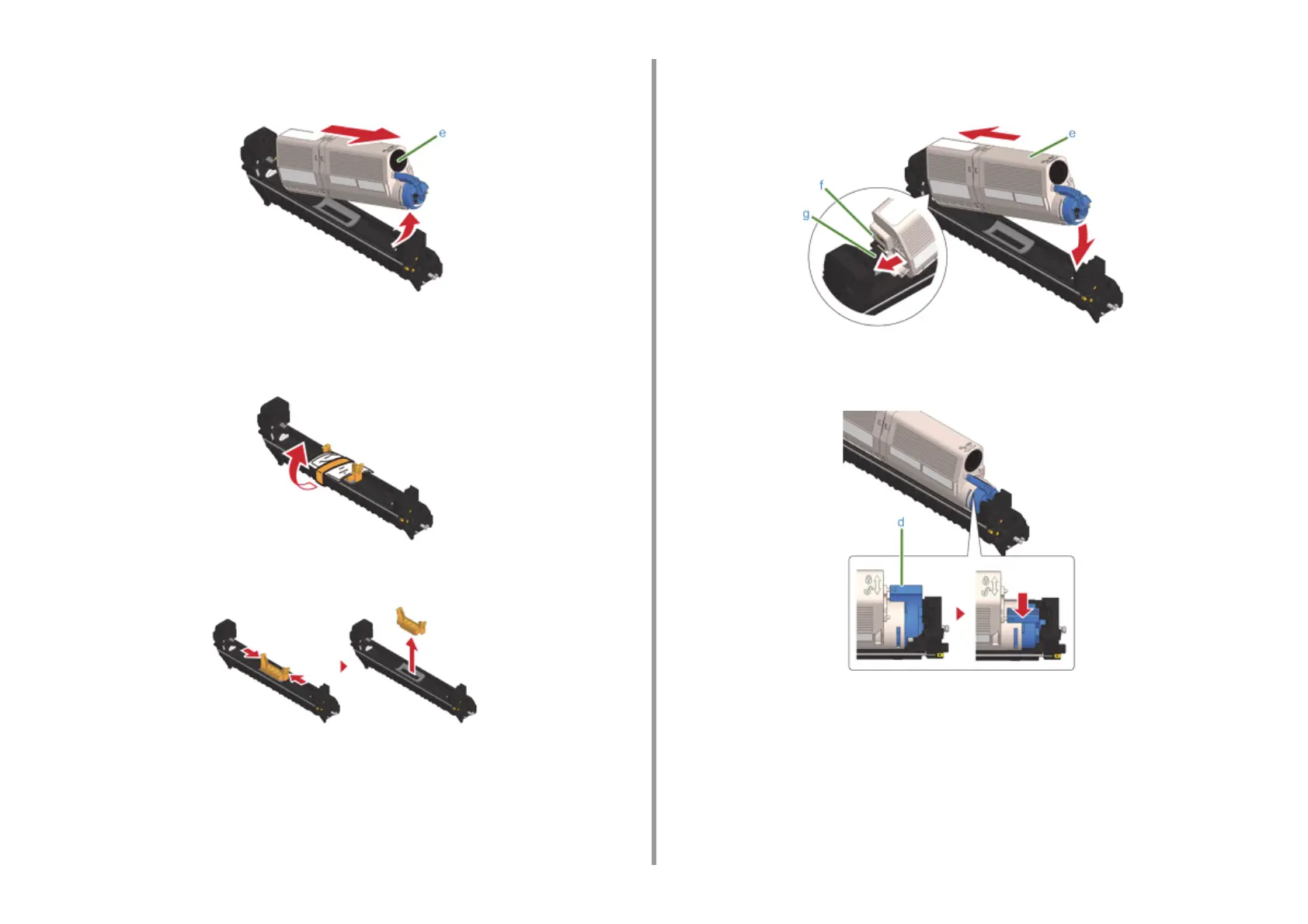

Lift the toner cartridge (e) from the right side, and remove it from the image
drum.
8
Unpack a new image drum and place it on a flat surface.
9
Remove the desiccant pack.
10
Remove the toner cover.
11
Insert the toner cartridge (e) removed in step 7 by aligning its left side
indentation (f) with the protrusion (g) on the image drum so that the toner
cartridge and image drum color label align. Then insert the right side gently
into place.
12
Hold the cartridge, pinch the tip of blue lever (d) of the toner cartridge, and turn
forward until the tip aligns on the lug of the cartridge.
