(3) LF motor control
The LF motor driver (MTD2005F) drives the LF motor in two-phase or 1-2 phase bipolar,
based on the phase changeover data and the output current data from the LSI.
The data from the LSI is processed by a specific register contained in the LF motor driver
to measure the overdrive time and to change the phase.

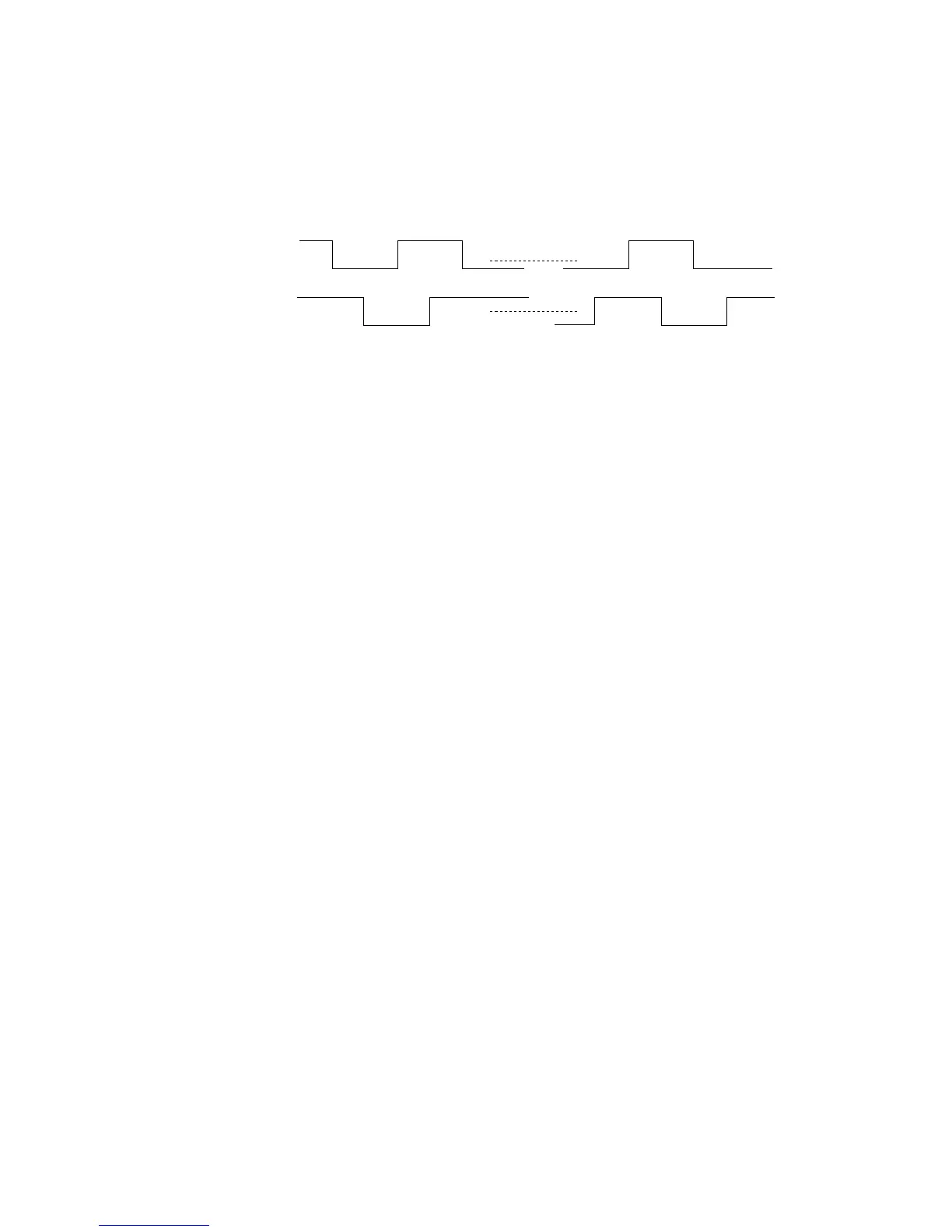

[FORWARD]
PHASE-B
[REVERSE]
PHASE-A
