3 – 15

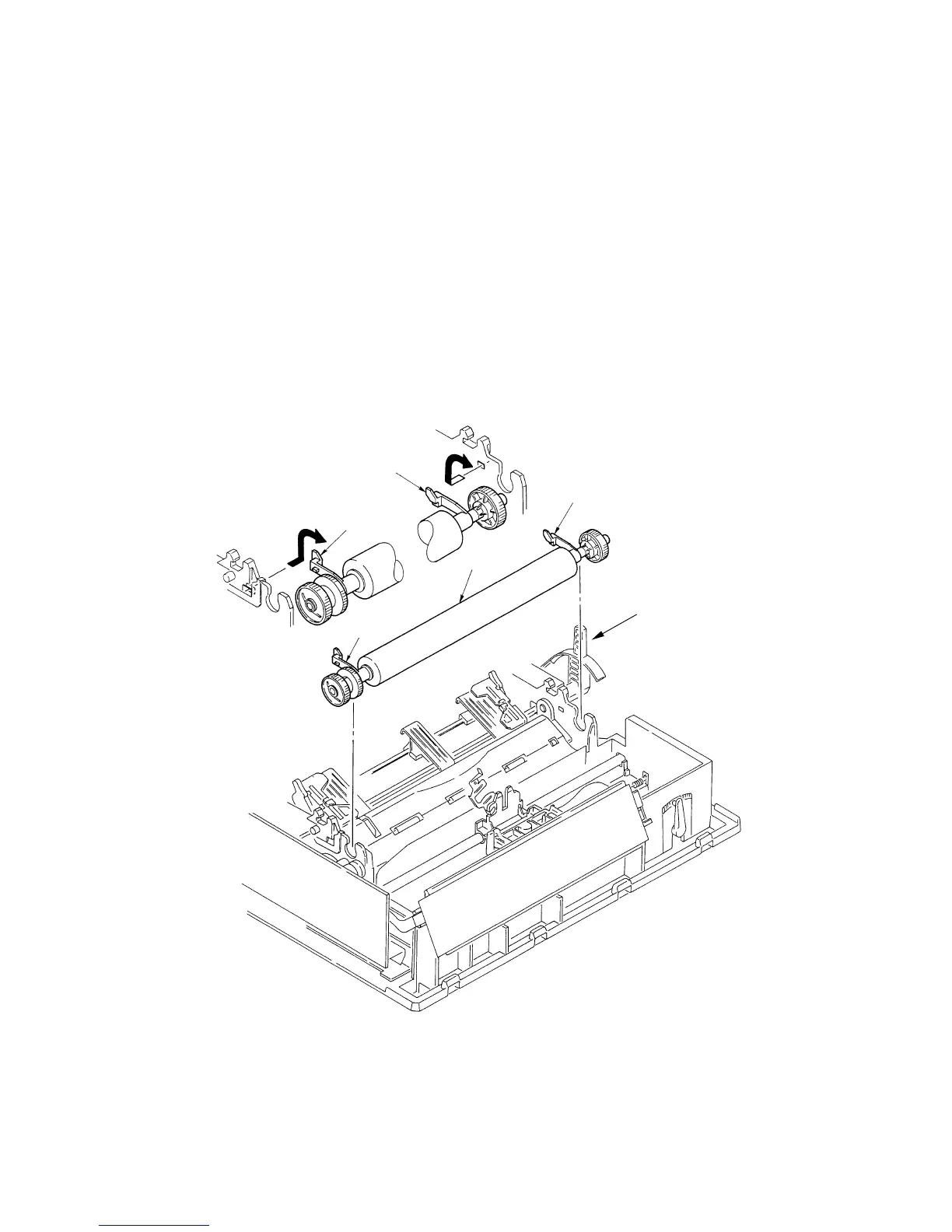

3.3.11 Platen Assy
(1) Remove the printhead (see 3.3.1).
(2) Remove the ribbon protector (see 3.3.2).
(3) Remove the pull-up roller Assy (see 3.3.3).
(4) Remove the upper cover (see 3.3.1 (1) – (5)).
(5) Turn the change lever 1 to the bottom position.
(6) Push in the lock levers 2 on both sides to unlock from the frame, then rotate them upward
by 90°.
(7) Remove the platen Assy 4 from base frame.
(8) To install, follow the removal steps in the reverse order.
1
2
2
2
2
4
