Oki Microline 520 - Gap Adjust Control; Print Compensation Control

Gap Adjust Control
The Gap Adjust LSI receives stroke
length information for all of the
printhead pins from the sensor
analog circuit. The Gap Adjust LSI
then sets the optimum printhead gap
for the printing medium.
NOTE:
Refer to Section 2.2.03 for a
decription of the mechanical
process.

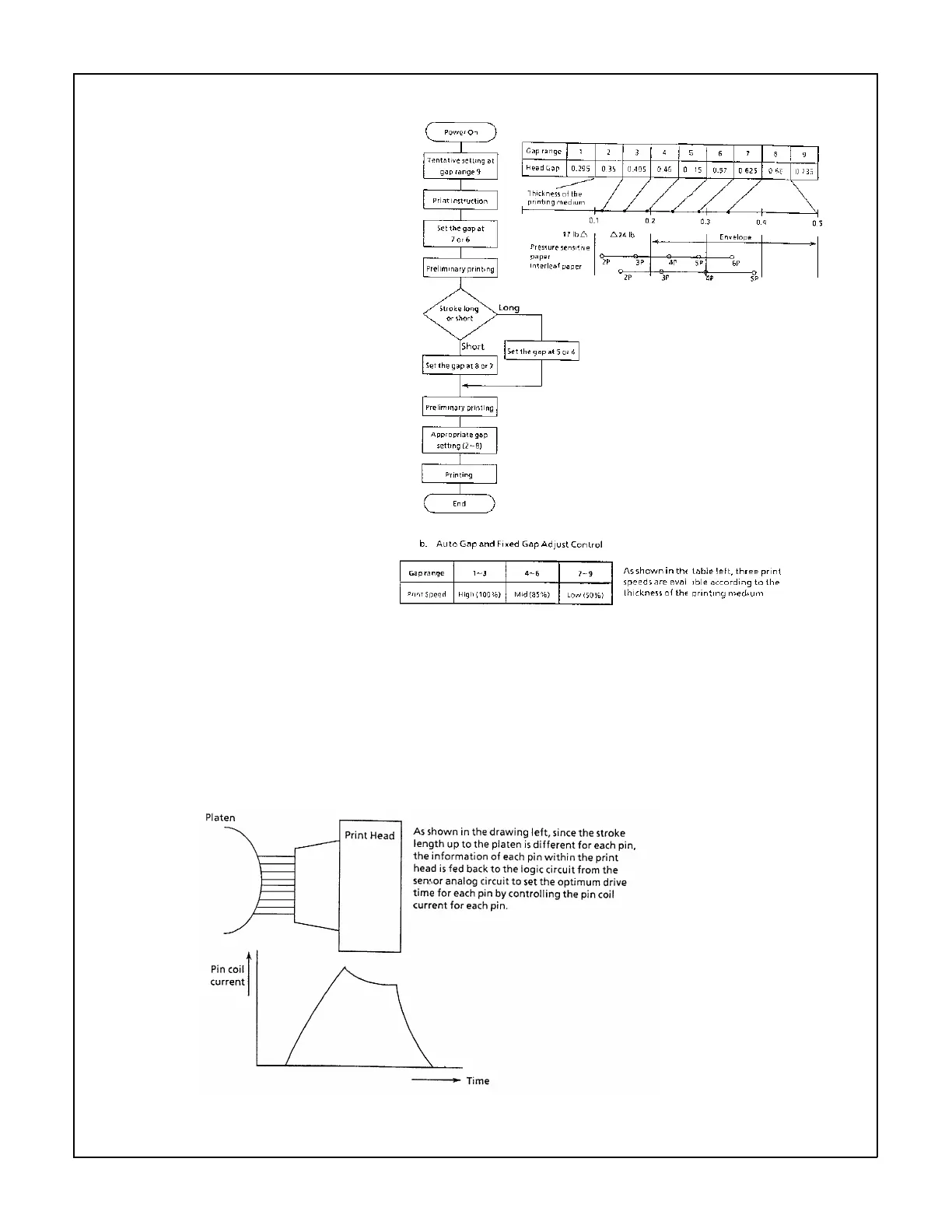

All values in the below chart
are in millimeters
Print Compensation Control
The printhead compensates for the shape of the platen as shown below.
NOTE:
Also refer to Section 2.1.07 - Head Drive Time
2-1-04c.tif
2-1-04d.tif
Microline 520/521 Service Handbook 2 - 9 Principles of Operation
P/N 59257803
