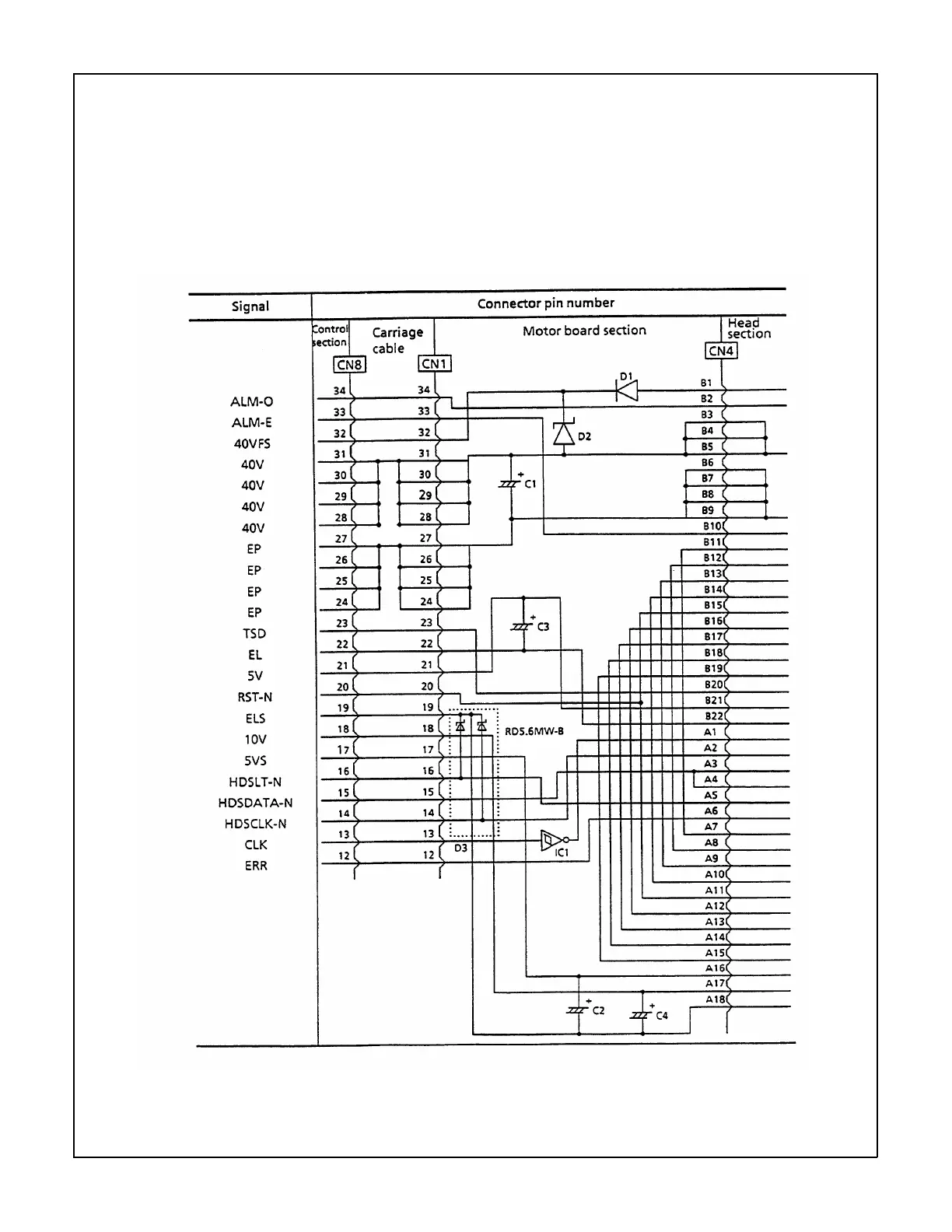

Interconnect Diagram: Control Board to Printhead
NOTE:
The printhead coil resistance values ARE NOT LISTED.
The individual printwire control lines CANNOT be accessed on this printhead.
2-2-01b.pcx
Principles of Operation 2 - 20 Microline 520/521 Service Handbook
P/N 59257803
